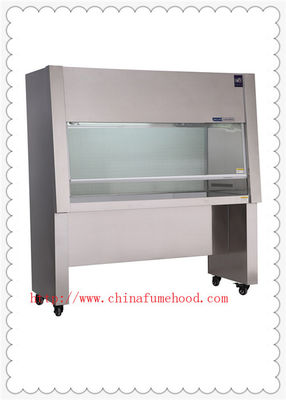

Single - Person Clean Room Equipment Laminar Air Flow Clean Bench

Single - Person Clean Room Equipment Laminar Air Flow Clean Bench

Brand Name: SUCLAB
Model Number: Standard
MOQ: 1 pcs
Price: negotiation
Payment Terms: TT LC, Western Union
Supply Ability: more than 10000 pcs per month
Detail Information
Place of Origin:
China
Certification:
SEFA SGS ISO9001 ISO14001 OHSAS
Filter:
Hepa
Cleanness:
Class 100
Application:
100 Lab / Laboratory Clean Room, Pharmaceutical, Industrial, Medical Health / Lab, Clean Room
Material:
Stainless Steel, Customized, SUS304#, SUS201,
Size:
Standard
Usage:
Pharmaceutical Factory Or Laboratory, High Cleanliness, Purification Engineering Design Clean Rooms
Hepa Filter:
H13 H14, Efficiency≥99.999% At 0.3um, 99.99%@0.3um, 99.999% Efficiency @ 0.3μ
Type:
Cleanroom, Modular Designs, Air Filter Unit
Packaging Details:
Export Packing
Supply Ability:
more than 10000 pcs per month
Highlight:

class ii a2 biosafety cabinet

,

cleanroom pass through box

Product Description

304 Stainless Steel Clean Room Equipment Laminar Air Flow Clean Bench Laboratory Horizontal Laminar Flow Clean Bench

 A.PARAMETER LIST:
Parameter List

SW-CJ-1G
SW-CJ-2D
SW-CJ-2F
External Dimension (W*D*H)(mm)
850*580*1600
1150*500*500
1360*600*520
Internal Dimension (W*D*H)(mm)
700*450*500
1300*580*1600
1540*680*1600
HEPA Filter Specification
695*450*50MM
1150*455*50MM
1360*558*50MM
Cleanliness

Air Velocity (m/s)
0.25~0.45
Noise (dB(A))
≤62
Illuminance
(Lx)
≥300
Rated Power (W)
250
250
250
Applied Person and Side

Single-person and single-side
Single-person and single-side
Case Material
Powder coated steel plate and SUS304 work table
Power Supply
AC220/110V,single phase,50/60Hz(Optional)
Weight(kg)
85
105
110
B. Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SUCLAB
Warranty:
3 YEAR
After-sales Service Provided:
Online support
Product name:
Laminar flow cabinet
External size:
1540*680*1600
Internal size:
1360*558*520
HEPA Media size:1360x1220x50 mm
Purifying class:
100
Average Air flow:
0.25-0.4
Noise:
<61 db
Illumination:
>=300LX
Rate:
230 W































C. Product features:



1. Less vibration: The integration vertical clean bench adopts airflow forming principle of vertical unidirectional airflow, and combines the low noise centrifugal fan, the plenum chamber and the HEPA filter into a unit structure. Adopts high quality fan in low vibration.
2. Filter exchange intelligent reminder: Assembling manometer to indicate differential pressure, it can remind when to renewal the HEPA filter.
3. Low noise, maintenance free: Adopt adjustable air system which has little shock, stable, low noise, maintenance free and stable.
4. Rust and corrosion protection material: The cabinet is cold rolled steel with powder coated and the table-board is sand light stainless steel. Adopted glass baffle, LED show, electronic control board and touch switch in two sides.



Application:

Widely used in scientific research and production department which needs clean sterile working environment in local, such as medicine, bio-pharmaceutical, foodstuff, medical experiment, optics, electron, sterile laboratory, sterile microbial inspection, plant tissue culture etc
