| Place of Origin: | Guangdong,China(Mainland) |
| Brand Name: | SUCLAB |
| Certification: | ISO 9001,ISO 14001,OHSAS 18001 |
| Model Number: | HUAZHIJUN-685 |

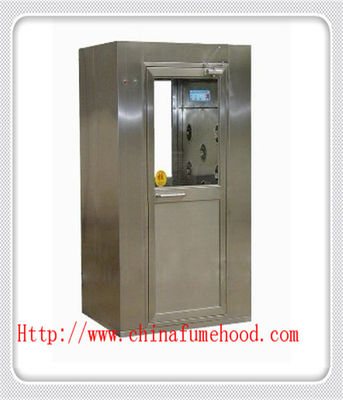

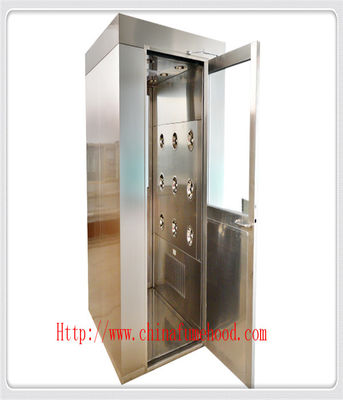

GMP industrial cleanroom air shower
Air Shower clean room adopts an air blow method to remove the dust off the staff and objectives, limits the invasion of dust. Meanwhile, the Stainless Steel air shower room works as the gas-tight room preventing from the invasion of the dirt, secures purification level for the cleanroom. The centrifugal fan integrated into the air shower room blows air flow through primary, HEPA filter through nozzles, which could be spun 360º. After particles are removed, the air flow will recycle back to the air shower room. In order to ensure the performance, One person air shower room guarantees a minimum of 23m/s wind speed, default air shower time is 10 seconds.
| Model No. | SUCLAB 01 | SUCLAB02 | SUCLAB 03 | SUCLAB04 |
| Model Name | Single Person One Side Blowing | Single Person Double Side Blowing | Double Person Double Side Blowing | Goods Shower |
|
Dimension W*D*H(mm) |
1300*1000*2050 | 1500*1000*2050 | 1500*2000*2050 | 2200*2000*2050 |
|
Air Shower Dimension W*D*H(mm) |
800*920*1915 |
800*920*1915 |
800*1920*1915 |
1500*1920*2000 |
| Fan | 195#-1 Set | 195#-2 Set | 240#-2 Set | 240#-2 Set |
| Fan Power | 450w | 450w | 1100w | 1100w |
| Nozzle | 6 PCS | 12 PCS | 24 PCS | 24 PCS |
| Lighting | 1 Set | 1 Set | 2 Set | 2 Set |
| Pre-Filter | 1 Set | 2 Set | 4 Set | 4 Set |
| HEPA Filter | 1 Set | 2 Set | 4 Set | 4 Set |
|
Average Wind Speed(m/s) |
25m/s±15% | 25m/s±15% | 25m/s±15% | 25m/s±15% |
| Air Shower Time | 0~99s(Adjustable) | |||
| Material | Cold Plate Static Plastic Spraying,SUS201#,SUS#304,SUS316# | |||
| Door |
Stainless Steel Door(Tempered glass Or Transparent Acrylic Sheet)+ Door Closers
|
|||
| Locking | When Air Shower Operating Both Door Is Locked. When One Door Is Opened, The Other Stay Closed. | |||
| Power Supply | 380V/50Hz And 220V/50Hz | |||
| All Model Can be Customize | ||||
Air Shower Features:
All Model Can Be Customized.
