| Place of Origin: | china |
| Brand Name: | SUCLAB |
| Certification: | SEFA SGS ISO9001 ISO14001 OHSAS |
| Model Number: | standard |
Quiet, reliable, permanently lubricated direct drive centrifugal blowers.
Long-life ULPA filter for supply airflow.
Sterile work zone environment created for optimum product protection.
Available in single, double, 1.2 and 1.8 meter (4’ and 6’) models.
Multiple units may be connected for production line applications.
Units are floor mounted with stainless steel work surfaces isolated from the main frame to reduce vibration.

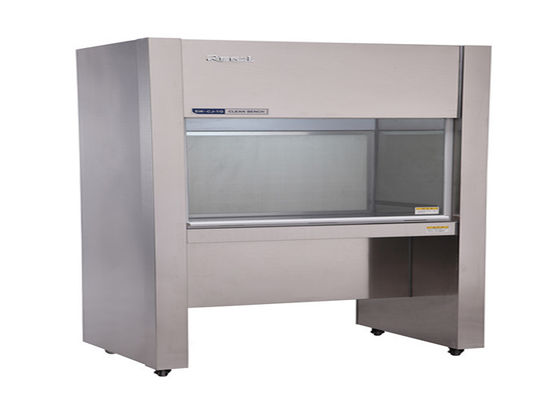

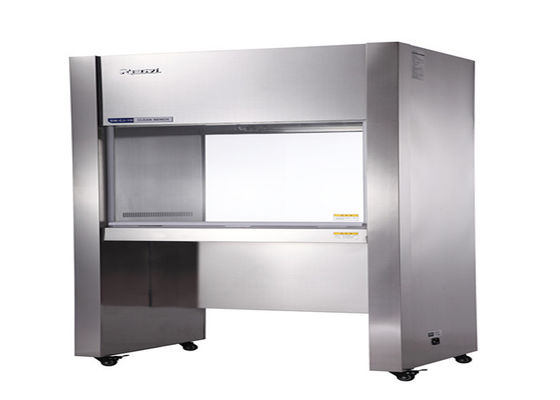

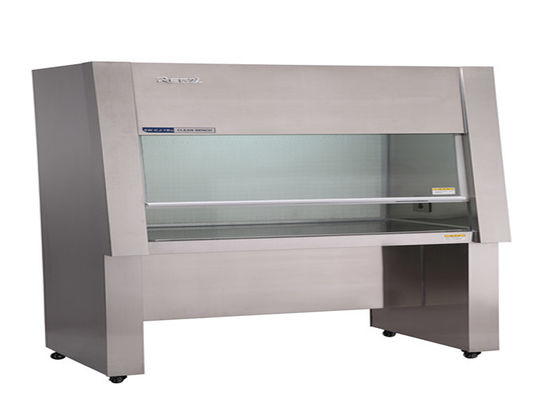

Clean bench can create a clean area with relatively high level of cleanliness with high efficient air filtering unit. It is suitable for clean rooms with low level of cleanliness yet requires a high level of cleanliness in certain given areas. This equipment reduces cost in initial investment and operating cost compared with building clean rooms.
Structural features:
1, Purification table is a vertical, horizontal laminar flow of local air purification equipment. Indoor air through the pre-filter early filter, by a small centrifugal fan into the static pressure box, and then through the air-efficient filter two filters from the air efficient filter out of the wind blowing clean air flow with uniform cross-section wind speed, you can rule out the work The original air, the dust particles and micro-organisms away to form a sterile high clean working environment.
2, the equipment used in high-quality bending, assembled welding made of high-quality stainless steel workings for a bending forming. The air supply body is equipped with new non-woven pre-filter, ultra-fine glass fiber filter made of air efficient filter, small low-noise variable speed centrifugal fan and other electrical components. Equipment has a simple structure, beautiful appearance and so on.
3, the equipment using variable wind speed fan system, by adjusting the centrifugal fan input voltage, thus changing its working conditions, so that the wind surface of the average wind speed is always maintained within the ideal range, the effective extension of the main components of equipment - efficient The service life of the filter, and reduce the operating costs of the equipment. The device also has a UV sterilization device, completely destroyed attached to the wall in the studio, the corner of the residual micro-organisms.
Technical Parameters:
Name: Double double vertical air supply
Model: HZ2F
Cleanliness: 100 @ ≥0.5μm (USE 209E)
Number of colonies: ≤0.5 / dish (90mm Petri dish)
Average wind speed: 0.3 ~ 0.6m / sec ± 20%
Noise: ≤ 60dB (A)
Vibration half-peak: ≤ 0.3μm (x, y, z direction)
Illumination: ≥300Lx
Power supply: AC220V 50Hz
Maximum power: 380W
| Model | HZ1100 |
HZ1500 |
| External Size(W*D*H) | 1060*800*1690mm | 1460*800*1690mm |
| Internal Size(W*D*H) | 1040*500*650mm | 1440*500*650mm |
| Work Surface Height | 750mm | |
| Display | LED Display | |
| Airflow Velocity | Average of 0.3~0.5m/s | |
|
Material
|
Main Body: Cold-rolled steel with anti-bacteria powder coating | |
| Work Table:304 stainless steel | ||
| Side Windows:5mm toughened glass, anti-UV | ||
| Pre-filter | Polyester fiber, washable | |
| HEPA Filter | 99.999% efficiency at 0.3um | |
| Noise | <60dB | |
| Fluorescent Lamp | 21W*1 | 28W*1 |
| UV Lamp | 20W*1 | 30W*1 |
| Emission of 253.7 nanometers | ||
| Consumption | 320W | 620W |
| Waterproof socket | Two, total load≤500W | |
| Caster | Universal caster with leveling feet | |
| Power Supply | AC220V±10%; 50/60Hz; 110V±10%, 60Hz | |
| Standard Accessory | Fluorescent lamp, UV lamp*2,Base stand, Waterproof socket*2 | |
| Gross Weight | 150kg | 179kg |
| Package Size(W*D*H) | 1230*1000*1820mm | 1630*1000*1820mm |
Accessories:
Base stand 1pc
Fluorescent lamp 1pc
UV lamp 2pcs
Waterproof socket 2pcs
