The Lowest Price CleanRoom Bench Equipment

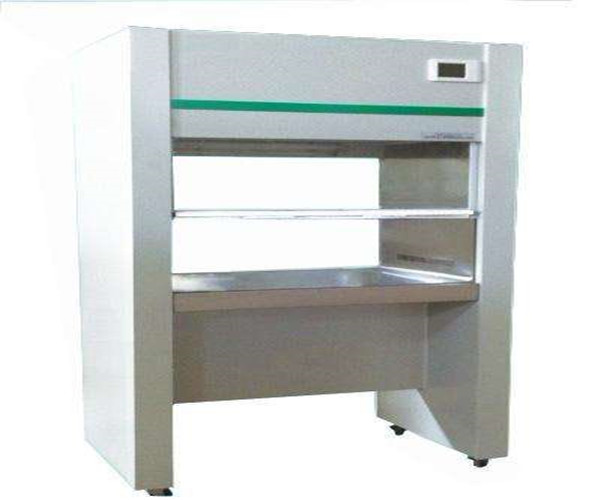

Suclab clean bench descriptions:
Horizontal clean bench makes the fan set horizontally.
The working noise of the product is lower than the vertical product. The product is produced with the outside dimension of 900×720×1420mm and the operational area dimension of 860×520×600mm. Three grades of air filtration can be conducted. For the air flow is horizontal, the product is often used for the electronic industry. The single person horizontal flow clean bench is equipped with one set of centrifugal fan featuring high air pressure and low working noise. The adopted ultra-thin baffleless high efficiency air filter allows the dimension of the plenum chamber to the lowest level. Then the size of the operational plate is much larger and the operational space is more spacious. The right and left sides of the product are 8mm thickened glass which makes the working area more spacious and brighter. Meanwhile, the high quality laminar flow equipment is applied for providing high clean environment.
As a China-based single person horizontal clean bench manufacturer, we also offer air curtain, open type clean cabinet, clean room HEPA filter, double person air shower room, and much more.
| Model | HZ680 | HZ800 | BBS1 | BBS2 | |||
|
External Size (W*D*H), mm |
680*410*1160 | 802*650*1550 | 1040*615*1770 | 1440*615*1770 | |||
|
Internal Size (W*D*H), mm |
630*375*615 | 800*600*540 | 940*540*545 | 1340*540*545 | |||
|
Work Surface Height |
/ | 660mm | 750mm | 750mm | |||
| Display | LED Display | ||||||
| Airflow Velocity | Average of 0.3~0.5m/s, air speed adjustable. | ||||||
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | ||||||
| Work Table: 304 stainless steel | |||||||
| Pre-filter | Polyester fiber, washable | ||||||
| HEPA Filter | 99.999% efficiency at 0.3um | ||||||
| Noise | <60dB | ||||||
| Front Window | / | Manual,5mm toughened glass, anti-UV | |||||
| Max Opening | / | 490mm | 350mm | 350mm | |||
| Fluorescent Lamp | 14W*1 | 14W*1 | 21W*1 | 28W*1 | |||
| UV Lamp | 15W*1 | 20W*1 | 18W*1 | 30W*1 | |||
| Emission of 253.7 nanometers | |||||||
| Consumption | 160W | 350W | 350W | 600W | |||
| Caster | / | Universal wheel with leveling feet | |||||
| Power Supply | AC 220V±10%, 50/60 Hz; 110V±10%, 60HZ | ||||||
| Standard Accessory |
Fluorescent lamp, UV lamp*2 ( for all models ) Water & gas tap (for model BBS-V680) Base stand (except model BBS-V680) |
||||||
| Gross Weight | 50kg | 116kg | 150kg | 174kg | |||
| Package Size (W*D*H), mm | 840*560*1380 | 960*800*1800 | 1190*890*1340 | 1590*890*1330 | |||
