Product Details
Place of Origin: Guangdong,China(Mainland)
Brand Name: SUCLAB
Certification: ISO 9001,ISO 14001,OHSAS 18001
Model Number: HUAZHIJUN-691
Payment & Shipping Terms
Minimum Order Quantity: 1 Pieces
Packaging Details: Normal Export Wood Cartons
Delivery Time: 15 Days After Receiving The Deposit
Payment Terms: EXW,T/T
Supply Ability: 10000 Pieces Each Month
Material: |
Full Steel Or 304 Stzinless ,steel |
Color: |
Wjhite |
Size: |
Standard Or Customized Made |
Application: |
100 Lab / Laboratory Clean Room, Pharmaceutical, Industrial, Medical Health / Lab, Clean Room |
Usage: |
Pharmaceutical Factory Or Laboratory, High Cleanliness, Purification Engineering Design Clean Rooms Floor Anti-static Floor Or EPOXY Floor Or PVC, PVC Floor, PVC/Epoxy Floor For Clean Room Color Clear, White, Off-white, Customized Size Customized, 855*550* |
Material: |
Full Steel Or 304 Stzinless ,steel |
Color: |
Wjhite |
Size: |
Standard Or Customized Made |
Application: |
100 Lab / Laboratory Clean Room, Pharmaceutical, Industrial, Medical Health / Lab, Clean Room |
Usage: |
Pharmaceutical Factory Or Laboratory, High Cleanliness, Purification Engineering Design Clean Rooms Floor Anti-static Floor Or EPOXY Floor Or PVC, PVC Floor, PVC/Epoxy Floor For Clean Room Color Clear, White, Off-white, Customized Size Customized, 855*550* |
Features of Air Shower Room:
1.Air shower room is when operators enter the clean room using personal purification device.
2. Air shower room:It uses a high-speed clean air shower to remove body dirt and adjust the nozzle into the room personnel effectively remove dust out of the man.
3. Air shower room :also plays a role in Airlock to prevent entering clean areas without clean air, and to prevent external contamination into clean areas.
4.Air shower room: Subjects are made of cold-rolled sheet spray plastic or stainless steel plate processing, and centrifugal fan configuration and initial efficiency and high efficiency air filters, with appearance of compact structure, easy maintenance, simple operation and so on.
5.By photoelectric sensing two door interlock switch, automatically opening and closing, and people (goods) in and out of convenience.
6.Air shower room control system adopts PLC control system.
Specifications of Air Shower Room:
|
Model |
Single Single Blow Air Shower |
Single Double Blow |
Double Double Blow |
|
Outside Dimension (mm) |
1290×1000×2050 |
1590×1000×2050 |
1590×2000×2050 |
|
Air Shower Area (mm) |
790×910×1930 |
790×910×1930 |
790×1910×1930 |
|
Air Velocity at the Nozzle |
15~20M/S |
||
|
Number of Nozzles |
6 Pieces(Single) |
12Pieces(Double) |
24Pieces(Double) |
|
Air Shower Time |
0~99s(Adjustable) |
||
|
Filter efficiency
|
≥99.99% |
||
|
Meterial |
1.2mm thickness cold-rolled plate,surface static electricity spurts models processing or 1.2mm stainless steel plate. |
||
|
The material and number of door |
Stainless steel single door*2 pieces |
||
|
The door of interlocked manner
|
Air shower double door lock, usually two-door electronic interlocking, can open a door. |
||
|
Power Supply |
380V |
||
|
Capacity |
1.2KW |
2.3KW |
4.6KW |
|
Weight |
~360KG |
~420KG |
~840KG |
|
Number of Users |
1~2 people |
1~2 people |
2~4 people |

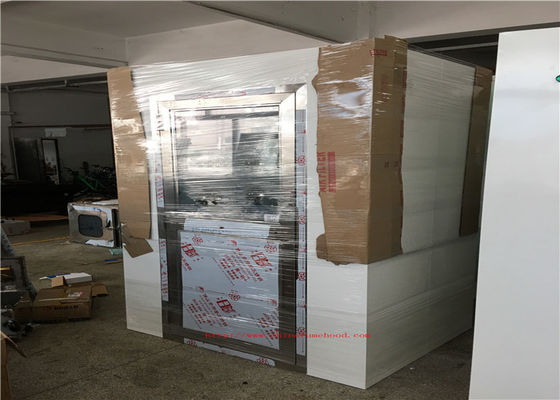

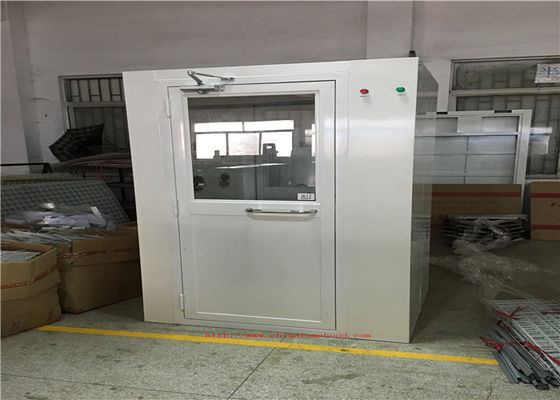

Photos of Air Shower Room:
