| Brand Name: | SUCLAB |
| Model Number: | standard |
| MOQ: | 1 pcs |
| Price: | negotiation |
| Payment Terms: | TT LC |
| Supply Ability: | more than 10000 pcs per month |

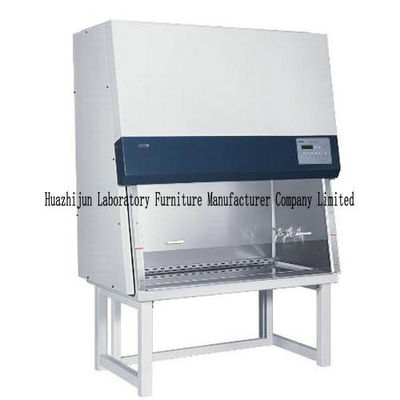

Features of Biosafety Cabinet Airflow:
1. Front window: when using optical perspective is clear, clean and disinfect does not negatively
impact burst-proof tempered glass, tempered glass production, glass thickness ≥ 5 mm.
2. Cabinet: four two-tier structure, all Studio and the collecting tank to use imports 304 stainless
steel materials.
3. Operations on three sides and side wall panels unibody structure, leave some space at the bottom,
easy to clean, to avoid cross infection.
4. Containment of the Cabinet: the cabinets pressurized to 500Pa, keep the air pressure is not lower
than 450Pa after 30min.
5. Cabinet stability: a countertop Center load 23kg unload, countertop must not bend downward.
6. Alarm system: safety Cabinet front window opening height exceeds a set level, decreased safety Cabinet flow velocity and flow fluctuation of air flow velocity in excess of their nominal value of 20%, the interlocking system startup, sound, light, sound and alarm.
7. Blower/motor maintenance and disassembly, replacement HEPA filters are available from all safety
cabinets.
8. HEPA filter integrity: scan filter at any point of the leak rate of less than 0.01%.
9. Cannot scan filters detect leak rate of less than 0.005% personal protection: percussive sampler
number ≤ 10CFU/.
Technical Parameters of Biosafety Cabinet Airflow:
|
Product name |
Biosafety Cabinet Airflow |
||
|
Index/type technical parameter |
HZJBSC－1100－LⅡB2 |
HZJBSC-1360－LⅡB2 |
HZJBSC-1800IIB2 |
|
Exhaust volume |
100% exhaust |
||
|
HEPA filter leakage ratio |
≤0.005% |
||
|
Wind speed |
Inflows flow average wind speed: >0.5M/s Downdrafts in average wind speed: 0.25-0.5 m/s |
||
|
Noise |
≤62dB(A) |
||
|
Semi-peak |
≤3μm(rms) |
||
|
Illumination |
≥700LX |
||
|
Display |
LCD + remote control |
||
|
Power supply |
Single AC 220V/50Hz |
||
|
Normal power consumption |
1.95kw |
||
|
Max power consumption |
2.95kw (including two spare socket 1000W) |
||
|
Weight |
310kg |
320kg |
340kg |
|
Workspace dimensions |
1220x600x680mm |
1360x600x680mm |
1800x600x680mm |
|
Device overall dimension |
1382x790x2210mm |
1525x790x2210mm |
1940x790x2210mm |
|
Air filter specifications and quantity |
1215x500x50mmx① |
1355x500x50mmx① |
1795x500x50mmx① |
|
Exhaust air filter specifications and quantity |
600x440x80mmx① |
740x400x90mmx① |
865x440x90mmx① |
|
Fluorescent lights/UV lamps specifications and quantity |
30w×②/30w×① |
40w×②/40w×① |
40w×②/40w×① |
|
The number of applicable |
Single double single |
Double single |
More than single-sided |
