Product Details
Place of Origin: China
Brand Name: SUCLAB
Certification: SEFA SGS ISO9001 ISO14001 OHSAS
Model Number: standard
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Export Packing
Delivery Time: 1 5working days
Payment Terms: TT LC
Supply Ability: more than 10000 pcs per month
Material: |
Metal |
Size: |
Standard |
Color: |
Grey White |
Voltage: |
220v |
Uv Lamp: |
15w *1 |
Airflow Velocity: |
>0.3m/s |
Material: |
Metal |
Size: |
Standard |
Color: |
Grey White |
Voltage: |
220v |
Uv Lamp: |
15w *1 |
Airflow Velocity: |
>0.3m/s |

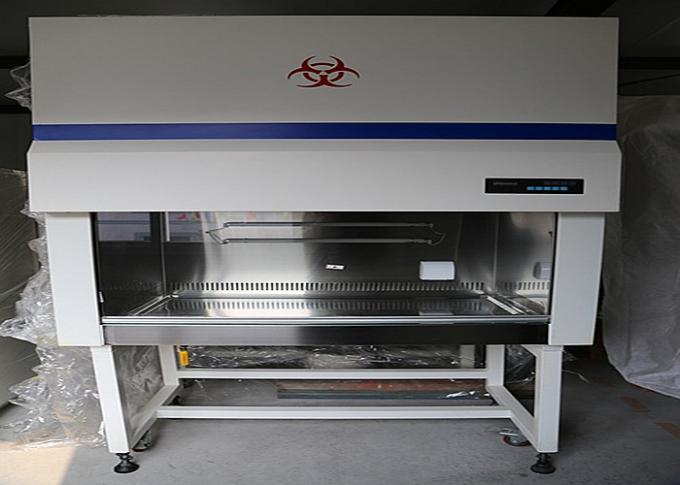

Clean Room Biological Safety Cabinet / Microbiological Safety Cabinet
Features of Benchtop Biosafety Cabinet:
1. Front window: when using optical perspective is clear, clean and disinfect does not negatively
impact burst-proof tempered glass, tempered glass production, glass thickness ≥ 5 mm.
2. Cabinet: four two-tier structure, all Studio and the collecting tank to use imports 304 stainless
steel materials.
3. Operations on three sides and side wall panels unibody structure, leave some space
at the bottom,easy to clean, to avoid cross infection.
4. Blower/motor maintenance and disassembly, replacement HEPA filters are available from all
safety cabinets.
5. Containment of the Cabinet: the cabinets pressurized to 500Pa, keep the air pressure
is not lower than 450Pa after 30min.
6. Cabinet stability: a countertop Center load 23kg unload, countertop must not bend downward.
7. Alarm system: safety Cabinet front window opening height exceeds a set level, decreased
safety Cabinet flow velocity and flow fluctuation of air flow velocity in excess of their nominal
value of 20%, the interlocking system startup, sound, light, sound and alarm.
8. HEPA filter integrity: scan filter at any point of the leak rate of less than 0.01%.
9. Cannot scan filters detect leak rate of less than 0.005% personal protection: percussive
sampler number ≤ 10CFU/.
10. Slit type sampler number ≤ 5CFU/product protection: colony count ≤ 5CFU/cross
infection: colony count ≤ 2CFU/.
Technical Parameters of Benchtop Biosafety Cabinet:
|
Product name |
Benchtop Biosafety Cabinet |
||
|
Index/type technical parameter |
HZJBSC－1100－LⅡA2 |
HZJBSC-1360－LⅡA2 |
HZJBSC-1800IIA2 |
|
Exhaust volume |
30% exhaust |
||
|
HEPA filter leakage ratio |
≤0.005% |
||
|
Wind speed |
Inflows flow average wind speed: >0.5M/s |
||
|
Noise |
≤62dB(A) |
||
|
Semi-peak |
≤3μm(rms) |
||
|
Illumination |
≥700LX |
||
|
Display |
LCD + remote control |
||
|
Power supply |
Single AC 220V/50Hz |
||
|
Normal power consumption |
0.85kw |
||
|
Max power consumption |
1.85kw (including two spare socket 1000W) |
||
|
Weight |
305kg |
320kg |
326kg |
|
Workspace dimensions |
1220x600x680mm |
1360x600x680mm |
1800x600x680mm |
|
Device overall dimension |
1382x790x2150mm |
1525x790x2150mm |
1940x790x2150mm |
|
Air filter specifications |
1215x500x50mmx① |
1355x500x50mmx① |
1795x500x50mmx① |
|
Exhaust air filter specifications |
600x440x90mmx① |
740x400x90mmx① |
865x440x90mmx① |
|
Fluorescent lights/UV lamps |
30w×②/30w×① |
40w×②/40w×① |
40w×②/40w×① |
|
The number of applicable |
Single double single |
Double single |
More than |
