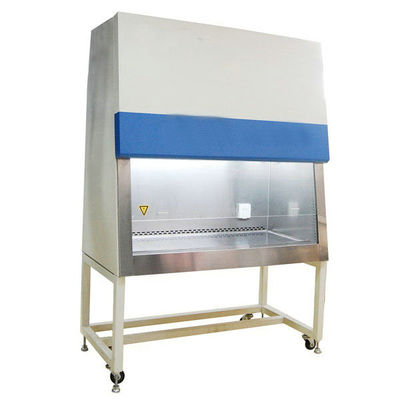

Stainless Steel Clean Room Equipment , 1382x790x2150mm Class II Biosafety Cabinet
Product Details:
| Place of Origin: | China |
| Brand Name: | SUCLAB |
| Certification: | SEFA SGS ISO9001 ISO14001 OHSAS |
| Model Number: | standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Export Packing |
| Delivery Time: | 1 5working days |
| Payment Terms: | TT LC |
| Supply Ability: | more than 10000 pcs per month |
|
Detail Information |
|||
| Size: | 1382x790x2150mm | Material: | Metal |
|---|---|---|---|
| Color: | Grey White | Down Flow Velocity: | 0.35m/s |
| Air Flow Velocity: | >0.35 M/s | Noise(db): | 65 |
| High Light: | cleanroom pass through box,horizontal laminar flow clean bench |
||
Product Description
Clean Room Biosafety Cabinet Class 2 Equipment
Features of Biosafety Cabinet Level 2:
1. Front window: when using optical perspective is clear, clean and disinfect does not negatively
impact burst-proof tempered glass, tempered glass production, glass thickness ≥ 5 mm.
2. Cabinet: four two-tier structure, all Studio and the collecting tank to use imports 304 stainless steel materials.
3. Operations on three sides and side wall panels unibody structure, leave some space
at the bottom, easy to clean, to avoid cross infection.
4. Blower/motor maintenance and disassembly, replacement HEPA filters are available from all
safety cabinets.
5. Containment of the Cabinet: the cabinets pressurized to 500Pa, keep the air pressure
is not lower than 450Pa after 30min.
6. Cabinet stability: a countertop Center load 23kg unload, countertop must not bend downward.
7. Alarm system: safety Cabinet front window opening height exceeds a set level, decreased
safety Cabinet flow velocity and flow fluctuation of air flow velocity in excess of their nominal
value of 20%, the interlocking system startup, sound, light, sound and alarm.
8. HEPA filter integrity: scan filter at any point of the leak rate of less than 0.01%.
9. Slit type sampler number ≤ 5CFU/ product protection: colony count ≤ 5CFU/cross
infection: colony count ≤ 2CFU/.
10. Cannot scan filters detect leak rate of less than 0.005% personal protection: percussive
sampler number ≤ 10CFU/.
Technical Parameters of Biosafety Cabinet Level 2:
|
Product name |
Biosafety Cabinet Level 2 |
||
|
Index/type technical parameter |
HZJBSC－1100－LⅡA2 |
HZJBSC-1360－LⅡA2 |
HZJBSC-1800IIA2 |
|
Exhaust volume |
30% exhaust |
||
|
HEPA filter leakage ratio |
≤0.005% |
||
|
Wind speed |
Inflows flow average wind speed: >0.5M/s |
||
|
Noise |
≤62dB(A) |
||
|
Semi-peak |
≤3μm(rms) |
||
|
Illumination |
≥700LX |
||
|
Display |
LCD + remote control |
||
|
Power supply |
Single AC 220V/50Hz |
||
|
Normal power consumption |
0.85kw |
||
|
Max power consumption |
1.85kw (including two spare socket 1000W) |
||
|
Weight |
305kg |
320kg |
326kg |
|
Workspace dimensions |
1220x600x680mm |
1360x600x680mm |
1800x600x680mm |
|
Device overall dimension |
1382x790x2150mm |
1525x790x2150mm |
1940x790x2150mm |
|
Air filter specifications |
1215x500x50mmx① |
1355x500x50mmx① |
1795x500x50mmx① |
|
Exhaust air filter specifications |
600x440x90mmx① |
740x400x90mmx① |
865x440x90mmx① |
|
Fluorescent lights/UV lamps |
30w×②/30w×① |
40w×②/40w×① |
40w×②/40w×① |
|
The number of applicable |
Single double single |
Double single |
More than |
