Anti Corrosion Stable Air Shower Cabinet , Pharmaceutical Equipment For Clean Room
Product Details:
| Place of Origin: | Guangdong,China(Mainland) |
| Brand Name: | SUCLAB |
| Certification: | ISO 9001,ISO 14001,OHSAS 18001 |
| Model Number: | HUAZHIJUN-685 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Packaging Details: | Normal Export Wood Cartons |
| Delivery Time: | 15 Days After Receiving The Deposit |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Pieces Each Month |
|
Detail Information |
|||
| Application: | 100 Lab / Laboratory Clean Room, Pharmaceutical, Industrial, Medical Health / Lab, Clean Room | Material: | Stainless Steel Or Cold Rolled Steel |
|---|---|---|---|
| Usage: | High Cleanliness | Size: | Standard Or Customized Made |
| Hepa Filter: | 99.99%@0.3um | Floor: | PVC/Epoxy Floor For Clean Room |
| Color: | White | ||
| High Light: | Anti Corrosion Air Shower Cabinet,Stable Air Shower Cabinet,Pharmaceutical Equipment For Clean Room |
||
Product Description
|
Model |
Single Single Blow Air Shower |
Single Double Blow |
Double Double Blow |
|
Outside Dimension (mm) |
1290×1000×2050 |
1590×1000×2050 |
1590×2000×2050 |
|
Air Shower Area (mm) |
790×910×1930 |
790×910×1930 |
790×1910×1930 |
|
Air Velocity at the Nozzle |
15~20M/S |
||
|
Number of Nozzles |
6 Pieces(Single) |
12Pieces(Double) |
24Pieces(Double) |
|
Air Shower Time |
0~99s(Adjustable) |
||
|
Filter efficiency
|
≥99.99% |
||
|
Meterial |
1.2mm thickness cold-rolled plate,surface static electricity spurts models processing or 1.2mm stainless steel plate. |
||
|
The material and number of door |
Stainless steel single door*2 pieces |
||
|
The door of interlocked manner
|
Air shower double door lock, usually two-door electronic interlocking, can open a door. |
||
|
Power Supply |
380V |
||
|
Capacity |
1.2KW |
2.3KW |
4.6KW |
|
Weight |
~360KG |
~420KG |
~840KG |
|
Number of Users |
1~2 people |
1~2 people |
2~4 people |
Specifications:
- Completely self-contained, pre-wired, fully equipped Air Shower/Tunnel systems help solve decontamination problems
- Modular design lets you order a system to suit your cleanroom
- HEPA filter/blower modules (rated 99.99% efficient @ 0.3 micron particles) wash personnel with Class 100 air to dislodge and remove particles
- Solid-state microprocessor panel provides programmable control over access door operation.
- Electromagnetic interlocking doors minimize contamination and automatically release in the event of power failure or when the emergency stop button is pressed
- Energy-efficient LED lighting mounted on the ceiling
- Available in white powder-coated or stainless steel to meet various cleanroom requirements
- Variety of sizes and door configurations
- Economical to operate and easy to maintain
- An ionizing bar is available as an optional accessory

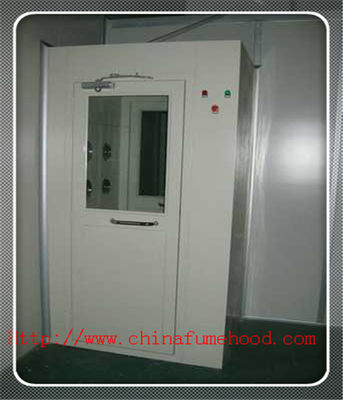

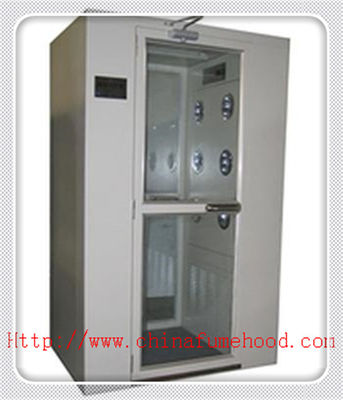

- Photo:
