Material: 1.2 mm thcikness cold -rolled steel
Size: L*750/1500*850 mm
Type: Laboratory workbench furniture
General Use: Commercial Furniture
Place of Origin: Guangdong, China
Goods name: Laboratory wokbench furniture
Color: grey white or blue
Frame: H-frame,C-frame customized
Worktop: Epoxy phenolic resin board, epoxy resin board
MOQ: 2 pcs
Loading Port: Guangzhou,shenzhen
Delivery Terms: EXW,FOB,CIF,CFR
Payment: T/T,L/C,Western Union
Structure: All steel
Guarantee: 3 Years
Profesional Design: Our lab furniture can design and customize lab furniture with you. you only supply to us your laout , and description of your application. and we will give you designing drawing to you.
SPECIFICATIONS
Product Name | LabWorkbench |
Structure |
Floor Mounted Full Steel Workbench Full steel framework, Traditional design with roomy storage space |
Custom-made | Dimension |
Color | |
Worktop |
1)16 mm/19mm/25mm thickness EPOXY RESIN, Black Color 2)304 STAINLESS STEEL cover with 25mm thickness MDF or Particle board core 3)19mm thickness WILSONART CHEMSURF/ Wilsonart Physurf/ Protector 4)19mm thickness Formica Chemtop 5)WORK TOP: 20mm thickness of Laboratory Ceramics whose surface highly resistant to chemicals and well-suited for laboratories using very aggressive products. This is an extremely hard material resistant to scratches and resistant to high temperatures. The color: Black Advantage of the 20mm thickness Laboratory Ceramic Work Top: a: Chemical resistant b: Be able to resist instant temperature 1200°C and there is no affect when temperature is up to 160 °C. 6) 50mm thickness Marble, Black Color |
Cabinet |
Worktops shall be supported by heavy duty steel frame work. Frame work shall be made of appropriate sections as given below made of cold rolled mild steel of thickness 1.5mm minimum which shall be sandblasted and Epoxy powder coated. Framework shall be designed for safe loading of worktops of up to 200 kilogram per square meter and to keep service space between wall and under bench units. Frames shall be connected to each other by means of a front runner of at least 2mm thick size 60x40mm. Frame shall be of rectangular box with a wall thickness of 3mm and at least of following dimensions.
Vertical member of minimum 60x40mm Horizontal top member 60x40mm Horizontal bottom member 60x40mm Other frame sizes will be subject to approval.
All frame work shall be sand blasted, primed and Epoxy powder coated in required color to a thickness of 120-180 microns and hardened at 260 degree Celsius. Each cantilever leg shall have adjustable threaded foot of non abrasive material such as tough plastic, nylon etc.
Frame work shall be available in two heights, 750mm for sitting height and 900mm for standing height. Vertical member framework shall be with CNC punched slots for shelves/hanging cabinets. The total framework except for front and back shall be in one piece. |
Handles | Integrated with door and drawer/Plastic/304 Stainless Steel |
Reagent Shelf |
Modules Column of Reagent shelf is made of Galvanized Steel bar which is 100*40mm *2mm and Treatments of Modules Column steel profile surface is the same as that of C-Frame Supporting Frame. Shelves are made of 20mm thickness of Laboratory Ceramics whose surface highly resistant to chemicals and well-suited for laboratories using very aggressive products. This is an extremely hard material resistant to scratches, impact and contact with high temperatures. Option: 12mm thick reinforced glass |
Accessories | |
Faucet | Brass body with ceramic valve core coated with epoxy resin powder. |
Sink | PP sink;ceramic sink; epoxy resin sink. |
Socket | Electric sockets, electric circuit breakers and the telephone and computer outlets are located on this electrical trunking made of PVC and anchored to the shelf vertical supports |
Drip cups | Drip cups can be made in different shapes and material depending on their location and task. |

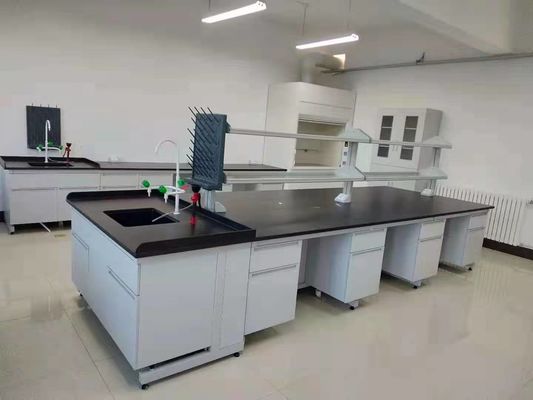

PHOTO:
