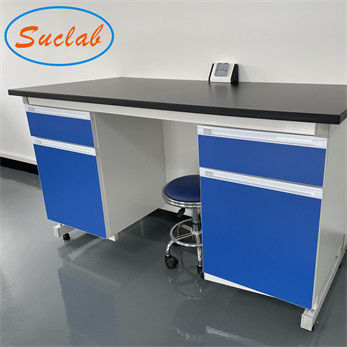

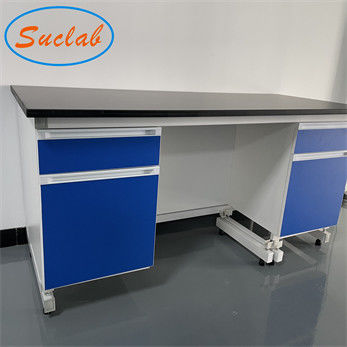

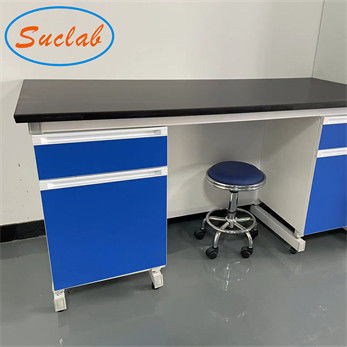

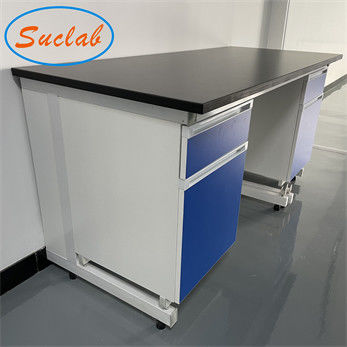

OEM Anticorrosive Chemistry Lab Furniture Multifunctional C Frame
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SUCLAB |
| Certification: | ISO9001: 2008 ISO14001:2004 OHSAS18001:2007 SGS SEFA |
| Model Number: | HUAZHIJUN-168 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | EXPORT PACKING + PLYWOOD |
| Delivery Time: | 15days |
| Payment Terms: | 3000 Pieces Each Month |
|
Detail Information |
|||
| Handle: | Aluminum Alloy | Name: | Laboratory Furniture |
|---|---|---|---|
| Color: | Blue/white Or Customized | Size: | Customized |
| Materials: | Steel Wood | Function: | Chemical Resistant |
| Application: | School, Hospital, Research Lab | Structure: | Steel Wood |
| Type: | C Frame | ||
| High Light: | OEM Chemistry Lab Furniture,Anticorrosive Chemistry Lab Furniture,Multifunctional Chemistry laboratory Furniture |
||
Product Description
30 Years Experiences OEM Chemistry Lab Furniture Chemical Resistant Lab Furniture Manufacturers In China
Chemical Resistant Lab Furniture Specifications :
Steel and wood structure is the modern laboratory preferred structure type. Structure of steel and wood with high strength bearing quality, good flexibility, excellent corrosion resistance, the use of humanization of real rooms, more convenient maintenance etc.
Suspended System
The worktop is supported by cantilever steel frame system. Cupboard and drawer units are suspended from horizontal rails beneath the worktop. The under-bench units have been designed to provide clear access to the floor for cleaning.
Chemical Resistant Lab Furniture Framework uses 40*60*1.5 mm quality C type steel, joint is connected by cold rolled steel sheet stamping a integrated special fittings, making the whole frame structure more reasonable. The bearing performance and stability of the platform is especially strong; Steel surface by acid, phosphate, electrostatic powder spraying process, has the corrosion resistance, fire prevention, moisture-proof function etc. Surface treatment: C type steel frame in the production is completed, the pretreatment includes many steps: cleaning agents, aerosol spray, rinse water, passivation seal materials coating after the pretreatment of steel products in drying oven for drying and cooling; After cooling steel products to spray chamber in internal and external spray powder, its thickness at least 1.5 mils to finish bottom spray steel products immediately sent to the high temperature constant temperature box for grinding and chemical processing, in order to apply the test environment to use.
Chemical Resistant Lab Furniture Descriptions:
Countertops
(1) Phenolic Resin countertop: 12.7mm (Edge banding and Thicken to 25.4mm)/16~30mm thickness
(2) Epoxy Resin countertop:16/19/20/25mm thickness
(3) Ceramic countertop: 20mm thickness
(4) Trespa countertop: 13/16/19/20/25mm thickness
(5) Granite/Marble countertop: 20mm thickness
Cabinet&Accessories
(1) Frame: The whole adopts 40*60*1.5mm thick high-quality cold-rolled rectangle tube, the steel surface is treated, phosphating and other processes, and then electrostatic powder coated with epoxy resin, cured at 220°C high temperature, and the surface is smooth.
(2) Handle: Aluminum alloy/Non-welded linear handle/C-shaped handle/Insertion Aluminum alloy handle.
(3) Rail: DTC 16-inch three-section silent rail.
(4) Hinge: DTC 105°/175° buffer hinge/stainless steel hinge.
(5) Footing: Use laboratory-specific adjustable feet with an adjustment range of ≥35mm, strong bearing capacity, the balance of the Lab bench can be adjusted.
Option Cabinet Unit
①Wooden Cabinet Unit:
The cabinet body thickness is 15mm, the door and drawer panels are made of 18mm thickness high-quality environmentally friendly double-face MDF/melamine board, and the edges are sealed with 2mm thick PVC edge strips. The edges are firm, clean, and free of burrs, the bond is firm.
②Steel Cabinet Unit:
1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and other processes, and then electrostatic powder coated with epoxy resin, cured at 220°C high temperature, and the surface is smooth, with a thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.
The cabinet body thickness is 15mm, the door and drawer panels are made of 18mm thickness high-quality environmentally friendly double-face MDF/melamine board, and the edges are sealed with 2mm thick PVC edge strips. The edges are firm, clean, and free of burrs, the bond is firm.
②Steel Cabinet Unit:
1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and other processes, and then electrostatic powder coated with epoxy resin, cured at 220°C high temperature, and the surface is smooth, with a thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.
● Modern design and unique structure chemical resistan tlab furniture .
● The structure is simple, flexible and changeable, and can be combined freely.
● No cabinet, suspended cabinet and mobile cabinet structure can be selected.
● Easy to clean, enough space between cabinets and floor.
● Greater knee and leg room.
● Good moisture resistance.
● Primary shock absorption function, load-bearing capacity can reach more than 200KG/m².
● Upper and lower cabinet units can be moved, added or removed according to laboratory needs without affecting the rest of the bench system.
● C-Frame lab bench not only has a unique design and structure, but also its production process is very particular. The high-quality rectangle steel is further processed, and the anti-corrosion performance is improved after the other steel has undergone professional chemical rust removal treatment. In addition, the cabinet body of the entire lab bench is mainly through the three-in-one connection structure, which ensures the good load-bearing performance of the test bench during use and increases the practical performance.
1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.
Connecting Rod
The whole adopts 40*60*1.5mm thick high-quality cold-rolled rectangle tube, the steel surface is treated, phosphating and other processes, and then electrostatic powder coated with epoxy resin, cured at 220°C high temperature, and the surface is smooth.
DTC 16-inch three-section silent rail.
DTC 105°/175° buffer hinge/stainless steel
hinge.
hinge.
Insertion Aluminum Handle
C-shaped SS Handle
Non-welded linear Handle
Wall Cupboard
Reagent Rack
