Product Details
Place of Origin: CHINA
Brand Name: SUCLAB
Certification: ISO9001: 2008 ISO14001:2004 OHSAS18001:2007 SGS SEFA
Model Number: HUAZHIJUN-168
Document: HZJ BROCHURE.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5 Pieces
Price: Negotiation
Packaging Details: EXPORT PACKING + PLYWOOD
Delivery Time: 15days
Payment Terms: 3000 Pieces Each Month
Function: |
Anti Strongest Chemical |
Worktop: |
Phenolic Expoxy Resin |
Size: |
L*750 / 1500 * 850 MM Or Customized |
Materials: |
Full Steel |
Color: |
Blue/white Or Customized |
Feature: |
No Smell |
Structure: |
Floor Mounted |
General Use: |
Commercial Furniture |
Product Name: |
School Lab Furniture Manufacturers |
Frame: |
C-frame/ H-frame/ O-frame |
Metal Type: |
Cold Rolled Steel |
Oem: |
Yes |
Wall Cabinet: |
L*300(D)*750(H) With Adjustable Shelves |
Power: |
Electric |
Delivery Date: |
15days |
Function: |
Anti Strongest Chemical |
Worktop: |
Phenolic Expoxy Resin |
Size: |
L*750 / 1500 * 850 MM Or Customized |
Materials: |
Full Steel |
Color: |
Blue/white Or Customized |
Feature: |
No Smell |
Structure: |
Floor Mounted |
General Use: |
Commercial Furniture |
Product Name: |
School Lab Furniture Manufacturers |
Frame: |
C-frame/ H-frame/ O-frame |
Metal Type: |
Cold Rolled Steel |
Oem: |
Yes |
Wall Cabinet: |
L*300(D)*750(H) With Adjustable Shelves |
Power: |
Electric |
Delivery Date: |
15days |
Specifications :
Tabletop Options:
Customize your laboratory workspace with a choice of high-quality laboratory-grade materials including phenolic resin, epoxy resin, or ceramic countertops, tailored to meet your specific needs.
Cabinet Construction:
Crafted from premium cold-rolled or galvanized steel, the laboratory workbench cabinet features a durable 1.0mm thickness. Advanced manufacturing techniques such as laser CNC cutting, precision bending, robotic welding, and automated powder coating ensure exceptional load-bearing strength, superior anti-corrosion performance, and a long-lasting lifespan.
Noise Reduction Design:
The laboratory workstation doors are equipped with sound-absorbing linings to effectively reduce noise when the doors are closed, providing a quieter work environment.
Drawer Slides:
Equipped with high-quality, noiseless three-joint slides for smooth and reliable drawer operation.
Hinges:
Heavy-duty 304 stainless steel hinges with hydraulic functionality allow doors to open and close smoothly within a 180-degree range, offering corrosion resistance and long-term durability.
This modular laboratory furniture system is designed to optimize your laboratory space, providing a fully integrated solution that combines efficient work areas, ample storage, and convenient access to laboratory tools and accessories.
Descriptions:
Multi-functional Function column equipped with central lab bench is a highlight and necessary
element in modern laboratory. It offers complete service combing water, various gas and
electricity etc provide convenience to operators. Also it simplifies lab construction work by
offering enough space for various systems to be located in column with divided design.So all
systems can be well organized and achieve effectively distinguish various pipeline
arrangements.
As a main component of laboratory furniture,the island bench is suitable for the middle position
of the laboratory and is the main platform for experimental activities.
It is suitable for multi-functional laboratory and can change various experimental environment
at will.
Size: 4800mm x 750mm x 850/900mm
Worktop Material:According to customer requirements (Phenolic Resin/Epoxy Resin/Trespa/
Stainless steel/Ceramic worktop etc.Cabinet body is made up of 1.0mm cold rolled/galvanized
steel sheet, cutting Laser and bending production, with well performance in weight-bearing
and long lifetime.
Door with double layer design and embedded with sound isolation material.Door and drawer
with collision-proof pad.
Drawer Rail: With brand three-joints model, easy to slide, less noise.
Hinge: stainless Steel 304 material, anticorrosion with 180 degree opening and self-closing
function is available.
Construction type: floor standing/movable.Steel frame(C-frame/ O-frame/H-frame with hanging
cabinets. or steel frame with movable cabinets.
Multi-functional column is specially suitable for movable central laboratory furniture in order to
change arious experimental working environment.
| Structure | All steel structure with C-frame,H-frame,floor mounted all are available and customized framework designed. combine with space storage function and flexible cabinet. |
| Framework Material |
standard 60 ×40 ×1.5mm square steel tube spraying epoxy resin powder coating. other request by customer is available. |
| Body Material | 1.0mm/1.2mm/1.5mm cold-roll steel sheet/stainless steel/galvanized steel sheet/PP(polypropylene)/FRP(fiber reinforce plastic) all available. Plywood,MDF,HPL also can choice for the cabinet body. |
| Color | Customer optional. (Contact MonchiLab for the color sample!!!) |
| Dimension | Customized size solution. |
| Worktop | 1) 15mm/19mm/25mm thickness Epoxy Resin tops,black,gray,white color for option. 2) 13mm/16mm/19mm/25mm thickness Phenolic Resin tops,black, gray,white color for option. 3) 1.0mm/1.2mm 304# stainless steel cover with 18mm thickness MDF as a worktop. 4) 20mm thickness laboratory grade ceramic tops,black color. 5) 20mm/30mm/50mm marble tops,black color. a: All lab furniture worktop is chemical resistant,durable and anti scratch.UV light proof. perfect performance of chemical resistant like acid,alkali,chemical reagent,organic solvent. b: Lab grade ceramic top is able to high temperature resistant more than 1000°C and no affect. able to resist instant temperature 1200°C & there is no affect when temperature is up to 160 °C. c: Impact cutting resistant.monolithic smooth. |
| Cabinet | For a better appearance and high efficient working station,we suggest lab furniture provide some cabinet.our standard cabinet size is 400 ×450 ×600,600 ×450 ×600.other cabinet size should be customized and approval. |
| Handle | 304# stainless steel/Aluminum/Plastic handle are available. |
| Reagent Shelf | Module steel column/Aluminum column,12mm tempered glass as the layer and other material board is optional,like epoxy resin,phenolic,marble,granite,stainless steel. |
| Sink | PP sink,epoxy resin sink,stainless steel sink all for option. |
| Faucet | Single taps/two way taps/triple taps for cold water,cold&hot water,pure water taps,sensor taps all is up to your choice.Stainless steel,material,brass body with ceramic valve ore with epoxy resin powder coating. |
| Socket | Water proof lab furniture socket, explosion proof socket,standard socket used in your country is for your option. |
| Drip Rack | Drip rack is up to your actual function demands,it's used in most of lab that located with water taps.customized size and material is available. |
| Flexible function | Flexible functional lab furniture is widely acceptable and nice evaluation all over the world
Multi-functional Function column equipped with central lab bench is a highlight and necessary Description about central test lab bench: As a main component of laboratory furniture,the island bench is suitable for the middle position Multi-functional column is specially suitable for movable central laboratory furniture in order to 1. Certification:
Authorized SGS certification showing the conformity of US standard SEFA-8M, which test many items including weight capacity of steel cabinet etc. This certification shows the superior quality of our steel bench and it can meet the highest standard in this field. 2. Quality improvement While complying with highest standard of lab bench, we also focus on improvement of steel cabinet and its accessories. Pls see details as below: I. Insisiting on using high quality accessories. II. Adding sound absorbing material inside the door to minimize the noise when door is closed. III. Open mould to make specialized collision bead to reduce the noise at most. IV. Applying a variety of welding technology which lead to excellent whole weight capacity, meticulous welding and exquisite welding spot. 3. Prominent appearance We pay attetion to every step during production especially on welding, polishing and coating of epoxy resin powder which decide the final appearance and keep improving continously. 4. Strict quality control: It's our goal to seek perfect products and service for customer's satisfaction. Pls contact with us once you have any idea or suggestion on product design, quality improvement or service etc. |

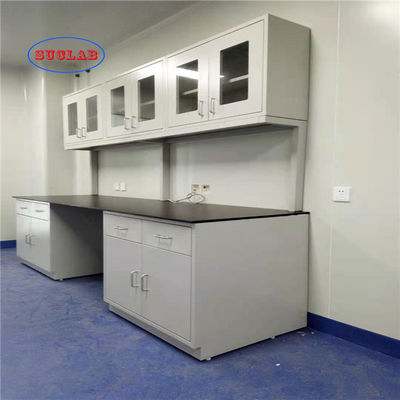

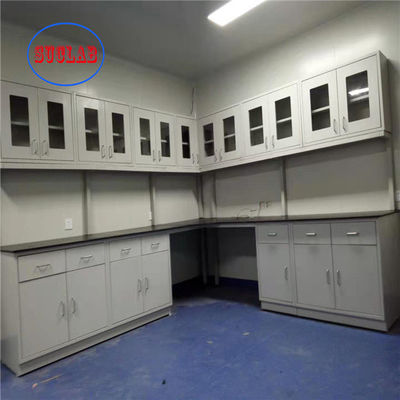

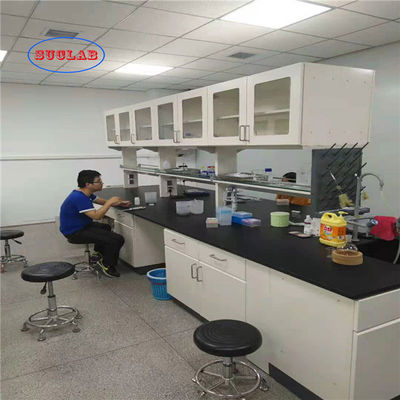

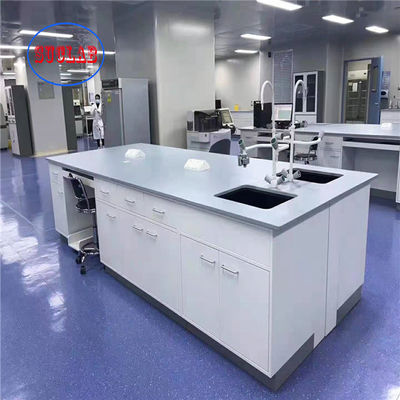

Chemistry Laboratory Table Photos:
