Place of Origin:
CHINA
Brand Name:
SUCLAB
Certification:
CE,SGS,ISO
Model Number:
HZJT006
video
video

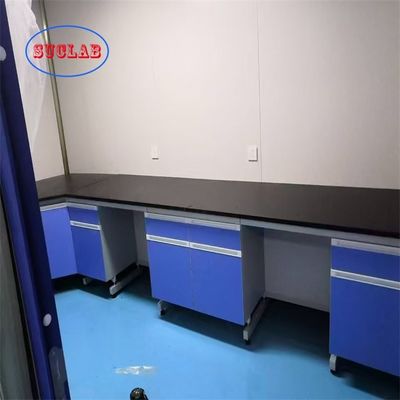

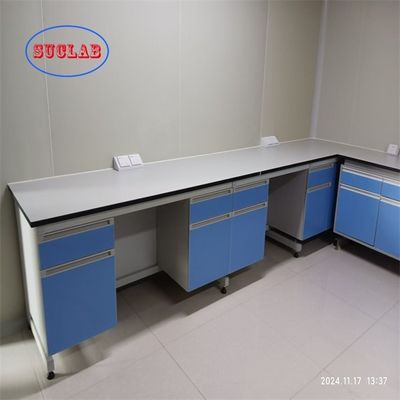

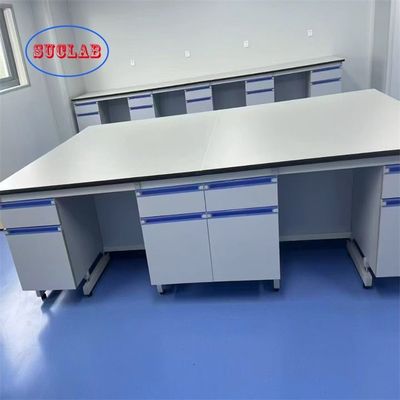

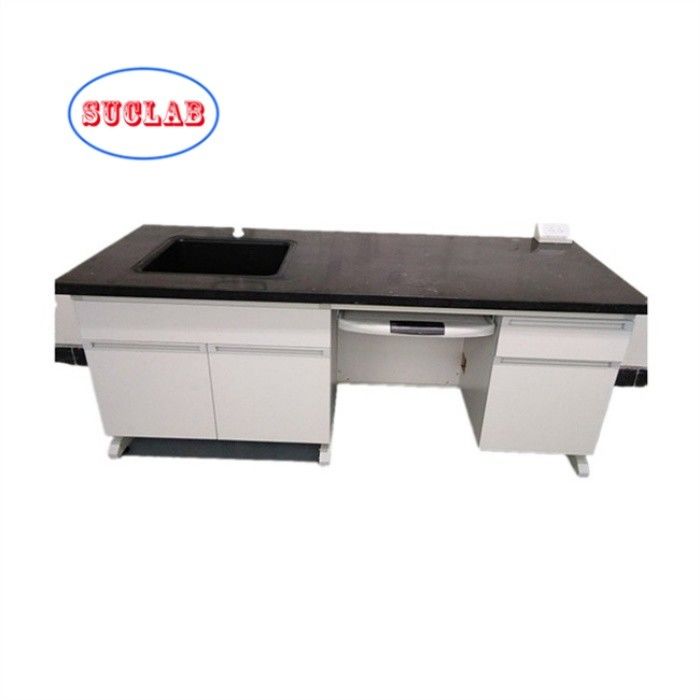

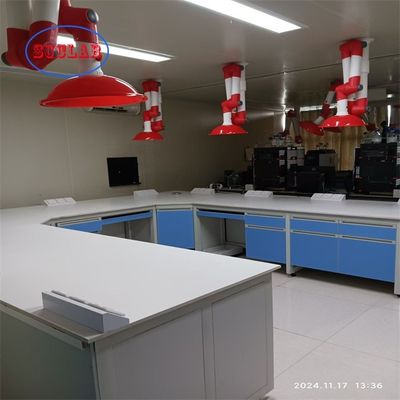

Integrated Modular Lab Furnitures Customized for Your Lab Requirements
Modular Lab Furnitures is designed with an integrated and modular structure, ensuring that you can easily customize it to fit your specific needs. With customizable sizes and the ability to accept OEM/ODM orders, you can be sure that our laboratory furniture will fit seamlessly into your laboratory environment.
Our modular laboratory bench is designed with easy installation in mind, ensuring that you can get your laboratory up and running quickly. The integrated structure ensures that our laboratory furniture is durable and long-lasting, providing you with reliable and high-quality laboratory furniture for years to come.
Our modular lab furnitures with cabinets are perfect for laboratories that require additional storage space. With a wide range of cabinet options, you can be sure that you'll be able to find the perfect storage solution for your laboratory equipment and supplies.
When it comes to packaging, our laboratory furniture is shipped in export plywood packages to ensure that your order arrives in perfect condition.
In summary, our modular laboratory bench and modular lab furnitures with cabinets are the perfect solution for laboratories that require customizable, easy-to-install, and durable laboratory furniture. With a wide range of sizes, customizable options, and easy installation, you can be sure that our laboratory furniture will meet all of your laboratory's needs.
Modular Lab Furnitures Specifications:
| Worktop | a.12.7/16/19mm lab grade phenolic resin countertop. b.16/19mm epoxy resin countertop. c. 20mm ceramic countertop. d. 20mm stainless steel countertop mounted with 18mm plywood/MDF. e. 16/20mm trespa countertop. |
| Structure | Floor mounted/C-frame/H-frame/O-frame or customization |
| Size | L*600/750/1500*850/900mm.(LxWxH) or customization |
| Color | White, gray, blue or specified by customer, we can offer color charts. |
| Cabinet /drawer/door | 18mm chipboard/MDF/plywood with melamine/HPL on both sides, depending on customers' budget and needs. Panel edges with 2mm PVC edging cemented by imported glue, excellent performance on water resistance. |
| Cabinet size | 450/500/600/900/1000/1200mm wide or customized size. |
| Frame | 60x40x2.0/40x40x1.5mm/30x30x1.5mm galvanized steel pipe coated with epoxy resin powder |
| Hinge | 304 stainless steel heavy-duty thick hinge. |
| Handle | U-shape 128/160mm 304 S.S handle/In built plastic or aluminum grab handle/aluminum alloy grab handle,or any type specified by customers. |
| Reagent shelf | made up of tempered glass and steel plate. Optional model: normal/American model. |
| Wall mounted cabinet | Single/double door with complete wood door or wood door embedded with glass, with 1 adjustable shelf. |
| Sink | Polypropylene/ceramic/epoxy resin sink. Normal size: 550x450x310/440x340x280mm. |
| Faucet | single-outlet/triple-outlets cold-water faucet, hot-cold water faucet. |
| Socket | Universal/British/European socket, water-proof or explosion proof socket. with coated steel separate standout or long aluminum electric trunking, based on customers' local needs. |
| Other available accessories | PP/stainless steel pegboard, eye wash, gas fitting, fume extractor, emergency shower,lab stool/chair etc. |
Main Worktop Instroduction:
| Lab-grade phenolic resin worktop | Epoxy resin workstop | Ceramic workstop | |
|
Ingredient
|
Dipping phenolic resin into special multi-layer kraft paper , it is hot-solid formed under high temperature and pressure.
|
Quartz sand and epoxy mixed with special bond | Combined clay,kaolin and feldspar mixed with many special material |
|
Corrosive resistance |
It is resistant for many kinds of acid,alkali,solvent and reagent etc. | It is resistant for many kinds of acid,alkali,solvent and reagent etc | Excellent |
|
Heat resistance
|
Normal: 135ºC, it could not touch flame directly. | 600ºC heat resistance | 1000ºC heat resistance |
|
Colour
|
Black,gray,dark green | Gray,gray,green | Black,gray,white,green |
|
Worktop
thickness
|
12.7mm,16mm,19mm | 16mm,19mm,25mm | 20mm |
| Water resistance | water absorption:0.6% | water absorption:0.008% | Excellent |
|
Physics
feature
|
Good | Good | Excellent |
Remark: PP/stainless steel worktop are also available according to needs of clients.
| Design | Modern, Classic |
| OEM/ODM | Acceptable |
| Surface Treatment | Powder Coating, Polishing, Sand Blasting |
| Color | Customizable |
| Material | Steel, Wood, PP, Stainless Steel |
| Warranty | 5 Years |
| Structure | Integrated, Modular |
| Function | Storage, Safety |
| Installation | Easy, Fast |
| Size | Customizable |
Shipping:
