Factory Manufacture Profesional Mask Sterilizer For Mask Manufacturer

Factory Manufacture Profesional Mask Sterilizer For Mask Manufacturer

Descriptions and Data Sheet :

I. machine overview:

It can be used to sterilize air and objects.Widely used in hospitals, food, tea, food and beverage processing and packaging equipment, food factory, cosmetics factory, dairy factory, brewery, beverage factory, bakery and cold room.And can extend the product shelf life and other standards.

Sterilization parameters ultraviolet irradiation sterilization of food sterilization, which can effectively kill in the microwave organisms (such as escherichia coli, mold) or make the total number of bacteria mate down so as to get up food sterilization.Using these two physical methods for food sterilization, the key is to choose the most suitable conditions, as far as possible to reduce the destruction of the original ingredients of powder food, in order to achieve the purpose of sterilization.According to the results of the comparison test, microwave sterilization technology can minimize the original ingredients of food, and can effectively control the total number of bacteria and the number of deadly bacteria, so the food sterilization machine is more suitable for ultraviolet sterilization than ultraviolet irradiation sterilization.

Characteristics of 2:

This product conforms to GB 4789.2, GB 4789.3, GB 4789.4, GB 4789.5, GB 4789.10

And so on.

Bactericidal parameters

Species name time required for 100% extermination (seconds)

fine

bacteria

Anthrax 90

poison

Flu-like virus 70

Tetanus 83 phagocytic virus 53

Coliform group 62 rounds strong virus 86

Staphylococcus aureus 94 hepatitis b virus 210

Salmonella 98 ecorrvirus 173

Shigella 75 water

algae

Blue-green algae

mould

bacteria

spore

Egg 101 of the genus aspergillus

Fecal fungus 99 paramecium 131

Trichoderma 89 protozoa genus 126

Aspergillus Niger 78 fish

class

Sick day shift 205

Viral haemorrhagic disease

Three: the size of the main body of the equipment

1. The total length of the equipment: 2000mm

2. UV working area: 1000mm

3. Feeding area: 500mm

4. Discharging area: 500mm

5. Inlet and outlet height: 300mm (adjustable)

6. Width of entrance and exit: 500mm

7. Conveyor belt from the ground: 750±50mm

Iv. Main structure of equipment

1. Outer body of the working area tunnel: 1.2mm high-quality stainless steel 1 set model: A3

2. Working area tunnel cavity: 1.0mm mirror stainless steel plate 1 set model: #212

3, body support frame: fangtong steel a set of model: 2 "fangtong

4. Ventilation system: one set of combined forced ventilation fans

5. Heat insulation material: vacuum aluminum silicate + silk and cotton double layer model: 60K

6. Conveyor belt: iron dragon net belt

7. Balancing device: plain water cup model: 50*12*100mm

Five: equipment electrical parts

1. Master switch: 15A

2. Total power: 1.5kw

3, mesh belt inorganic speed range: 0-5m/min

4. Transport motor: 800W

5. Governor: 500W

6. Ventilator: cy-125

7. Ammeter: set of 50A

8. Operating voltage: 220V±5% three-wire system with 50Hz

Sterilization device

1. Effective radiation from ultraviolet light source

The length of the lamp tube is 600mm

2. 16 UV sterilizing lamps *20W UV lamp inside the up and down around the full range of installation, 360° full range of sterilization.

Protection device

1. Over-voltage over-current protection

2. Fault alarm prompt

3. Overload protection of equipment

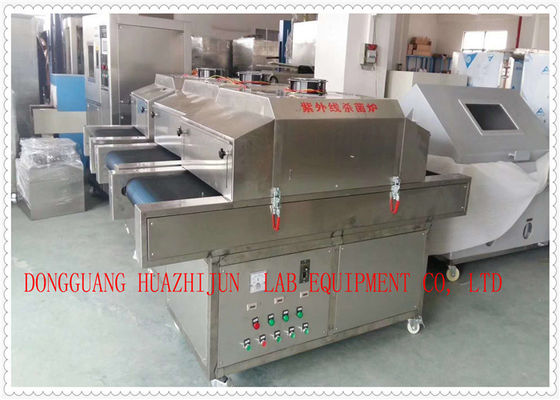

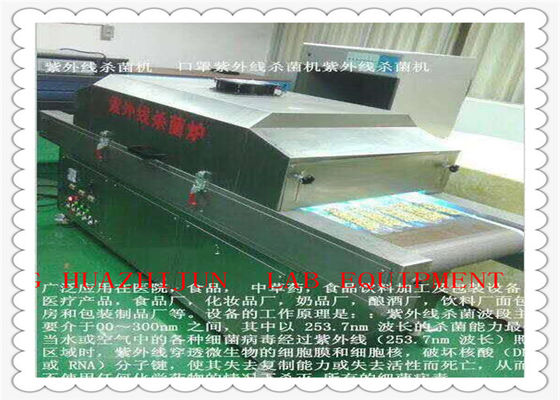

Pic :
