Place of Origin:
CHINA
Brand Name:
SUCLAB
Certification:
SGS ISO9001 ISO14001 OHSAS
Model Number:
SUCLAB078B
video
video
Anti-Aging & High Temperature Resistant Chemistry Lab Furniture Chemical FRP Lab Island Bench for All Laboratory
laboratory FRP fume hood feature:
| Working surface | Laboratory specialized 12.7mm |
| Fume hood sizes |
1200*800*2350mm 1500*800*2350mm 1800*800*2350mm |
| Drawer | One door ,one drawern or up to clients |
| Inner liner ,air baffler | 5mm compact grade laminate, high thermostability, corrosion-resistant |
| Vertical rising sash | 5mm explosion-proof FRP(Fiberglass reinforced plastics ),height adjustment700mm( |
| Fume hood Lighting | Light illuminance:140LUX ,30wDaylight lamp in anti-corrosion cover |
| Blower(not included) | Axial fan, 2100m3/h,0.25kw.220v,50HZ |
| Exhauat pipe(not included) | ¢250/300mm pipe |
| PP sink | anti-acid, corrosion-resistant, anti-solvent,thermostability |
| Chemistry faucet | copper, sparyed by expoxy resin, ceramic valve, imported pp handle |
| Technique index |
Noise:60DB,air rate:0.5m3/s According to OSHA(Occupational Safety and Health Administration)- AppendixA,sectionC.4(g), The airflow rate is 0.3-0.5m/s |
| Base cabinet | Cold-rolled steel, parkerised by acid, coated by expoxy resin |
Other accessories such as operating plate, light, axial flow fan(2.8#), Power point, brass Faucet, Cup slot etc.
Chemical fume hood detail:
一. FRP lab bench advantage:
1. The test bench is made of polymer composite sheet material through high pressure thermosetting of machine and equipment.It has the following characteristics:
Waterproof and anti-condensation, high temperature resistance, anti-scratch and wear resistance, acid and alkali resistance, corrosion resistance, anti-aging, long service life (up to more than 10 years), flame retardant, environmental protection, simple disassembly (can be repeatedly installed and disassembled, will not produce damage and deformation), flexible color matching and other adva
3. tap requirements: tap must be formed at one time, without seam, smooth inside and outside surface, prevent side leakage of solution and so on.
4 .The bearing capacity of the product is up to 400~500KG, and the thickness of the material after molding is ≥4mm.
There is no additional layer inside the molding products, and the inside and outside materials are the same.
The product density shall reach 1.809g/cm2 and meet the national inspection standard (GB/T 1033.2-2008).
Thermal deformation temperature (1.8mpa) > 180℃, meet the national (GB/T 1634.2-2004) inspection standards.
The horizontal combustion performance reaches HB level and meets the national (GB/T 2408-2008) inspection standard.
The test report of the national testing department with CMA or CNAS qualification meeting the above conditions shall be provided.
5. CNC equipment is molded with depth deviation ≤2mm, height deviation ≤1mm, split seam ≤1.3mm;Drawer sag ≤4.2mm;Perpendicularity of adjacent side: diagonal of table, diagonal of box body 1000mm≤1mm, 2000mm≤1mm, 3000mm≤2mm;Floor balance ≤0.4mm.Door and frame, door and door, door and drawer gap, interval 1-2mm;
Does FRP flame retardant anticorrosion test bench to meet national environmental protection equipment testing institutions chemical performance test: sulfuric acid (98%), hydrochloric acid, nitric acid (37%) (65%), sodium hydroxide (40%), carbon tetrachloride, acetic acid (99%), hydrogen peroxide (3%), sodium sulphide saturated liquid, formaldehyde (37%), phenol, phosphoric acid (85%), hydrofluoric acid (48%), and other 12 chemical testing, test results is no obvious change.
二 . FRP lab bench SPECIFICATIONS:
| Product Name | Lab Workbench |
| Structure |
Floor Mounted Full FRP Workbench Traditional design with roomy storage space |
| Custom-made | Dimension |
| Color | |
| Worktop |
1)FRP or 16 mm/19mm/25mm thickness EPOXY RESIN, Black Color 2)304 STAINLESS STEEL cover with 25mm thickness MDF or Particle board core 3)19mm thickness WILSONART CHEMSURF/ Wilsonart Physurf/ Protector 4)19mm thickness Formica Chemtop 5)WORK TOP: 20mm thickness of Laboratory Ceramics whose surface highly resistant to chemicals and well-suited for laboratories using very aggressive products. This is an extremely hard material resistant to scratches and resistant to high temperatures. The color: Black
|
| Cabinet |
Worktops shall be supported by heavy above 500 KG
Frame work shall be available in two heights, 750mm for sitting height and 900mm for standing height. Vertical member framework shall be with CNC punched slots for shelves/hanging cabinets. The total framework except for front and back shall be in one piece. |
| Handles | Integrated with door and drawer/Plastic/304 Stainless Steel |
| Reagent Shelf | FRP |
| Accessories | |
| Faucet | Brass body with ceramic valve core coated with epoxy resin powder. |
| Sink | PP sink;ceramic sink; epoxy resin sink. |
| Socket | Electric sockets, electric circuit breakers and the telephone and computer outlets are located on this electrical trunking made of PVC and anchored to the shelf vertical supports |
| Drip cups | Drip cups can be made in different shapes and material depending on their location and task. |
三 . WE CAN MAKE FRP FUME HOOD PLEASE CHECK FRP FUME HOOD DEATAILS.
SUCLAB FRP Products Company is the professional producer of FRP products. In recent years, according to some inquiry of customer and the scientific research medical service we designed and developed fiberglass reinforced plastic fume hood products. which is used in laboratory, medicine room and milk factory.
The most advantage of laboratory FRP fume hood is proof against corrosion, acid and alkali-resistant.
Also the stronger tensile and ligh weight is east to shipment.
Customer prefer the long durbale time and low noise.
Exhaust fume hood advantage:
1. Professional manufactor,fine workmanship
2. Good quality and competitive price
3. Fast delivery,good service
4. Accept OEM orders
5. 100% original raw material
6. All products approved by ISO9001, ISO14001
Our company having:
I . A complete range of lab furnitures
II. satifatory design and colors
III. Advanced production line, high quality of materials
our company not only manufacture standard FRP LAB BENCH AND FUME HOOD
but also non-standard.you can send us photos or instructions

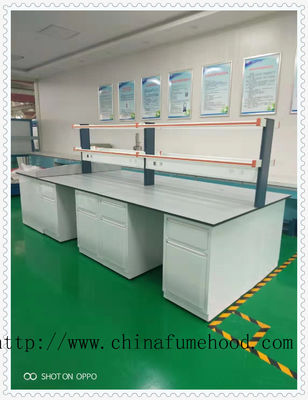

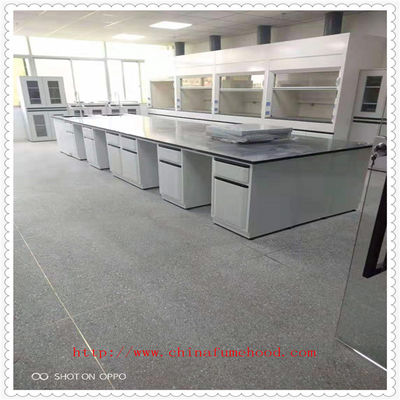

四 .PHOTO:
