| Brand Name: | SUCLAB |
| Model Number: | HZJA1902 |
| MOQ: | 2 sets |
| Price: | negociate |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 per month |

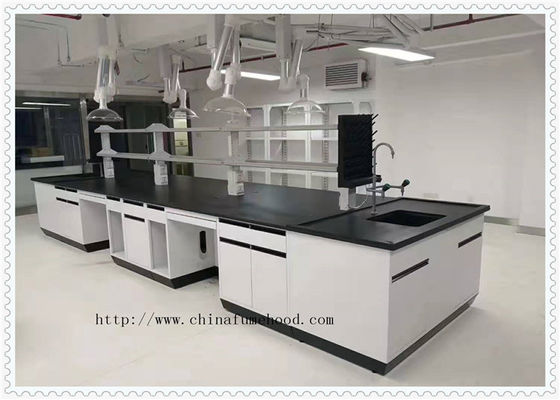

Factory Priced Direct Selling Phenolic Worktop Chemistry Lab Furniture Steel Laboratory Furniture
1.Specifications:
| Structure | C-Frame Structure, H-Frame Structure, Floor Standing Mounted |
| Size | L*750(15000)W*850H (mm) |
| Pedestal Support | 40x60x2.0mm Thk. cold rolled square steel ( RHS.)35x35x1.5mm Thk. Aluminum Extruded Sections Or Rectagular Hollow Square Steel Pipe |
|
Worktop (Option) |
1. Solid Epoxy Resin 2. Solid Phenolic Resin 3. 5mm Safety Glass |
| Cabinet Material |
1.Made of 1.0~1.2mm thick cold rolled steel ,with chemical-resist powder coating available in many colors. 2.Made of Melamine faced wood,edges covered by PVC. |
| Painting Process | washing--pickling--phosphating--acid wasing---pre-bake--powder paited--solidify. |
| Craft Process | Raw Material--CNC Cutting--Punching--Bending--Spot Welding--Coating--Package--Shipment |
| Handle | Integrated with door and drawer/Plastic/Aluminum alloy |
| Adjustable Foot | Design for adapt to uneven ground |
2.Lab Fittings Specifications
| Faucet | Different types faucets made of Brass with Epoxide resin powder coating |
| Sink | PP sink / Stainless Steel Sink |
| Drip Rack | PP Drip rack |
| Eye Wash | Single head / double head eye wash |
| Eye Wash Material | 304 stainless steel inlet pipe , s/s stay-open ball valve with flag handle & s/s eye wash bowl |
| Gas Cock | Different types cocks made of Brass with Epoxide resin powder coating |
| Socket | Different standard socket / spill proof socket can be install on the work top / reagent shelf / the bottom of the work bench |
| Reagent shelf | Constituted by 1.2mm thick cold rolled steel structure and 12mm thick glass layer sheet, standard size is L*400W*800H (mm)(island bench) / L*250W*800H (mm)(wall bench) , can be customized |
| Composition | Max. Long term Heat Resistance | Chemical Resistance | Chemical Weaknesses | |
| Ceramic | Natural Silicate | 800°C | Strong resistance against solvents, bases, oxidants and most acids | Hydrofluoric acid |
| Epoxy Resin | Epoxy resin, silica, hardener, pigment | 300°C | Strong resistance against solvents, bases, and most oxidants | Sulfuric acid, nitric acid, hydrofluoric acid, potassium permanganate |
| Phenolic Resin Laminate | Chemical resistant film, overlay paper, deco paper, Kraft paper | 135°C | Strong resistance against solvents, oxidants, and many acids | Sulfuric acid, nitric acid, sodium hydroxide |
| Toplab Plus® | Refined wood fiber, hydroxybenzen, aldehyde resin | 180°C | Strong resistance against solvents, bases, and oxidants | Hydrofluoric acid |
| Stainless Steel | Stainless steel,Melamine board | 180°C | Strong resistance against solvents, bases, oxidants, and organic acids | Mineral acids (hydrochloric, sulfuric, nitric, phosphoric, hydrofluoric) |
| Polypropylene | Propylene, ethylene | 110°C | Strong resistance against bases and most oxidants, Hydrofluoric acid | Toluene, hydrochloric acid, nitric acid, formic acid, potassium dichromate |
