Professional Design 25.4 mm Phenolic Resin Board Steel Workbench Fume Cupboard Chemistry Lab Furniture Equipments

Professional Design 25.4 mm Phenolic Resin Board Steel Workbench Fume Cupboard Chemistry Lab Furniture Equipments

Product Details:
Place of Origin: CHINA
Brand Name: SUCLAB
Certification: SEFA SGS ISO9001 ISO14001 OHSAS
Detail Information
Place of Origin:
CHINA
Brand Name:
SUCLAB
Certification:
SEFA SGS ISO9001 ISO14001 OHSAS
Application:
Anti All Reagent And Corrosion
Size:
L*1500/750*850/900 Mm
Color:
Grey White Or Blue
Feature:
All Laboratory For Anti Corrosion And Acid And Alkali
Temperature:
Anti Up 400 Degree
Power Source:
220/110/380 V
Highlight:

High Light

Highlight:

chemistry lab bench

,

lab island table

Trading Information
Minimum Order Quantity:
2 pcs
Price:
negocation
Packaging Details:
export plywood package
Delivery Time:
15 days
Payment Terms:
T/T, L/C, Western Union
Supply Ability:
90000n pcs
Product Description
Professional Design 25.4 mm Phenolic Resin Board Steel Workbench Fume Cupboard Chemistry Lab Furniture Equipments

Quick Details



Material: 1.2 mm thcikness cold -rolled steel

Size: L*750/1500*850 mm

Type:Laboratory workbench furniture

General Use:Commercial Furniture

Place of Origin:Guangdong, China

Brand Name:SUCLAB

Goods name:Laboratory wokbench furniture

Color: grey white or blue

Frame:H-frame,C-frame customized

Worktop:Epoxy phenolic resin board, epoxy resin board

MOQ: 2 pcs

Loading Port:Guangzhou,shenzhen

Delivery Terms:EXW,FOB,CIF,CFR

Payment:T/T,L/C,Western Union

Structure: All steel

Guarantee:  8 Years



Profesional Design: Our  lab furniture can design and customize lab furniture  with you. you only supply to us your laout , and description of your application. and we will give you designing drawing to you .



 SPECIFICATIONS





Product Name LabWorkbench
Structure

Floor Mounted Full Steel Workbench

Full steel framework, Traditional design with roomy storage space

Custom-made Dimension
Color
Worktop

1)16 mm/19mm/25mm thickness EPOXY RESIN, Black Color

2)304 STAINLESS STEEL cover with 25mm thickness MDF or Particle board core

3)19mm thickness WILSONART CHEMSURF/ Wilsonart Physurf/ Protector

4)19mm thickness Formica Chemtop

5)WORK TOP: 20mm thickness of Laboratory Ceramics whose surface highly resistant to chemicals and well-suited for laboratories using very aggressive products. This is an extremely hard material resistant to scratches and resistant to high temperatures. The color: Black

Advantage of the 20mm thickness Laboratory Ceramic Work Top:

a: Chemical resistant

b: Be able to resist instant temperature 1200°C and there is no affect when temperature is up to 160 °C.
c: Durable and scratch resistant
d: Resistant to UV light
e: Resistant to ageing
f: Free from solvents, non-toxic and completely recyclable

6) 50mm thickness Marble, Black Color

Cabinet

Worktops shall be supported by heavy duty steel frame work. Frame work shall be made of appropriate sections as given below made of cold rolled mild steel of thickness 1.5mm minimum which shall be sandblasted and Epoxy powder coated. Framework shall be designed

for safe loading of worktops of up to 200 kilogram per square meter and to keep service space between wall and under bench units. Frames shall be connected to each other by means of a front runner of at least 2mm thick size 60x40mm. Frame shall be of rectangular box

with a wall thickness of 3mm and at least of following dimensions.



Vertical member of minimum 60x40mm

Horizontal top member 60x40mm

Horizontal bottom member 60x40mm

Other frame sizes will be subject to approval.



All frame work shall be sand blasted, primed and Epoxy powder coated in required color to a thickness of 120-180 microns and hardened at 260 degree Celsius. Each cantilever leg shall have adjustable threaded foot of non abrasive material such as tough plastic, nylon etc.



Frame work shall be available in two heights, 750mm for sitting height and 900mm for standing height. Vertical member framework shall be with CNC punched slots for shelves/hanging cabinets. The total framework except for front and back shall be in one piece.

Handles Integrated with door and drawer/Plastic/304 Stainless Steel
Reagent Shelf

Modules Column of Reagent shelf is made of Galvanized Steel bar which is 100*40mm *2mm and Treatments of Modules Column steel profile surface is the same as that of C-Frame Supporting Frame.

Shelves are made of 20mm thickness of Laboratory Ceramics whose surface highly resistant to chemicals and well-suited for laboratories using very aggressive products. This is an extremely hard material resistant to scratches, impact and contact with high temperatures.

Option: 12mm thick reinforced glass

Accessories
Faucet Brass body with ceramic valve core coated with epoxy resin powder.
Sink PP sink;ceramic sink; epoxy resin sink.
Socket Electric sockets, electric circuit breakers and the telephone and computer outlets are located on this electrical trunking made of PVC and anchored to the shelf vertical supports
Drip cups Drip cups can be made in different shapes and material depending on their location and task.

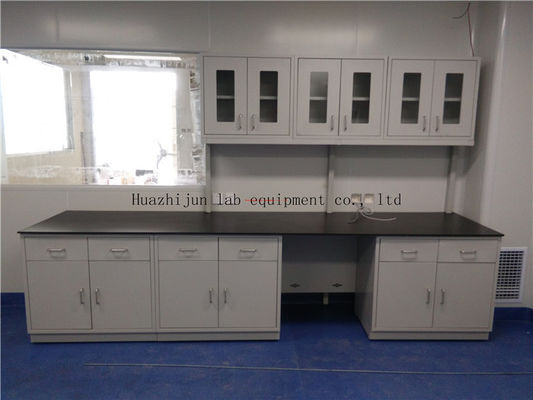

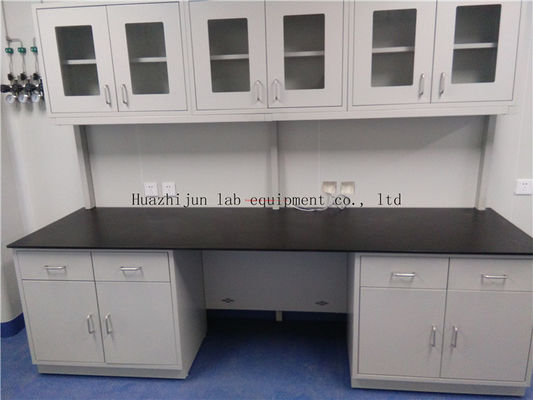

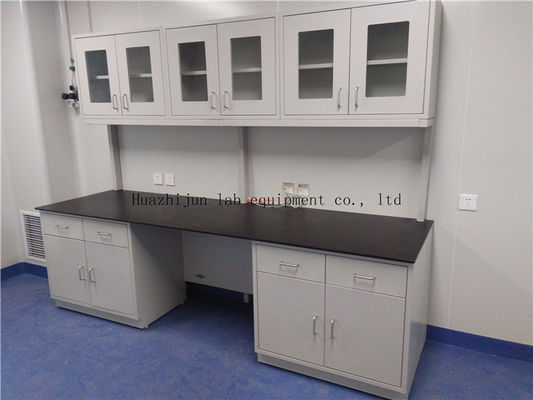

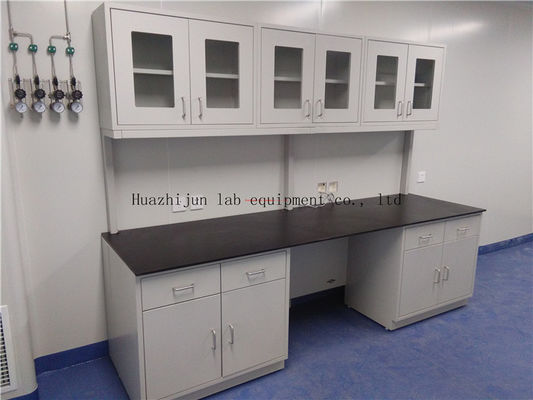

PHOTO:



Professional Design 25.4 mm Phenolic Resin Board Steel Workbench Fume Cupboard Chemistry Lab Furniture Equipments 0

Professional Design 25.4 mm Phenolic Resin Board Steel Workbench Fume Cupboard Chemistry Lab Furniture Equipments 1
