Product Details
Place of Origin: Guangdong,China(Mainland)
Brand Name: SUCLAB
Certification: SEFA SGS ISO9001 ISO14001 OHSAS
Model Number: HUAZHIJUN-721
Payment & Shipping Terms
Minimum Order Quantity: 2 Pieces
Packaging Details: Normal Export Cartons
Delivery Time: 15 Days After Receiving The Deposit
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000 Pieces Each Month
Material: |
Aluminum Alloy |
Szie: |
Standard Or Cutomized Made |
Warranty: |
5 Years |
Application: |
Research Institution, Chem Laboratory, Chemical Lab, School |
Function: |
Chemistry Lab Room Furniture, Air Exhaust, Lab Experimental Operation, Remove Dust Gas, Exhaust Hood |
General Use: |
Commercial Furniture, Commercial Use, Laboratory Furniture |
Usage: |
School, University ,College, Chemical Factory |
Material: |
Aluminum Alloy |
Szie: |
Standard Or Cutomized Made |
Warranty: |
5 Years |
Application: |
Research Institution, Chem Laboratory, Chemical Lab, School |
Function: |
Chemistry Lab Room Furniture, Air Exhaust, Lab Experimental Operation, Remove Dust Gas, Exhaust Hood |
General Use: |
Commercial Furniture, Commercial Use, Laboratory Furniture |
Usage: |
School, University ,College, Chemical Factory |

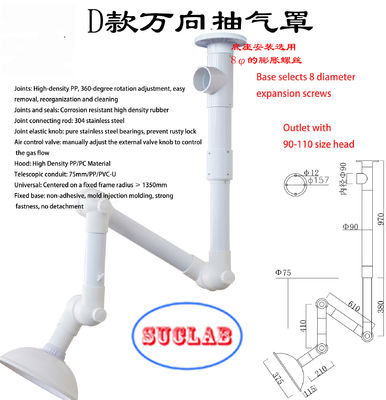

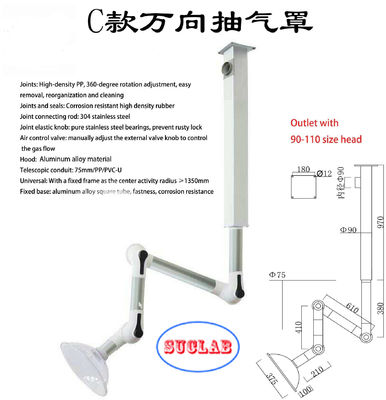

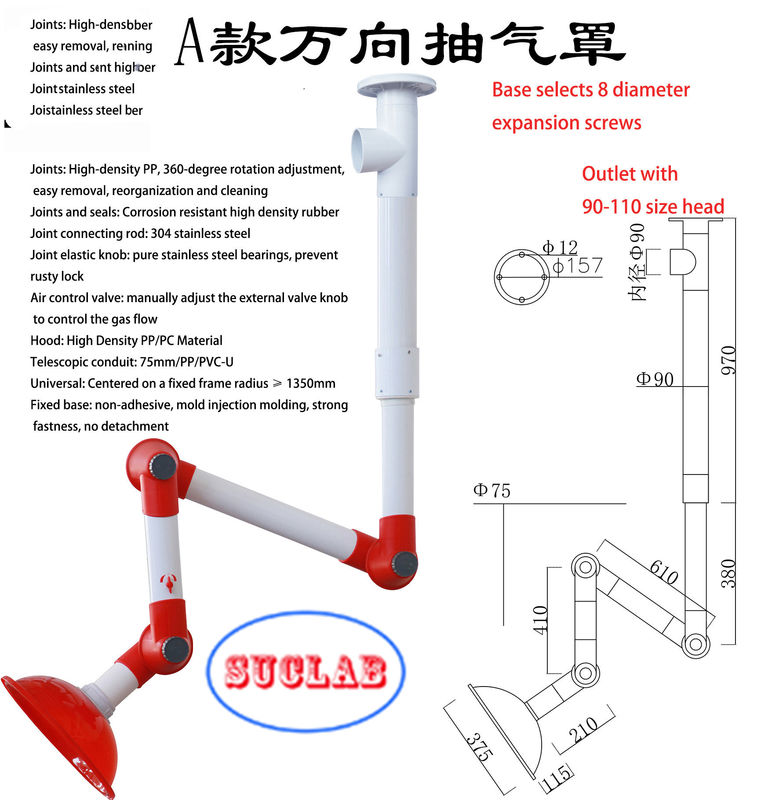

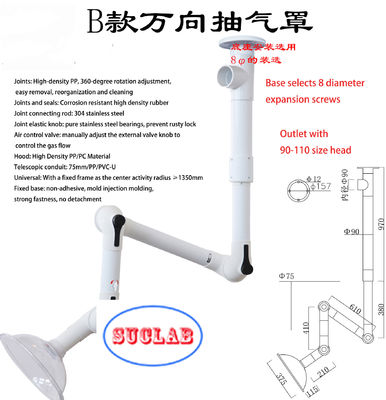

Profesional Manufacturing Laboratory Fittings Laboratory Fume Extractor For Chemical Uiversitiy College Lab
| Joint | PP, 360° rotating freely | Tube | PVC, diameter 80mm |
| Seal ring | High grade rubber | 360° swing device | Enabling movement radius to max.1600mm |
| Adjustable joint button | PP, inlaid with SUS bearing, lock with the joint connecting bolt | Fixed base | PVC |
| Damper | to manually adjust air flow with a knob | Installation | Ceiling mounted |
| Cup hood | Transparent, High grade PP/PC | Length of installation tube | Adjustable |
· Joints: high-density PP polypropylene material, can be 360 ° rotation adjustment direction, easy to disassemble, reorganization and cleaning
Joint ring: the use of non-aging high-density rubber
· Joint connecting rod: 304 stainless steel connecting rod, with a standard design within the card can be locked together with the joint
* Joint elastic knob: high-density PP material, embedded stainless steel bearings, and the joint rod lock
· Air flow control valve: With the design of circular adapter, for manual adjustment, through the external valve knob, adjust the valve angle, to control the incoming air flow
Gathering hood: PP white / red / transparent,
Telescopic catheter: ¢ 75mm PP
Joint color: white / red
Cover size: 380mm
Interface size: 110mm
· Unique 360 ° rotation device: The maximum movable radius of the fixed frame can reach 1600MM
· Standard fixed base: High-density PVC material, non-adhesive, molded injection molding, fastness, not bottom off
· Another alternative fixed base: hanging stainless steel base
Photos:
