| Place of Origin: | Guangdong,China(Mainland) |
| Brand Name: | SUCLAB |
| Certification: | SEFA SGS ISO9001 ISO14001 OHSAS |
| Model Number: | HUAZHIJUN-721 |
Specially Produce 3 Joints Laboratory Fittings Exhaust Hood For Chemical & School Laboratory
| Joint | PP, 360° rotating freely | Tube | PVC, diameter 80mm |
| Seal ring | High grade rubber | 360° swing device | Enabling movement radius to max.1600mm |
| Adjustable joint button | PP, inlaid with SUS bearing, lock with the joint connecting bolt | Fixed base | PVC |
| Damper | to manually adjust air flow with a knob | Installation | Ceiling mounted |
| Cup hood | Transparent, High grade PP/PC | Length of installation tube | Adjustable |

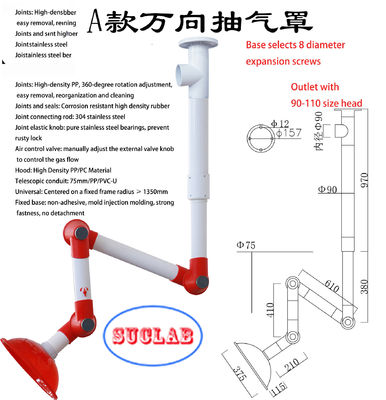

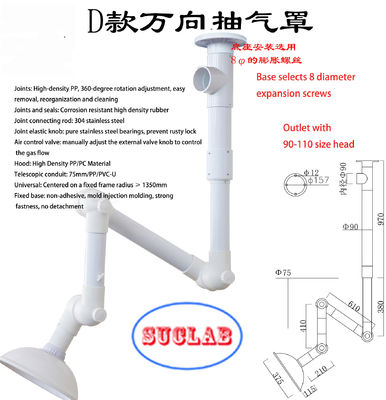

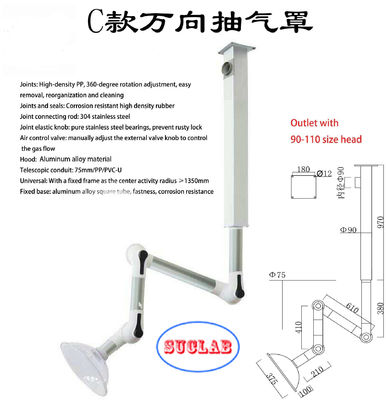

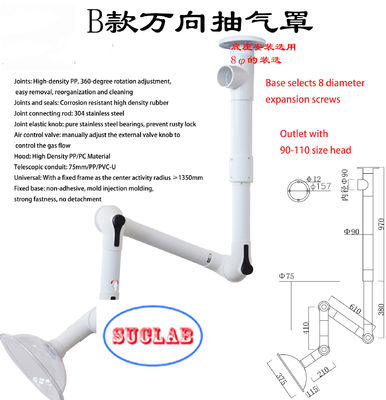

Specifications of Fume Extractor Arms:
1. A four-section telescopic tube, gas-collecting hood, mount, and other components.
2. Size: ① diameters: ф 75mm; ②the total length (in four sections): 1500mm.
3. Material: ① tube: PP pipe; ② rotary joint: ③ connecting rod Joint Center: galvanized steel ; ④ support spring: plating zinc steel ⑤ joint gasket: low friction ring rubber gasket; ⑥ articular tension knob: PP; sadly, solar Butterfly;Valves: plastic (outer edge by the soft treatment).
4. Gas-collecting hood of ф 310mm.
5. Exhaust hood ventilation volume is adjustable, you can shut down when not.
6. Surface wind velocity ≥ 0.35 m/s, exhaust 200m3/h.
7. Built-in manual balancing valves, adjustable exhaust flue gas back up and avoid, wrong drug and environmental pollution; the connection parts tight lock fixed, no shaking, has good air tightness;
8.After securing device implementation does not sag requirements, achieve a straightened horizontally.Direction can also ensure not pendulous;
9.Overall demolition equipment is convenient, easy to clean, non-hygienic dead angle.
