Place of Origin: | Guangdong,China(Mainland) |
Brand Name: | SUCLAB |
Certification: | SGS ISO9001 ISO14001 OHSAS |
Model Number: | HZJA1902 |
Chemical-Resistance Chemistry Lab Furniture Lab Bench Furniture Can be beared Above 800 kg
2. Specifications:
Product Name | Lab bench |
Structure | Floor Mounted/Full Steel Laboratory Workstation |
Custom-made | Dimension |
Color | |
Worktop |
1)16 mm/19mm/20mm thickness EPOXY, Black Color 3)304 STAINLESS STEEL cover with 25mm thickness MDF or Particle board core 4)12.7mm/ 16mm/ 19mm / 25mm thickness WILSONART CHEMSURF/ Wilsonart Physurf/ Protector 5)12.7mm/ 16mm/ 19mm / 25mm thickness Formica Chemtop 6)WORK TOP: 20mm thickness of Laboratory Ceramics whose surface highly resistant to chemicals and well-suited for laboratories using very aggressive products. This is an extremely hard material resistant to scratches and resistant to high temperatures. The color: Black Advantage of the 20mm thickness Laboratory Ceramic Work Top: a: Chemical resistant b: Be able to resist instant temperature 1200°C and there is no affect when temperature is up to 160 °C. 7) 30mm thickness Marble, Black Color |
Cabinet |
Cabinet Body n Heavy gauge 1.2mm cold rolled steel formed and welded steel cabinet body construction provides strength and durability. n Full-height removable back (supplied for all cupboard units and for other units when specified) provides full access to service chase. n Electro-statically applied Epoxy powder coat paint system, over 65um thickness for superior corrosion resistance. Door n Two-piece door construction before assembly. Sound-absorbent material filled for added rigidity and quiet operation. n 5-knuckle institutional type stainless steel hinge with polished possess has vertical loading capacity of 90kgs. It can open 175 degrees. n Rubber door bumper is applied to avoid noise and damage of cabinet. n Stainless steel C-shape handles with polished possess, with good appearance. Drawer n Full access drawer with lock open feature. n Interchangeable drawer head sound deadened for quiet operation. n Drawer body full cradled by drawer channels for 68kgs load capacity. n Middle of apron drawer bear 68kgs load capacity. According to SEFA 8-2007 Lab Bench Testing n Steel drawer runner, fully extension, stainless steel ball bearing drawer rollers for smooth operation. Adjustable Shelf n Adjustable shelf is flexible to move for maximum storage. n Heavy duty plated steel shelf clips made of steel plated bended and electroplated, for superior corrosive-resistance. Cabinet Bottom and Base n One-piece case bottom and horizontal front rail turn up with a radius at rear for more strength and easy cleaning. n Completely enclosed PVC toe space promotes lab cleaning. n M10mm screw with electroplated processed and waterproof nylon hexangular ringer. It can reach 3cm high adjusting or leveling bolt. (All four corners) Each leveling feet can bear 1000kgs loading capacity. |
Reagent Shelf |
Modules Column of Reagent shelf is made of Cold-Rolled Steel bar which is 100*40mm *2mm and Treatments of Modules Column steel profile surface is the same as that of C-Frame Supporting Frame. Shelves are made of 20mm thickness of Laboratory Ceramics whose surface highly resistant to chemicals and well-suited for laboratories using very aggressive products. This is an extremely hard material resistant to scratches, impact and contact with high temperatures. Option: 12mm thick reinforced glass |
Accessories |
Hinge: Characteristics: 1. the maximum bearing property is 45kg. 2. The retraction of hinge is at least beyond 100,000 times, has a high quality of corrosion resistance; it has met the international hardware industry standard. Heavy Duty Under-Mounted Extension Slide: America rear installation design, inner damper, soft self closing Rear installation with adjustable connecters Loading capacity: 25 kg, cycle test over 80,000 times. Handle: ABS handle, grey color. Adjustable base leg: The base leg is adjustable from 0mm to 40mm), the essential stuff is rigid PVC and flexional cover in addition. It has high qualities such as corrosion resistance, anti-aging, and long service life, specially its shock absorption function, it could eliminate frequency interference at least 14Hz.The corrosion resistant expansion cover could protect base more effective, and also keep base from gas corrosion, making products more modern. Screw: Stainless steel screw. |
3..Worktop Comparing :
Composition | Max. Long term Heat Resistance | Chemical Resistance | Chemical Weaknesses | |
Ceramic | Natural Silicate | 800°C | Strong resistance against solvents, bases, oxidants and most acids | Hydrofluoric acid |
Epoxy Resin | Epoxy resin, silica, hardener, pigment | 300°C | Strong resistance against solvents, bases, and most oxidants | Sulfuric acid, nitric acid, hydrofluoric acid, potassium permanganate |
Phenolic Resin Laminate | Chemical resistant film, overlay paper, deco paper, Kraft paper | 135°C | Strong resistance against solvents, oxidants, and many acids | Sulfuric acid, nitric acid, sodium hydroxide |
Toplab Plus® | Refined wood fiber, hydroxybenzen, aldehyde resin | 180°C | Strong resistance against solvents, bases, and oxidants | Hydrofluoric acid |
Stainless Steel | Stainless steel,Melamine board | 180°C | Strong resistance against solvents, bases, oxidants, and organic acids | Mineral acids (hydrochloric, sulfuric, nitric, phosphoric, hydrofluoric) |
Polypropylene | Propylene, ethylene | 110°C | Strong resistance against bases and most oxidants, Hydrofluoric acid | Toluene, hydrochloric acid, nitric acid, formic acid, potassium dichromate |

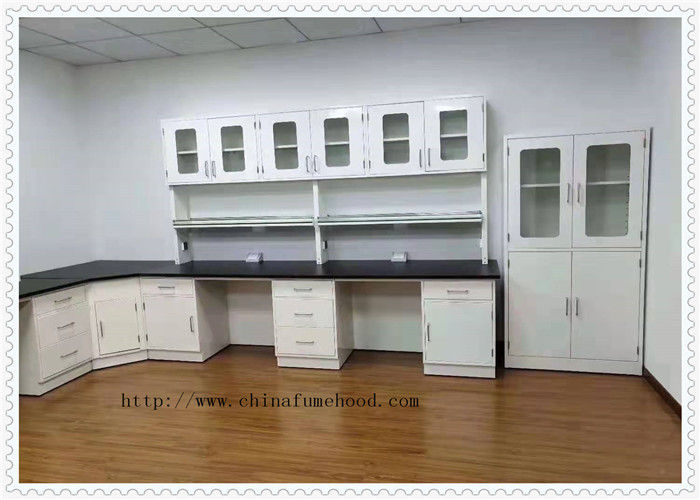

Photos :
