Place of Origin:
CHINA
Brand Name:
SUCLAB
Certification:
CE,SGS,ISO
Model Number:
HZJT003

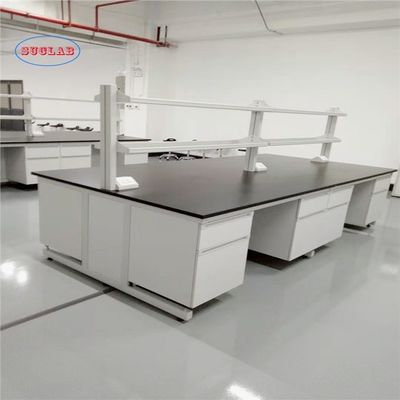

C-frame Chemistry Lab Workbench Quotation with Phenolic Resin or Epoxy Resin Worktop and Stainless Steel Materials
Steel and wood structure is the modern laboratory preferred structure type. Structure of steel and wood with high strength bearing quality, good flexibility, excellent corrosion resistance, the use of humanization of real rooms, more convenient maintenance etc.
Suspended System
The worktop is supported by cantilever steel frame system. Cupboard and drawer units are suspended from horizontal rails beneath the worktop. The under-bench units have been designed to provide clear access to the floor for cleaning.
Framework uses 40*60*1.5 mm quality C type steel, joint is connected by cold rolled steel sheet stamping a integrated special fittings, making the whole frame structure more reasonable. The bearing performance and stability of the platform is especially strong; Steel surface by acid, phosphate, electrostatic powder spraying process, has the corrosion resistance, fire prevention, moisture-proof function etc. Surface treatment: C type steel frame in the production is completed, the pretreatment includes many steps: cleaning agents, aerosol spray, rinse water, passivation seal materials coating after the pretreatment of steel products in drying oven for drying and cooling; After cooling steel products to spray chamber in internal and external spray powder, its thickness at least 1.5 mils to finish bottom spray steel products immediately sent to the high temperature constant temperature box for grinding and chemical processing, in order to apply the test environment to use.
| Steel and Wood structure lab bench table | |
| Frame | Framework uses 40*60*1.5 mm quality C type steel with 75μm epoxy resin powder coating,chemicals resistant. |
| Cabinet | 18mm thick high pressure semi-solid wood (MDF) covered with 0.4mm high pressure laminate(HPL) on both sides with 3mm PVC edging strips. |
| Reagent shelves | Shelf: made of 12mm thick frosted glass; Frame: made of 100*40*1.5mm steel tube coated with powders. |
| Height | 850 or 900mm, (height adjustable 0-30mm) |
| Worktops | 12.7/16/19mm thickness of Phenolic resin or other (Epoxy resin, ceramic, marble etc) |
| Structure | Suspended System |
| Hinge | DTC105 degree high quality hinge |
| Slideway | Self-closing three section slide rail, no noise. |
| Handle | Aluminum alloy embedded handle |
| Accessories | Socket, faucet, gas fitting, eyewash, pegboard, shelves, exhaust hood etc |
Our Chemistry Lab Workbench is designed and manufactured by top chemistry lab furnitures manufacturers. This chemistry laboratory furniture is made with high-quality materials and is built to last. The DTC105 DEG Hinges ensure that the doors of the workbench close securely, keeping your lab equipment safe. The C-frame provides stability and durability to the workbench. Our Chemistry Lab Workbench is made in China with the highest standards of quality and safety. We guarantee excellent customer service, ensuring that you have a hassle-free experience shopping for chemistry laboratory furniture.
| Countertop | Option 1: 12.7/16/19/25mm phenolic resin board. Option 2: 16/19/20/25mm epoxy resin board. Option 3: 15/20/25mm ceramic board. Option 4: stainless steel, PP, Trespa and marble are all available. |
| Structure | Floor mounted, C-frame, H-frame and Mobile modular. |
| Size | Length*750mm*850mm, Length*1500mm*850mm, or customization. |
| Color | White, blue, grey or customized. |
| Cabinet/drawer material | Option 1: Using high-quality cold-rolled steel plate, with a thickness of 1.0mm, surface is treated with acid pickling and phosphating, then coated with epoxy resin through high-pressure electrostatic powder coating. Precision machining, sturdy and stable structure, overall corrosion resistance, and aesthetic appeal are its characteristics. With a solid structure, excellent load-bearing performance, and easy disassembly and relocation, it is suitable for use in the special working environment of laboratories. Option 2: Using high-pressure, moisture-proof, and impact-resistant 18mm thick high-quality melamine board, all sections are edged with an automatic edge banding machine. The edge banding material is 2mm thick high-quality PVC waterproof edge banding strip, which is hot-melted to integrate with the board, ensuring strong adhesion, good sealing, waterproofing, and lasting aesthetic appeal. All panels are connected with a detachable three-in-one connection, providing a stable structure, excellent load-bearing performance, easy disassembly, and relocation, making it suitable for use in the special working environment of laboratories. Option 3: Chipboard, MDF, plywood, HPL, PP and stainless steel are all available based on customer's needs and budget. please contact customer service for detailed information. |
| Door and drawer panel | Option 1: With the steel cabinets, the panel is double layer structure with sound absorbing material inside, keeping noise minimum when they are in operation. Option 2: With wooden type cabinets, the cabinet doors are made of the same material as the cabinet body, with all edges treated with high-quality PVC edge banding for waterproofing, and smooth chamfering on all four sides. (The cabinet surface color is chosen by the customer). |
| Cabinet size | 450mm/500mm/600mm/900mm/1000mm wide or customized |
| Main frame | 60x40x2.0/40x40x1.5mm/30x30x1.5mm galvanized steel pipe coated with epoxy resin powder, The joints are equipped with specialized connectors formed by cold-rolled steel plate stamping, making the overall frame structure more rational. Its load-bearing performance and stability are particularly strong; the steel surface undergoes acid pickling, phosphating, electrostatic powder spraying, and high-temperature curing treatment. It is solid and stable overall, with good corrosion resistance, strong load-bearing capacity, and functions such as corrosion resistance, fire resistance, and moisture resistance. |
| Available accessories | Numerous types of reagent shelf,wall mounted cabinet,sink,faucet,socket and other accessories are available, please contact customer service for details. |
The SUCLAB Chemistry Lab Workbench Lab Workbench Quotation is designed for use in various chemistry lab applications. It is ideal for use in high school and college chemistry labs, research labs, and industrial labs. The workbench is also suitable for use in medical and pharmaceutical labs. With its fire-resistant and chemical-resistant safety features, it provides a safe and secure working environment for lab users.
The wood chemistry laboratory table design of this workbench makes it aesthetically pleasing and adds a touch of elegance to any laboratory setting. The workbench has ample storage space for lab equipment, chemicals, and other lab supplies. The cabinet doors are lockable to ensure the safety and security of the stored items. The workbench also comes with a sink and faucet for easy access to water when needed.
The SUCLAB Chemistry Lab Workbench is a reliable and high-quality lab furniture that is suitable for a wide range of chemistry lab applications. Its sturdy construction and durable materials ensure that it can withstand heavy use and last for a long time. Whether you are setting up a new lab or upgrading an existing one, the SUCLAB Chemistry Lab Workbench is an excellent choice for your lab furniture needs.
Customized Service:
The Chemistry Lab Workbench Lab Workbench Quotation product comes with the following technical support and services:
A: The SUCLAB Chemistry Lab Workbench is made of high-quality stainless steel and is designed to be durable and long-lasting.
2. Q: What is the weight capacity of the SUCLAB Chemistry Lab Workbench?A: The SUCLAB Chemistry Lab Workbench has a weight capacity of 500kg, making it suitable for a variety of lab applications.
3. Q: Where is the SUCLAB Chemistry Lab Workbench manufactured?A: The SUCLAB Chemistry Lab Workbench is manufactured in China, ensuring high-quality standards and affordable pricing.
4. Q: Does the SUCLAB Chemistry Lab Workbench come with any accessories?A: Yes, the SUCLAB Chemistry Lab Workbench comes with a variety of accessories, including shelves, drawers, and cabinets, to help you organize and store your lab equipment.
5. Q: What is the model number of the SUCLAB Chemistry Lab Workbench?A: The model number of the SUCLAB Chemistry Lab Workbench is HZJT003, making it easy to identify and order for your lab needs.
