Gray White Phenolic Resin Worktop Mobile Laboratory Table With Movable Storage Cabinet
Product Details:
| Place of Origin: | Jiangxi |
| Brand Name: | SUCLAB |
| Certification: | ISO9001,ISO14001,OHSAS18001,CE |
| Model Number: | HZJ-SLB07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Paper Carton/Wooden Case Package |
| Delivery Time: | 7-15 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 PCS/Month |
|
Detail Information |
|||
| Name: | Mobile Laboratory Table | Size: | L(Customized)*W750/1500*H850/900mm |
|---|---|---|---|
| Worktop: | 12.7mm Thickness Phenolic Resin Worktop | Cabinet: | Cabinet With Movable Wheels |
| Structure: | C-frame Structure With Movable Wheels | Slideway: | Self-closing Three Section Slide Rail |
| Handle: | Embedded Aluminum Alloy Handle With Epoxy Coating | Usage: | Educational Institutional / Research Laboratories |
| Function: | Experiment Platform/Storage | Usage Period: | 10 Years |
| High Light: | Movable Storage Cabinet Mobile Laboratory Table,Gray White Mobile Lab Table,Gray White Mobile Laboratory Table |
||
Product Description
Gray White Phenolic Resin Worktop Mobile Laboratory Table With Movable Storage Cabinet
Feature
1. Countertop: Acid and alkali resistance,not easy to deform and fade.
2. Cabient: Beautiful and generous,bearing capacity and impact resistance.
3. Drawer: Three section silent rail,aluminum alloy handle,long sevice life.
4. Foot: 5mm adjustable foot,nylon or stainless steel material.
5. Type: Floor mounted,C-frame or H-frame Structure with cabient.
6. Colour: According to requirement of client,it can be customized.
Specification
Main Frame:
Generally adopts C-type high-quality square steel, the surface is pickled, phosphatized, uniform gray epoxy spraying,
chemical anti-rust treatment, acid and alkali corrosion resistance, good load bearing performance and long service life.
Each group of independent test benches can be equipped with a circuit breaker safety protector so that each test bench
can independently control the power supply.
Countertop:
Generally adopt epoxy resin board, phenolic resin board, etc. The surface is treated by technology, smooth and pore-free,
acid and alkali resistant, anti-corrosion, milling edge treatment, table top corrosion resistance and waterproofing meet the
high quality standards of the laboratory industry. .
Door Panel:
E1 grade high quality environmental protection type melamine board is generally used; all sections are treated with high
quality PVC edge sealing and waterproofing, and the four sides are chamfered and smoothed.
Cabinet Body:
E1 grade double-sided gray high-quality environment-friendly melamine board is generally used; all visible surfaces are
treated with high-quality PVC edge sealing and waterproofing. All the plates are disassembled and three-in-one connection,
the structure is stable, the bearing performance is good and easy to be demolished, which is conducive to used in this
special working environment of the laboratory.
Drawer:
The drawer panel material is the same as the door panel. The bottom plate is generally made of E1 grade high quality MDF.
The other materials are the same as the cabinet.
Active Backboard:
E1 grade 4mm thick double-sided gray high-quality MDF board is generally used. All sections are waterproofed by high-quality
PVC edge sealing. The activity is detachable and easy to use.
Hinge:
Usually adopts self-closing stainless steel damping hinge. When the horizontal angle of the cabinet is less than 15 degrees,
the door can be closed by itself. It has good elasticity, beautiful appearance, no noise during use and long service life.
Guide Rail:
It adopts three-section guide rail, and the surface is electrostatically sprayed (galvanized) with black epoxy resin. It is corrosion-resistant
and convenient for the staff of hand-held items to facilitate the use in the special working environment of the laboratory.
Handle:
Handle stainless steel, aluminum alloy or anti-corrosion PVC material, mold molding, surface chemical treatment, beautiful appearance,
user-friendly design.
Universal Adjustment Foot:
Special injection molding adjustable foot, load-bearing, moisture-proof, anti-skid, antibacterial, anti-corrosion, can adjust the height of
the cabinet according to the indoor floor; the appearance is beautiful, the design is humanized.
Socket:
It adopts milky white 220V /10A universal two or three plug sockets, and uses various domestic or imported instrument plugs to be safe
and durable.
Pipeline Trough:
Single-row body, steel structure, self-removal and maintenance line, beautiful appearance, safe and convenient to use.
Compared of Laboratory Countertop
| Material | Phenolic Resin | Epoxy Resin | Ceramic |
| Component | Kraft Paper | Quartz Sand | Kaolin |
| Colour | Normal Fifteen Colour | Black and Gray | Black,Lvory White and Apple Green |
| Thickness | 12.7mm, 19mm,25mm | 16mm,19mm | 20mm |
| High Temperature Resistance | 135°C | 400°C | 1200°C |
| Feature | 149 Chemical Reagents Resistance | Verious Chemical Reagents Resistance | Majority Chemical Reagents Resistance and Organic Solvents |
| Avoid Reagents | Have a Flaw In 98% Sulfuric Acid | Have a Flaw In 98% Sulfuric Acid | Have a Flaw In 48% Hydrofluoric Acid |
| Test Reagents | 16 Hours | 16 Hours | 16 Hours |
| Test Methods |
1.For non-volatile drugs, drop the drug directly onto the countertop.
2.For volatile drugs, use a cotton wool to saturate the drug and contact it with a countertop. Cover with a visible glass or a wide-mouth bottle.
3.The above drugs were placed on the table at room temperature of 25 degrees. After 16 hours, the table was washed with soap and water, and dried for inspection. |
||

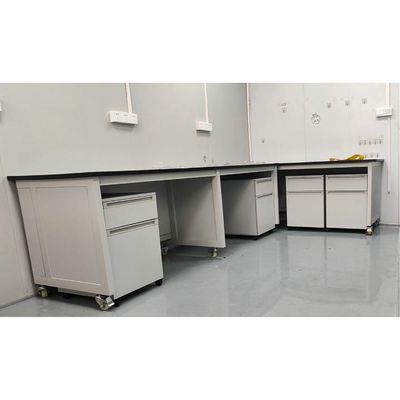

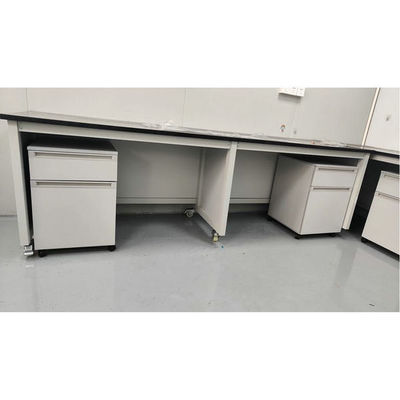

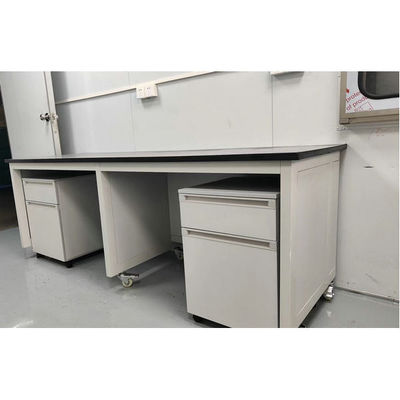

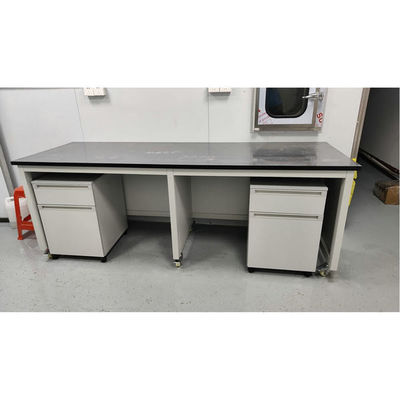

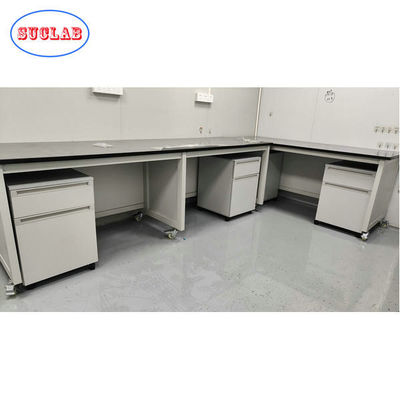

Product Photo
Why Choose Us
1. Our Factory was established in 2010.It has ten years of production experience.
2. We have well laser cutting machine and automatic bending machine.
3. We have strong sales team and professional designer in foreign trade.
4. We have professional intallation service and three years warrenty.
5. We will customize product and give the better solution according to your requirement.
FAQ
1. What is Minimum Order Quantity?
At least 1 set/sets
2. Do you have products in stocks?
Yes, Laboratory fume cupboard, base cabient, storage cabinet and fitting.
3. How long is delivery time of goods?
At least 7 or 15 workdays after receiving the deposit.
4. What are the payment methods?
50% deposit in advance by T/T, 50% balance before delivery by T/T.
5. How long is the warranty?
About 2 years after delivery.
6. Do you provide overseas installation services?
Yes, we will arrange professional installer to install the goods according the requirement of our customers.
