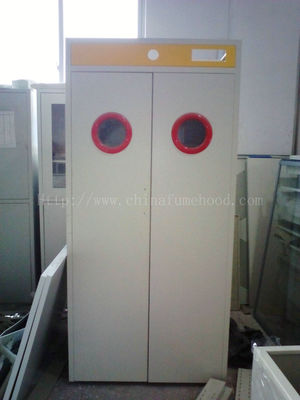

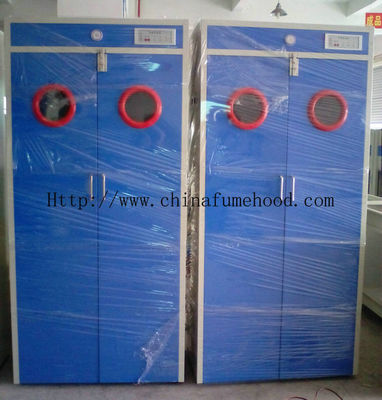

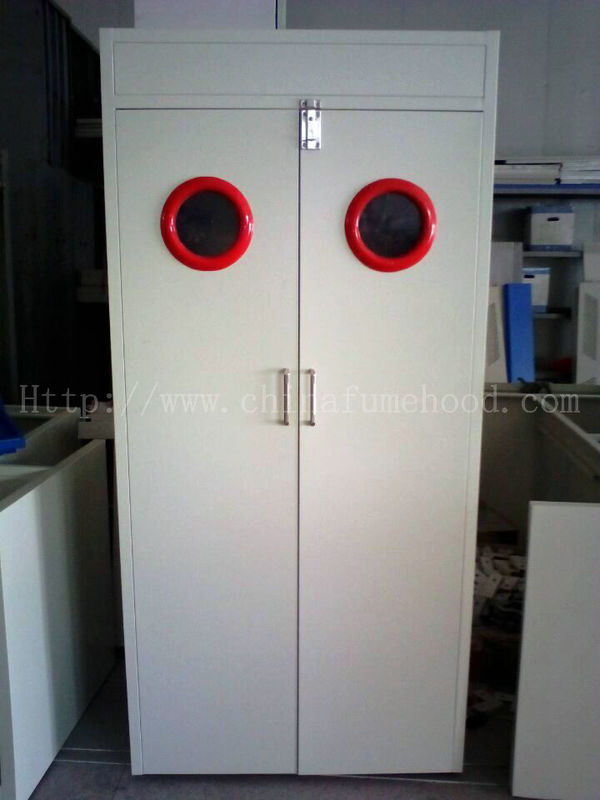

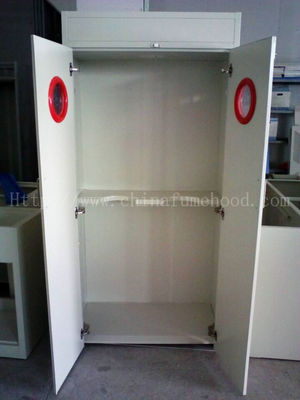

Steel Laboratory Gas Cylinder Storage Cabients For Chemical Laboratory Use
Technical Parameters of Gas Cylinder Cabinet:
|
|
Gas Cylinder Cabinet |
| Material | Steel Structure |
| Size | L1000*W450*H1800&H1900mm(Alarm) |
| Place | 2 Pieces |
| Weight | 84kg&92kg(Alarm) |
| Power Supply | AC220V, 50HZ |
| Return to normal working time | ≤ 30s |
| Power | 40W (exhaust State) |
| Alarm Mode | Sound and light alarm |
| Alarm Volume | ≥ 80dB |
| Response Time | ≤ 30s |
Specifications of Gas Cylinder Cabinet:
1. 0.8mm electrolytic sheet metal structure blasting points based on position in Cabinet back, effectively preventing accident hazard control at the same time to a minimum.
2. Epoxy coating both inside and outside of the Cabinet, acid and alkali and organic solvent.
3. With cable fixation cylinders, stability and superior performance.
4. Using a metal handle. Facilitate the smooth opening.
5. Using three-point linkage, lock control, increase the impact resistance of the door.
6. All steel hinges to ensure smooth opening of the door at the same time in increased firm.
7. Gas cylinders are classified into ordinary type, automatic alarm.
Alarm system:
This alarm system can be continuous and automatic monitoring indoor gas, acetylene, hydrogen, methane, and other gases that leaked and reached explosive concentrations: minimum 0.1 (LEL)-ceiling 0.25 (LEL) in alert probe sensor will sense that and when, effectively avoid the accident gas manufacture.
* Lights: when the accident occurred, photoelectric alarms;
* Buzzer: when the accident occurred, and audible alarms;
* Ring tone switch: when the alarm sounds agitated this sound can be switched off;
* Exhaust switch: the alarm stops automatically after pressing this switch can exhaust gases in the Cabinet;
* Test switch: test that the warning lamp and buzzer works switches;
* Power switch: cylinder Cabinet power switch;
| Product All | Steel Gas Cylinder Storage Cabinet |
|
|
Use 1.2mm thick imported cold-rolled steel plate; |
| All the models are formed by punching, bending, welding and polishing | |
| No matter from the vertical direction or the horizontal direction, or its corner, the surface is very smooth, | |
| the welding point is polished and antirust treating. | |
| The door and the board of drawer are also dealing with the same processes. | |
| Size | 600/900/1200*460*1900 |
|
|
advoiding the effect from surface deformed. Moisture and shock compacity |
| improving the overall beauty of the products. | |
| Door | two layer structure, the iner and outer are antirust and shock proof. |
| Glass: | 5mm transperant visible glass was paneled in the inner |
| Layer: | cold-rolled steel thickened plate |
| Handle | Brush finished stainless steel handle |
|
|
175 degree wide-opened hinge, rustproof, noiseproof, best strength |
| not easy to breaking, long-lasting life | |
|
|
High-quality nylon pad, skidproof and shock absorption |
| adjustable 0-30mm | |
| Server type: | OEM & ODM |
