Product Details
Place of Origin: China
Brand Name: SUCLAB
Certification: SEFA SGS ISO9001 ISO14001 OHSAS
Model Number: standard
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Export Packing
Delivery Time: 1 5working days
Payment Terms: TT LC
Supply Ability: more than 10000 pcs per month
Material: |
Full Steel |
Size: |
Standard |
Color: |
White Blue |
Thickness: |
1.2 Mm |
Factory: |
Yes |
Applications: |
Laboratory / Hospital / University |
Material: |
Full Steel |
Size: |
Standard |
Color: |
White Blue |
Thickness: |
1.2 Mm |
Factory: |
Yes |
Applications: |
Laboratory / Hospital / University |
Full Steel Laboratory Storage Gasm Cylinder Cabints System
Technical Parameters of Gas Cabinets:
| Product Name | Gas Cabinets |
| Material | Steel Structure |
| Size | L900*W450*H1800&H1900mm(Alarm) |
| Place | 2 Pieces |
| Weight | 84kg&92kg(Alarm) |
| Power Supply | AC220V, 50HZ |
| Return to normal working time | ≤ 30s |
| Power | 40W (exhaust State) |
| Alarm Mode | Sound and light alarm |
| Alarm Volume | ≥ 80dB |
| Response Time | ≤ 30s |
Specifications of Gas Cabinets:
1. 1.2mm cold rolled steel plate, sheet metal structure blasting points based on position in Cabinet back, effectively preventing accident hazard control at the same time to a minimum.
2. Epoxy coating both inside and outside of the Cabinet, acid and alkali and organic solvent.
3. Using three-point linkage, lock control, increase the impact resistance of the door.
4. With cable fixation cylinders, stability and superior performance.
5. Using a metal handle. Facilitate the smooth opening.
6. All steel hinges to ensure smooth opening of the door at the same time in increased firm.
7. Gas cylinders are classified into ordinary type, automatic alarm.
Alarm system:
This alarm system can be continuous and automatic monitoring indoor gas, acetylene, hydrogen, methane, and other gases that leaked and reached explosive concentrations: minimum 0.1 (LEL)-ceiling 0.25 (LEL) in alert probe sensor will sense that and when, effectively avoid the accident gas manufacture.
* Lights: when the accident occurred, photoelectric alarms;
* Buzzer: when the accident occurred, and audible alarms;
* Ring tone switch: when the alarm sounds agitated this sound can be switched off;
* Exhaust switch: the alarm stops automatically after pressing this switch can exhaust gases in the Cabinet;
* Test switch: test that the warning lamp and buzzer works switches;
* Power switch: cylinder Cabinet power switch;

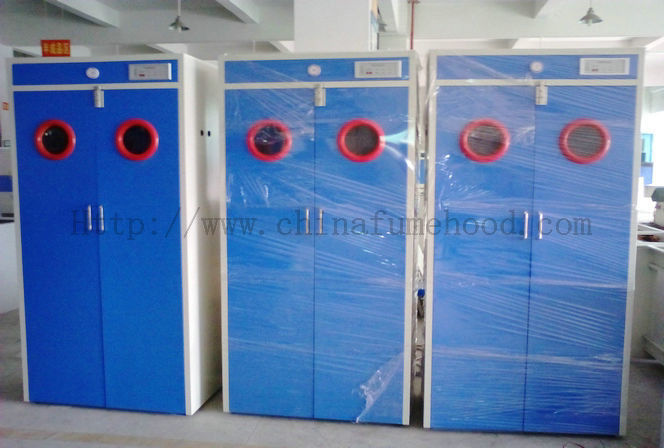

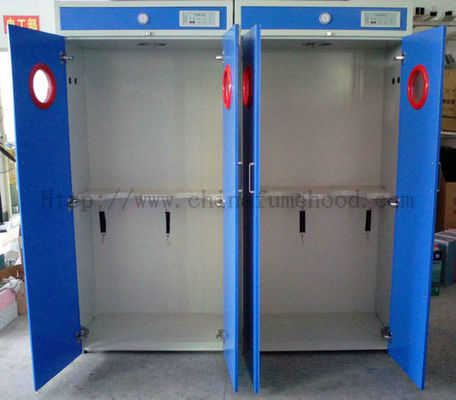

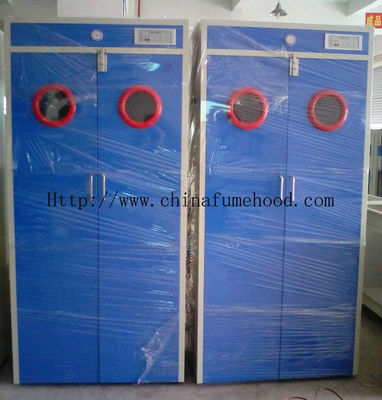

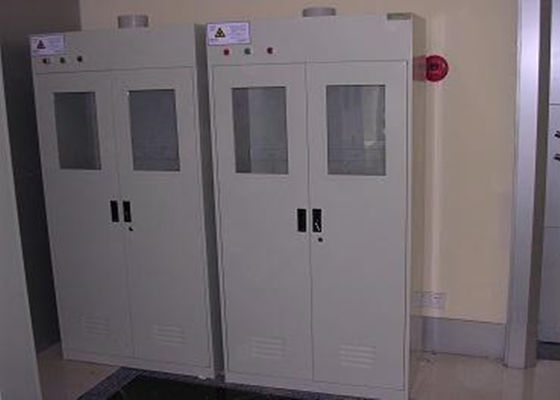

Photos of Gas Cabinets:
