High Level FRP Lab Fume Hood Designed For Laboratory Ventilation System Project

High Level FRP Lab Fume Hood Designed For Laboratory Ventilation System Project

Product Details:

Place of Origin: China
Brand Name: SUCLAB
Certification: SEFA SGS ISO9001 ISO14001 OHSAS
Model Number: standard

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Export Packing
Delivery Time: 1 5working days
Payment Terms: TT LC
Supply Ability: more than 10000 pcs per month
Get Best Price Contact Now

Detail Information

Material: FRP Size: Standard
Color: Blue Thite Advantage: Anti Corrosion Acid And Alkali Resistant
Worktop: FRP Accesory: Sink And Faucet
High Light:

laboratory exhaust hood

,

laboratory ventilation hoods

Product Description

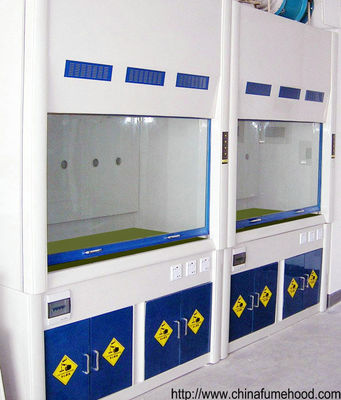

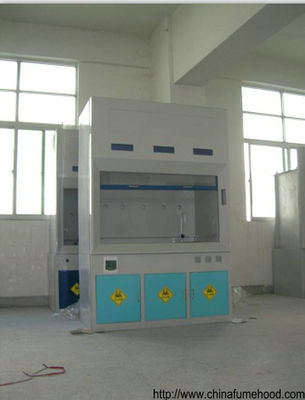

High Level FRP Lab Fume Hood Designed For Laboratory Ventilation System Project

High Level FRP Lab Fume Hood Designed For Laboratory Ventilation System Project 0

High Level FRP Lab Fume Hood Designed For Laboratory Ventilation System Project 1



Features of FRP Lab Fume Hood Designed:

1.Corrosion resistance: FRP has a wide range of corrosion resistance, it is suitable for acid gas, toxic and harmful gases and organic solvent gas and dust production operation post and occasions.

2.Operation table: 12.7mm thick solid physiochemical board, acid and alkali resistance, moisture proof, anti shock.

3.Adjust door: two section type safety tempered glass, stepless balanced lifting, pulling up and down to stay in any position.

4.Lighting: fluorescent lamp light source and anti-corrosion, isolution light and gas , table light is more than 400 lumens.

5.Operation panel: lighting switch, fan ON/OFF switch, 220V, 10A multi-function two sockets.

6.Light weight, high strength,FRP can withstand 80℃ temperature for a long time, short-term to 130℃ , FRP oxygen index is more than 30,belong to flame retardant materials.

7.Aging resistance, long service life: under normal circumstancescan be used more than 15 years.



Descriptions of FRP Lab Fume Hood Designed:

Product Name FRP Lab Fume Hood Designed
Material  FRP
Size 1200*800*2350MM,1500*800*2350MM,1800*800*2350MM
Bench Top

Using the table 12.7MM thick solid physiochemical board, surrounding pressure viscosity increased edge 10MM thick water retaining edge.

Cabinet

Using polymeric resin material is glass fiber reinforced plastic material, has the advantages of strong corrosion resistance and long lasting, no rust, no peel off,high temperature, flame retardant and so on.

Inner Liner  Lining and baffles are used polymer resin material, forming a deflector.
Windows Using 5mm thickness tempered glass,continuously variable counterweight design,window lift freely, can stop at any position.
Power Distribution Choose Zhejiang CHINT senior socket,the specifications for rated current 16A three holes socket, 10A five holes socket, 25A/380V four holes socket.
Air Exhaust  Design of third level air exhaust,no exhaust dead,air volume can be adjustable,the speed of surface wind can be up to 0.5m/s.
Lighting  30W or 40W Fluorescent lamp lighting with hidden type.
Functions The cabinet body is provided with a leakage, overload, short circuit automatic protection device,and is equipped with the fan control system, practical and safe.
Sink 6mm thickness imported PP material with pressure, corrosion resistance and high temperature performance.
Water Faucet Ventilation cabinet special single water faucet, with anti-corrosion performance,imported.
Hinges 90 degrees, 180 degrees adjustable hinge, Guangzhou produced high-qualityhinge.
Adjustable Footing Stainless steel with rubber adjustable feet,adjustable height to 50mm.
Working Door Opening Height 800mm~1000mm



Company Informations:

High Level FRP Lab Fume Hood Designed For Laboratory Ventilation System Project 2

High Level FRP Lab Fume Hood Designed For Laboratory Ventilation System Project 3

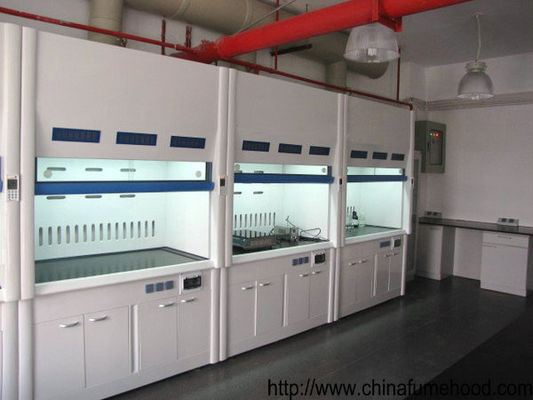

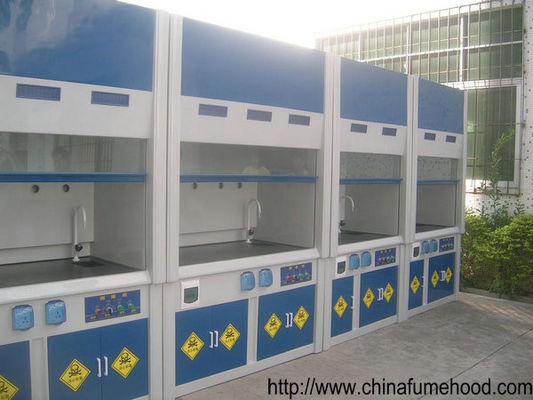

Photos of Our Projects:

High Level FRP Lab Fume Hood Designed For Laboratory Ventilation System Project 4

High Level FRP Lab Fume Hood Designed For Laboratory Ventilation System Project 5

High Level FRP Lab Fume Hood Designed For Laboratory Ventilation System Project 6

High Level FRP Lab Fume Hood Designed For Laboratory Ventilation System Project 7
