| Place of Origin: | Guangdong,China(Mainland) |
| Brand Name: | SUCLAB |
| Certification: | SEFA SGS ISO9001 ISO14001 OHSAS |
| Model Number: | HUAZHIJUN-247 |

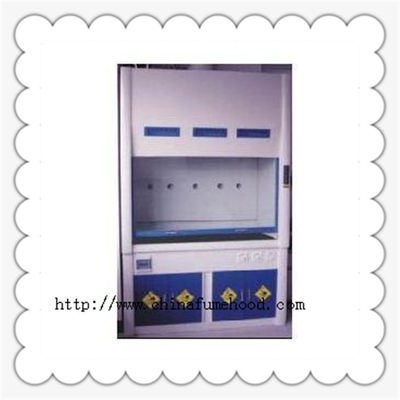

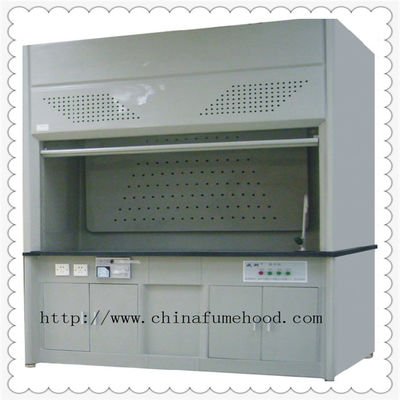

FRP Fume Hood FRP Fume Cupboard Resistance to Acid Akali for Chemical Laboratory
Features of FRP Fume Cupboard:
1.Corrosion resistance: FRP has a wide range of corrosion resistance, it is suitable for acid gas, toxic and harmful gases and organic solvent gas and dust production operation post and occasions.
2.Operation table: 12.7mm thick wilsonart solid physiochemical board, acid and alkali resistance, moisture proof, anti shock.
3.Adjust door: two section type safety tempered glass, stepless balanced lifting, pulling up and down to stay in any position.
4.Lighting: fluorescent lamp light source and anti-corrosion, isolution light and gas , table light is more than 400 lumens.
5.Operation panel: lighting switch, fan ON/OFF switch, 220V, 10A multi-function two sockets.
6.Light weight, high strength,FRP can withstand 80℃ temperature for a long time, short-term to 130℃ , FRP oxygen index is more than 30,belong to flame retardant materials.
7.Aging resistance, long service life: under normal circumstancescan be used more than 15 years.
High quality laboratory FRP fume hood feature:
| Working surface | Laboratory specialized 12.7mm |
| Fume hood sizes |
1200*800*2350mm 1500*800*2350mm 1800*800*2350mm |
| Drawer | One door ,one drawern or up to clients |
| Inner liner ,air baffler | 5mm compact grade laminate, high thermostability, corrosion-resistant |
| Vertical rising sash | 5mm explosion-proof FRP(Fiberglass reinforced plastics ),height adjustment700mm( |
| Fume hood Lighting | Light illuminance:140LUX ,30wDaylight lamp in anti-corrosion cover |
| Blower(not included) | Axial fan, 2100m3/h,0.25kw.220v,50HZ |
| Exhauat pipe(not included) | ¢250/300mm pipe |
| PP sink | anti-acid, corrosion-resistant, anti-solvent,thermostability |
| Chemistry faucet | copper, sparyed by expoxy resin, ceramic valve, imported pp handle |
| Technique index |
Noise:60DB,air rate:0.5m3/s According to OSHA(Occupational Safety and Health Administration)- AppendixA,sectionC.4(g), The airflow rate is 0.3-0.5m/s |
| Base cabinet | Cold-rolled steel, parkerised by acid, coated by expoxy resin. |
Other accessories such as operating plate, light, axial flow fan(2.8#), Power point, brass Faucet, Cup slot etc.
frp fume hood chemical fume hood detail:
chemistry fume hood advantage:
1. Professional manufactor,fine workmanship
2. Good quality and competitive price
3. Fast delivery,good service
4. Accept OEM orders
5. 100% original raw material
6. All products approved by ISO9001, ISO14001
Our company having:
I . A complete range of lab furnitures
II. satifatory design and colors
III.Advanced prodution line ,high quality of materials
our company not only manufacture standard fume hood,
but non-standard.you can send us photos or instructions.
