FRP Acid Lab Fume Hood Ventilation System 6mm Tempered Glass Window

FRP Acid Lab Fume Hood Ventilation System 6mm Tempered Glass Window

Product Details:

Place of Origin: China
Brand Name: SUCLAB
Certification: SEFA SGS ISO9001 ISO14001 OHSAS
Model Number: standard

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Export Packing
Delivery Time: 1 5working days
Payment Terms: TT LC
Supply Ability: more than 10000 pcs per month
Get Best Price Contact Now

Detail Information

Size: Standard Material: FRP
Color: White Window: 6 Mm Thickness Tempered Glass
Blower: PP Anti Corrosion Function: Anti Corrosion And High Temperature Acid And Alkali Resistant
Color: Blue, White Advantage: Anti Corrosion Acid And Alkali Resistant
Worktop: FRP Accessory: Sink And Faucet
High Light:

laboratory ventilation hoods

,

fiberglass fume hood

Product Description

Frp Product Series Frp Acid Fume Hood In Laboratory Ventilation System



Ordering notice



1. the fume hood should write completely, If the table material cannot satisfy the request, may product according to the user request.

2. the fume hood body color is a cream color generally, if the user has the request in addition, may mix colors according to the users request.

3. fume hood fitting quantities may add or deduct according to the user request.

4. fume hoods pour water, pipeline positions and so on electricity, gas, only satisfies the general laboratory request. If the user has special request, should proposed at the beginning of the ordering.

5. If the user has the request about combined type laboratory bench length, should propose the assembling plan and the request according to the modulus size.

6. laboratory bench body ordinary is the cream color; the floor is a black, if the user has the request to the color, must order when proposed.

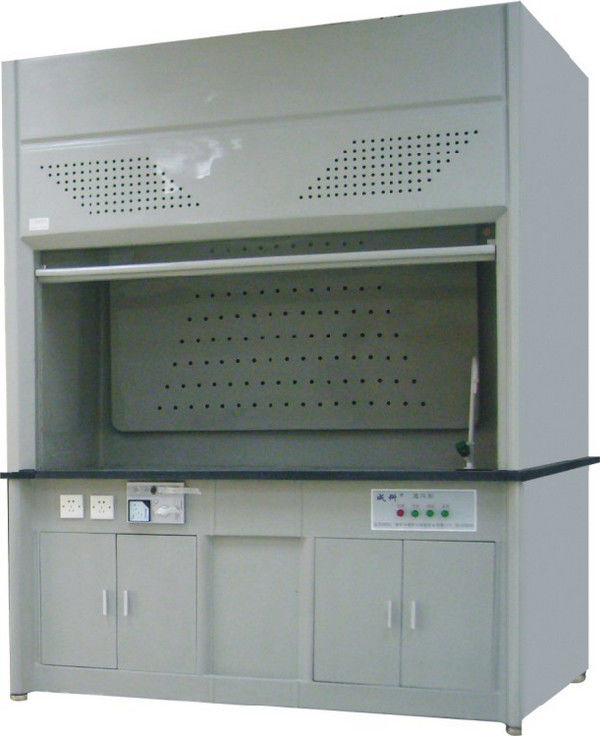

FRP Acid Lab Fume Hood Ventilation System 6mm Tempered Glass Window 0

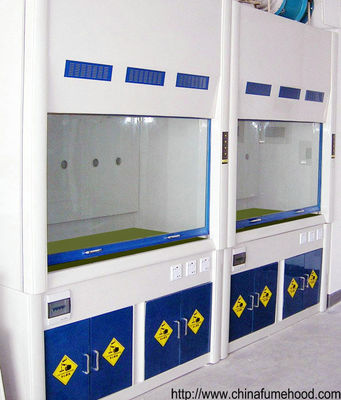

FRP Acid Lab Fume Hood Ventilation System 6mm Tempered Glass Window 1



Features of Frp Acid Fume Hood:

1. Corrosion resistance: FRP has a wide range of corrosion resistance, it is suitable for acid gas, toxic and harmful gases and organic solvent gas and dust production operation post and occasions.

2. Operation table: 12.7mm thick solid physiochemical board, acid and alkali resistance, moisture proof, anti shock.

3. Adjust door: two section type safety tempered glass, stepless balanced lifting, pulling up and down to stay in any position.

4. Lighting: fluorescent lamp light source and anti-corrosion, isolution light and gas , table light is more than 400 lumens.

5. Operation panel: lighting switch, fan ON/OFF switch, 220V, 10A multi-function two sockets.

6. Light weight, high strength, FRP can withstand 80℃ temperature for a long time, short-term to 130℃ , FRP oxygen index is more than 30, belong to flame retardant materials.

7. Aging resistance, long service life: under normal circumstancescan be used more than 15 years.



Descriptions of Frp Acid Fume Hood:

Product Name Frp Acid Fume Hood
Material  FRP
Size 1200*800*2350MM, 1500*800*2350MM, 1800*800*2350MM
Bench Top

Using the table 12.7MM thick solid physiochemical board, surrounding pressure viscosity increased edge 10MM thick water retaining edge.

Cabinet

Using polymeric resin material is glass fiber reinforced plastic material, has the advantages of strong corrosion resistance and long lasting, no rust, no peel off, high temperature, flame retardant and so on.

Inner Liner  Lining and baffles are used polymer resin material, forming a deflector.
Windows Using 5mm thickness tempered glass, continuously variable counterweight design, window lift freely, can stop at any position.
Power Distribution Choose Zhejiang CHINT senior socket,the specifications for rated current 16A three holes socket, 10A five holes socket, 25A/380V four holes socket.
Air Exhaust  Design of third level air exhaust, no exhaust dead, air volume can be adjustable, the speed of surface wind can be up to 0.5m/s.
Lighting  30W or 40W Fluorescent lamp lighting with hidden type.
Functions The cabinet body is provided with a leakage, overload, short circuit automatic protection device, and is equipped with the fan control system, practical and safe.
Sink 6mm thickness imported PP material with pressure, corrosion resistance and high temperature performance.
Water Faucet Ventilation cabinet special single water faucet, with anti-corrosion performance, imported.
Hinges 90 degrees, 180 degrees adjustable hinge, Guangzhou produced high-qualityhinge.
Adjustable Footing Stainless steel with rubber adjustable feet, adjustable height to 50mm.
Working Door Opening Height 800mm~1000mm

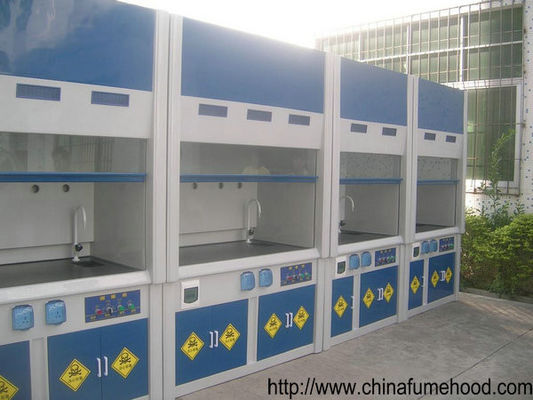

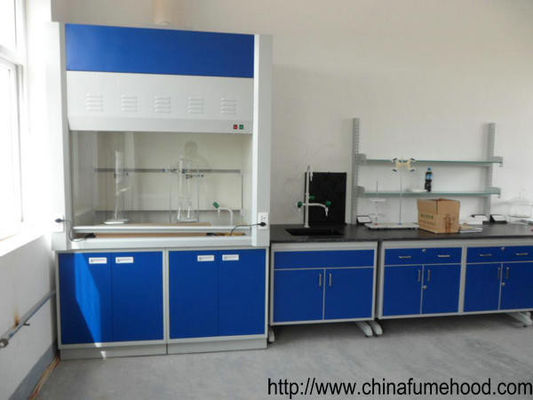

Photos of Our Projects:

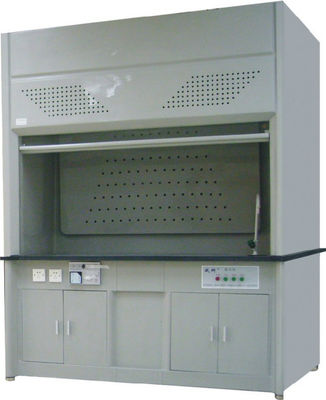

FRP Acid Lab Fume Hood Ventilation System 6mm Tempered Glass Window 2

FRP Acid Lab Fume Hood Ventilation System 6mm Tempered Glass Window 3

FRP Acid Lab Fume Hood Ventilation System 6mm Tempered Glass Window 4
