Customized Made Chemical Lab Fume Hood With Scrubber
Our company is the professional manufacturer of FRP products. In recent years according to some manufacture, and the scientific research medical service we designed and developed glass fiber reinforced plastic furniture serial products and so on. Such as laboratory, medicine room, and the glass fiber reinforced plastic fume hood, the combined glass fiber reinforced plastic laboratory bench, and the glass fiber reinforced plastic drugs fume hood and necessary drugs and so on. It uses the synthetic resin is the cementing agent, the glass fiber to strengthen the material, becomes according to a certain proportion synthesis method processing. Has bears the chemical etching, thermostablly, water resistant, to bear the climate, the electric insulation performance to be good, the intensity is high, weight characteristics and so on light, sound-insulated antivibration. Its popular with the user.
Features of Frp Lab Fume Hood With Scrubber:
1. Corrosion resistance: FRP has a wide range of corrosion resistance, it is suitable for acid gas, toxic and harmful gases and organic solvent gas and dust production operation post and occasions.
2. Operation table: 12.7mm thick solid physiochemical board, acid and alkali resistance, moisture proof, anti shock.
3. Lighting: fluorescent lamp light source and anti-corrosion, isolution light and gas , table light is more than 400 lumens.
4. Operation panel: lighting switch, fan ON/OFF switch, 220V, 10A multi-function two sockets.
5. Adjust door: two section type safety tempered glass, stepless balanced lifting, pulling up and down to stay in any position.
6. Light weight, high strength, FRP can withstand 80℃ temperature for a long time, short-term to 130℃ , FRP oxygen index is more than 30, belong to flame retardant materials.
7. Aging resistance, long service life: under normal circumstancescan be used more than 15 years.
Descriptions of FrpLab Fume Hood With Scrubber:
Product Name | Frp Type Exhaust Exhaust System |
Material | FRP |
Size | 1200*800*2350MM, 1500*800*2350MM, 1800*800*2350MM |
Bench Top |
Using the table 12.7MM thick solid physiochemical board, surrounding pressure viscosity increased edge 10MM thick water retaining edge. |
Cabinet |
Using polymeric resin material is glass fiber reinforced plastic material, has the advantages of strong corrosion resistance and long lasting, no rust, no peel off, high temperature, flame retardant and so on. |
Inner Liner | Lining and baffles are used polymer resin material, forming a deflector. |
Windows | Using 5mm thickness tempered glass, continuously variable counterweight design, window lift freely, can stop at any position. |
Power Distribution | Choose Zhejiang CHINT senior socket, the specifications for rated current 16A three holes socket, 10A five holes socket, 25A/380V four holes socket. |
Air Exhaust | Design of third level air exhaust, no exhaust dead, air volume can be adjustable, the speed of surface wind can be up to 0.5m/s. |
Lighting | 30W or 40W Fluorescent lamp lighting with hidden type. |
Functions | The cabinet body is provided with a leakage, overload, short circuit automatic protection device, and is equipped with the fan control system, practical and safe. |
Sink | 6mm thickness imported PP material with pressure, corrosion resistance and high temperature performance. |
Water Faucet | Ventilation cabinet special single water faucet, with anti-corrosion performance, imported. |
Hinges | 90 degrees, 180 degrees adjustable hinge, Guangzhou produced high-qualityhinge. |
Adjustable Footing | Stainless steel with rubber adjustable feet, adjustable height to 50mm. |
Working Door Opening Height | 800mm~1000mm |

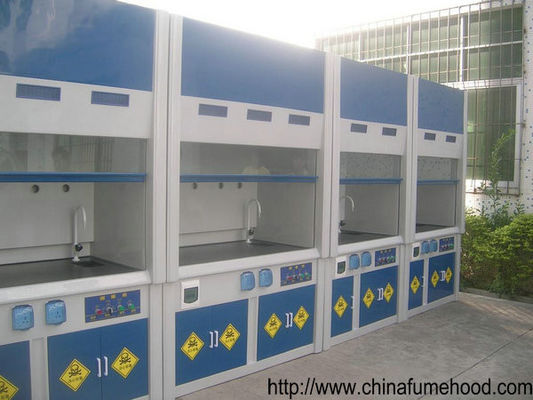

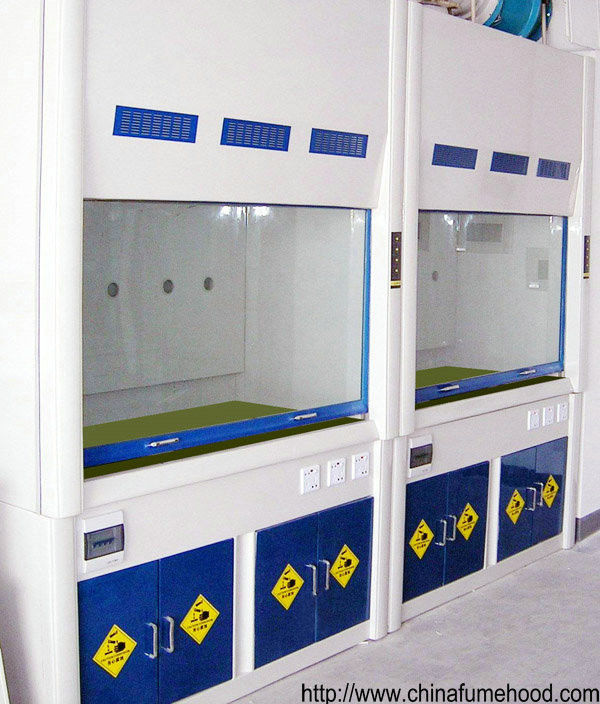

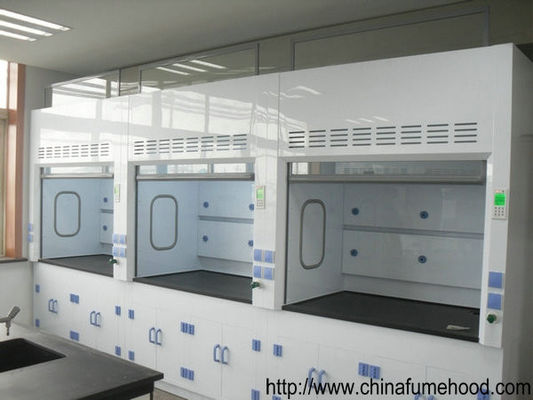

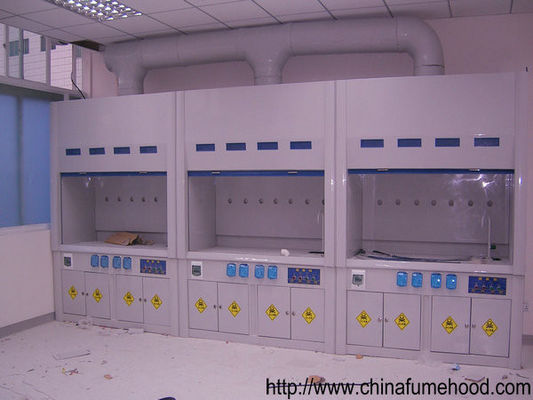

Photos of Our Projects:
