Science Frp Exhaust Fume Hood Laboratory Fume Hood in Laboratory Ventilation System
Product Details:
| Place of Origin: | Guangdong,China(Mainland) |
| Brand Name: | SUCLAB |
| Certification: | SEFA SGS ISO9001 ISO14001 OHSAS |
| Model Number: | HUAZHIJUN-148 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Packaging Details: | Normal Export Cartons |
| Delivery Time: | 15 Days After Receiving The Deposit |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 3000 Pieces Each Month |
|
Detail Information |
|||
| Size: | 1200/1500/1800*800*2350mm, Customized Size, 1200*800*2350, 2400*850*2350mm, 4/5/6ft | Color: | Blue, White, Etc, Cutomized, Optional |
|---|---|---|---|
| Application: | Chemistry Fume Hood, Laboratory, Chemisty Lab | Windows: | Fume Cupboards 5mm Explosion-proof Glass, 5mm Tempered Glasses |
| Accessory: | 3 Doors, 4 Doors, Movable And Acid Resistent Bottom Cabinet, Anemometer, Sampling Mouth | Materail: | FRP |
| Structure: | Floor Mounted Fume Hood Or Bench Top Fume Hood, Standing, Ceiling Mounted | Material: | FRP |
| Size: | Standard | Color: | Blue, White |
| Advantage: | Anti Corrosion Acid And Alkali Resistant | Worktop: | FRP |
| Accessory: | Sink And Faucet | ||
| High Light: | laboratory exhaust hood,laboratory ventilation hoods |
||
Product Description
2. SPECIFICATIONS:
|
Product Name |
FRP Fume Hood |
| Material | FRP |
| Size | 1200*800*2350MM,1500*800*2350MM,1800*800*2350MM |
| Bench Top |
Using the table 12.7MM thick solid physiochemical board, surrounding pressure viscosity increased edge 10MM thick water retaining edge. |
| Cabinet |
Using FRP material is glass fiber reinforced plastic material, has the advantages of strong corrosion resistance and long lasting, no rust, no peel off,high temperature, flame retardant and so on. |
| Inner Liner | Lining and baffles are used FRP material, forming a deflector. |
| Windows | Using 5mm thickness tempered glass,continuously variable counterweight design,window lift freely, can stop at any position. |
| Power Distribution | Choose Zhejiang CHINT senior socket,the specifications for rated current 16A three holes socket, 10A five holes socket, 25A/380V four holes socket. |
| Air Exhaust | Design of third level air exhaust,no exhaust dead,air volume can be adjustable,the speed of surface wind can be up to 0.5m/s. |
| Lighting | 30W or 40W Fluorescent lamp lighting with hidden type. |
| Functions | The cabinet body is provided with a leakage, overload, short circuit automatic protection device,and is equipped with the fan control system, practical and safe. |
| Sink | 6mm thickness imported PP material with pressure, corrosion resistance and high temperature performance. |
| Water Faucet | Ventilation cabinet special single water faucet, with anti-corrosion performance,imported. |
| Hinges | 90 degrees, 180 degrees adjustable hinge, Guangzhou produced high-qualityhinge. |
| Adjustable Footing | Stainless steel with rubber adjustable feet,adjustable height to 50mm. |
| Working Door Opening Height | 800mm~1000mm |
External: FRP sheet Structure Finish
Internal: Super White Chemical Resistant FRP Sheets
3. Main Special Features:
- Chain and Sprocket Glass Sash (Superior durability and effortless sliding)
- Flip open airfoil for easy cleaning of spillages
- High sash opening (850mm)
- FRP interior .Waterproof and anti-condensation, high temperature resistance, scratch resistance, acid and alkali resistance, corrosion resistance, anti-aging, long service life (up to more than 10 years), flame retardant, environmental protection, color flexible match advantages
- Internally accessible service panel for easy maintenance
- Easily changeable worktop
- ASHRAE 110:1995 Tested By Renowned Accreditation Company
SUCLAB series fume hood is suitable:
- Acid Digestion
- General Purpose
For Perchloric and Hydrofluoric Acid fume hood, please contact us to know further.

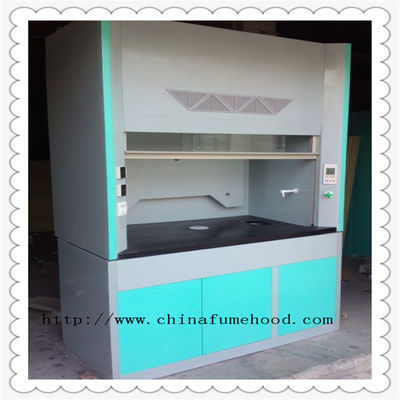

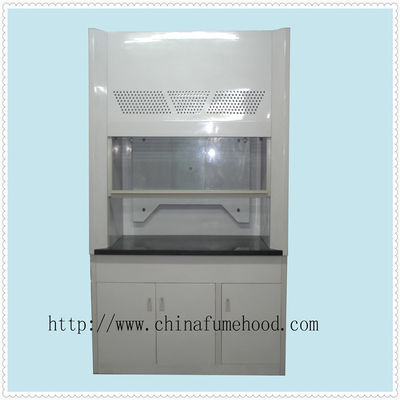

4.Photos of Our Projects:
