| Place of Origin: | Jiangxi |
| Brand Name: | SUCLAB |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | HZJFH01 |

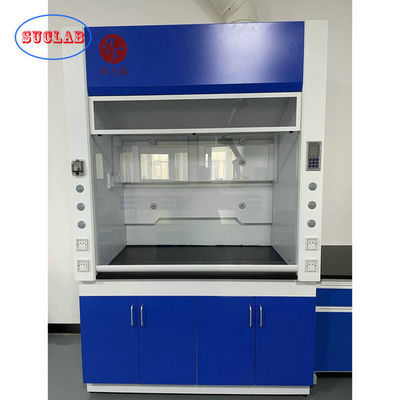

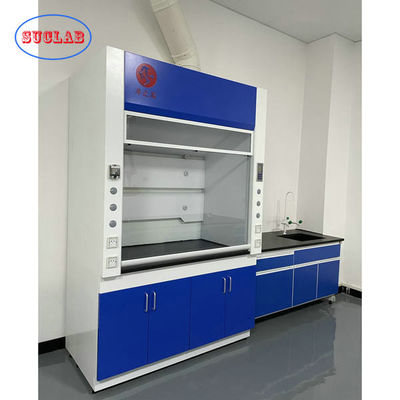

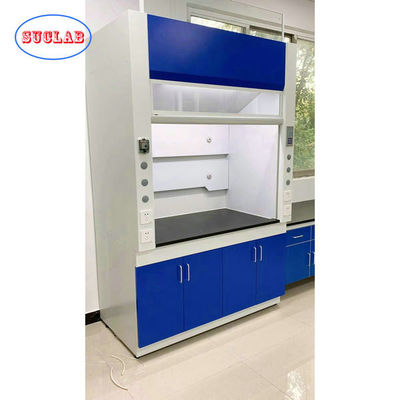

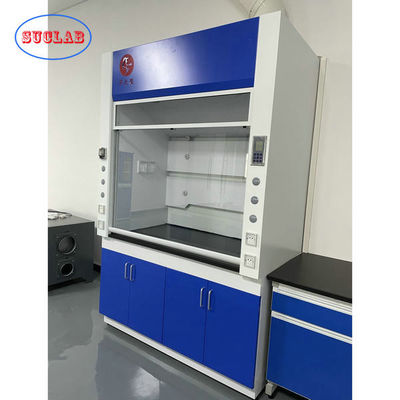

Dark Blue Laboratory Fume Hood With Lower Noise Blower For Ventilation System
Definition
Laboratory Fume Hood is the most commonly used local exhaust equipment in the laboratory.
There are many types. Due to the different structures and different conditions, their exhaust effects are different.
The performance of the fume hood is mainly depending on the speed of the air moving through the air -to -pass cabinet air.
Working Principle
The fume hood can effectively exclude the harmful gas generated during the experiment after the ventilation system of the laboratory to protect the safety of the experiments.
The laboratory fume hood must be set up and the bypass system must be set to control the form of the airflow in the cabinet and the airflow distribution at the opening.
The fume hood moved the door with a bypass hole. When the door moved, the bypass hole was turned on, so that the external air was supplemented in the cabinet to maintain the surface wind speed, maintaining the balance between the indoor ventilation system and the gas consumption of the fume hood, and hindered The surface wind speed caused by the decline in the door moved to avoid the impact on the operator.
Technical Parameter
| Technical Parameter | |
| Product Name | Laboratory Fume Hood |
| Product Brand | SUCLAB |
| External Dimention(W*D*H) | W1200*D850*H2350mm |
| W1500*D850*H2350mm | |
| W1800*D850*H2350mm | |
| Main Material | 1.0mm thickness cold rolled steel plate |
| Inner Liner Panel | 5mm anti-double plate, acid and alkali resistance. |
| Sash | Aluminum frame with 5mm thick tempered glass |
| Operation Table | 12.7mm phnelic resin or 16mm epoxy resin |
| Control Panel | Semi touch screen panel |
| Light | 1pcs of LED light, 40LUX |
| Exhaust Hood | PP Board,Φ250mm /Φ315mm |
| Air Flow Speed | According to the blower |
| Base Cabinet | 1.0mm thickness cold rolled steel plate |
| Hinges of the door | 304 stainless steel,maximum opening angle of 180° |
| Handle | 304 stainless steel hidden handle |
| Foot | 4pcs rubber nylon adjustable foot |
| Fitting | Water tap,pp sink |
| Sockets | 4pcs 220V/10A electronic sockets |
Why Choose Us
1. Our Factory was established in 2010.It has ten years of production experience.
2. We have well laser cutting machine and automatic bending machine.
3. We have strong sales team and professional designer in foreign trade.
4. We have professional intallation service and three years warrenty.
5. We will customize product and give the better solution according to your requirement.
FAQ
1. What is Minimum Order Quantity?
At least 1 set/sets
2. Do you have products in stocks?
Yes, Laboratory fume cupboard, base cabient, storage cabinet and fitting.
3. How long is delivery time of goods?
At least 7 or 15 workdays after receiving the deposit.
4. What are the payment methods?
50% deposit in advance by T/T, 50% balance before delivery by T/T.
5. How long is the warranty?
About 2 years after delivery.
6. Do you provide overseas installation services?
Yes, we will arrange professional installer to install the goods according the requirement of our customers.
