Place of Origin:
Guangdong,China(Mainland)
Brand Name:
SUCLAB
Certification:
ISO 9001,ISO 14001,OHSAS 18001
Model Number:
HUAZHIJUN-185

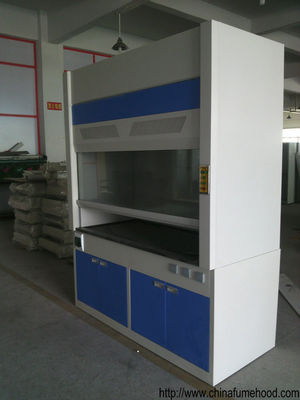

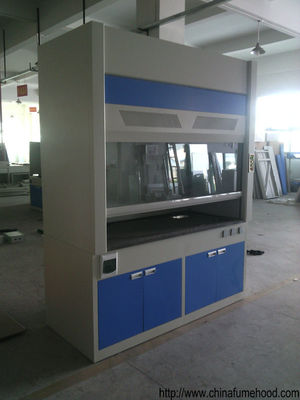

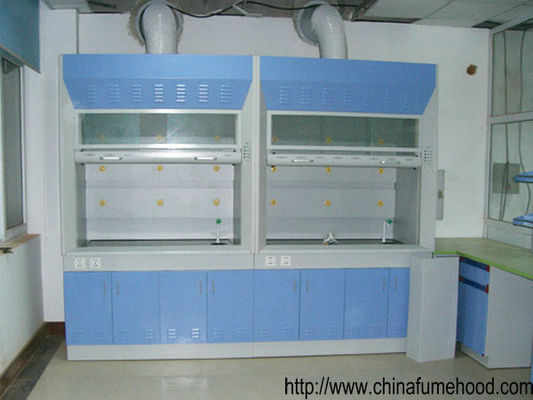

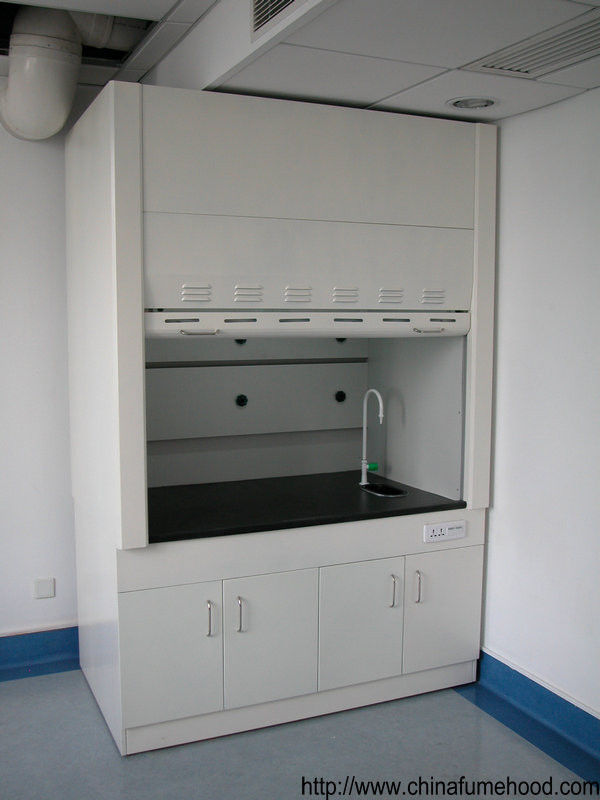

Series Chemical Fume Hoods For Factory,Hospital and School Laboratory
Descriptions of Series Chemical Fume Hoods:
| Product Name | Series Chemical Fume Hoods |
| Material | All Steel |
| Size | 1200*800*2350MM,1500*800*2350MM,1800*800*2350MM |
| Bench Tops |
Using 12.7mm thickness solid physiochemical board table, can resist acid and alkali, wear and high temperature; the edge part adhesive processing with providing a waterproof edge, and the color of table is black. |
| Cabinet |
1.The upper box molding with 1.2mm thickness cold rolled steel plate bending and welding,the surface of epoxy powder electrostatic high-pressure spray, can resiste acid and alkali. 2.The lower box molding with 1.5mm thickness cold rolled steel plate bending and welding, the surface of epoxy powder electrostatic high-pressure spray, can resist acid and alkali. |
| Inner Liner | Using HPL physiochemical board to make for lining plate and the flow guide plate. |
| Windows | Using 5mm thickness tempered glass,continuously variable counterweight design,window lift freely, can stop at any position. |
| Power Distribution | Choose Zhejiang CHINT senior socket,the specifications for rated current 16A three holes socket, 10A five holes socket, 25A/380V four holes socket. |
| Air Exhaust | Design of third level air exhaust,no exhaust dead,air volume can be adjustable,the speed of surface wind can be up to 0.5m/s. |
| Lighting | 30W or 40W Fluorescent lamp lighting with hidden type. |
| Functions | The cabinet body is provided with a leakage, overload, short circuit automatic protection device,and is equipped with the fan control system, practical and safe. |
| Sink | 6mm thickness imported PP material with pressure, corrosion resistance and high temperature performance. |
| Water Faucet | Ventilation cabinet special single water faucet, with anti-corrosion performance,imported. |
| Hinges | 90 degrees, 180 degrees adjustable hinge, Guangzhou produced high-qualityhinge. |
| Adjustable Footing | Stainless steel with rubber adjustable feet,adjustable height to 50mm. |
| Working Door Opening Height | 800mm~1000mm |
