Multifunctional Lab Fittings , portable Emergency Eyewash Shower

Multifunctional Lab Fittings , portable Emergency Eyewash Shower

Multifunctional Lab Fittings

Lab Fittings Eyewash Shower

Portable Emergency Eyewash Shower

Place of Origin:

China

Brand Name:

SUCLAB

Certification:

SEFA SGS ISO9001 ISO14001 OHSAS

Model Number:

Standard

Contact Us
Request A Quote
Product Details
Color:
Gray, White And Grey, Customized, White, Black
Warranty:
3-8 Years,
Material:
304 Or 316 SUS SS
Size:
Standard
Application:
Research Institution, Chem Laboratory, Chemical Lab, School
Body:
304 Or 316 SUS SS
Structure:
304 Or 316 SUS SS
Highlight:

Multifunctional Lab Fittings

,

Lab Fittings Eyewash Shower

,

Portable Emergency Eyewash Shower

Payment & Shipping Terms
Minimum Order Quantity
3 pcs
Price
negotiation
Packaging Details
Export Packing
Delivery Time
1 5working days
Payment Terms
TT LC, Western Union
Supply Ability
more than 10000 pcs per month
Product Description

Portable Laboratory Accessories Laboratory Fittings Lab Emergency Eyewasher & Shower Station







A .Product Description



Product name Safety Emergency Body Shower Eye Wash Station
Model NO. SUCLABE 005
Main Material 304 Stainless steel (carbon steel or ss316L is optional)
Water Supply and Outlet G1" (Can be customized according to the requirements of customers)
Original Water Clean or leached water
Flow control Eyewash flow≥12L/Min, shower flow≥75.5L/Min
MOQ 1 piece
Certification ISO9001/CE
Payment term T/T or L/C
Funcation eye wash and shower
The gross weight 14kg
Net weight 13kg
Main Pipe DN42mm
Product size 700mm*300mm*2240mm
Packaging export standard carton
B . Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SUCLAB
Type:
Laboratory Emegency Shower Eye Wash
Materail:
SUS 304
Total Height:
Standard
Spray Head:
Soft Rubber Or Stainless Steel
Surface Treatment:
Polish or High Gloss Epoxy Powder Coat
Max Working Pressure:
7bai/100psi
Min Workting Pressure:
2.9bai/29.4psi
Weight:
15kgs
Inlet Pipe Size:
DN25
Outlet Pipe Size:
DN25





C. Technical Data:



1. Use medium: it meets the standard of health standard.
2. Main material: special SS304 stainless steel, which conforms to national standard, has good corrosion resistance of acid, alkali, salt and oil

3. Anticorrosion coating: use outdoor special ABS powder electrostatic spraying to effectively improve the corrosion of acid, alkali, salt and oil chemicals in the product.
It is suitable for use in environments with high acid and alkali concentration and strong corrosivity.

4. Low eye switch way: hands and feet, using only a light push push valve or on waste pedal, eye switch is open, clean water is automatically from eye nozzle jet, nozzle peripherals dust cover, when used with flow automatically.
After the shut-eye switch is opened, the non-man will operate and will not shut 5.utomatically. Please turn off the switch and reset the dust cover when used

6. The characteristics of the shower switch: the heavy two - plate switch is adopted.

7. Eye nozzle: eye nozzle built-in multi-layer filter, effectively filter the impurities in water, the water flow into a foamy water, effectively prevent the impurities in water, or to the injured eye due to water flow ultra secondary damage nerve and the injured area.
The filter screen is easy to remove, easy to clean and easy to maintain.

8. Low freeze protection: this product is equipped with high-performance emptying anti-freezing device, suitable for more than 5 ℃ below zero environment, use washing eyes closed after the switch, the system automatically drain water accumulation in the pipeline.
Such as 5 ℃ below zero the use should pay attention to the following pipe insulation anti-freezing measures.

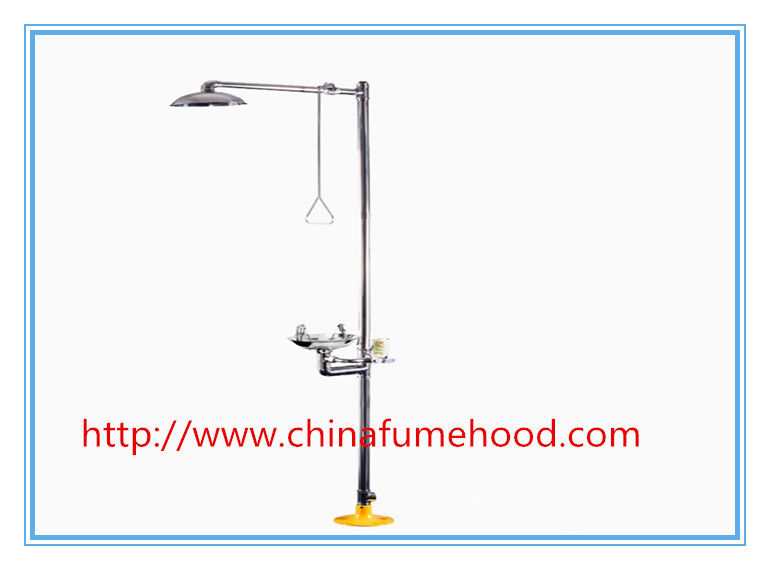

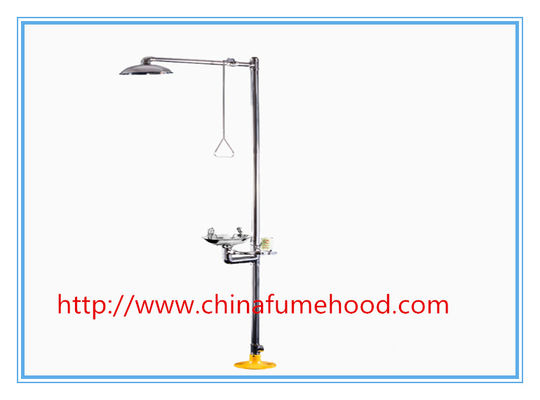

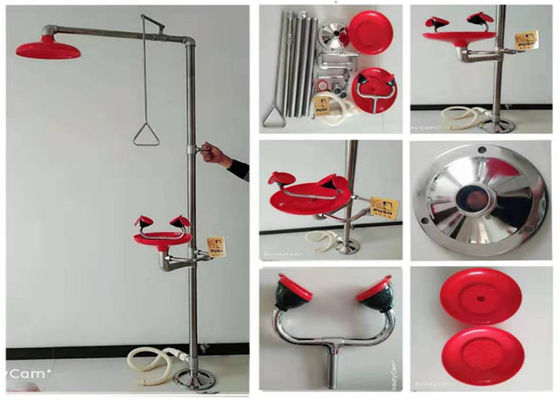

D . Photo:



Multifunctional Lab Fittings , portable Emergency Eyewash Shower 0
