Product Details
Place of Origin: Guangdong,China(Mainland)
Brand Name: SUCLAB
Certification: SEFA SGS ISO9001 ISO14001 OHSAS
Model Number: HUAZHIJUN-363
Payment & Shipping Terms
Minimum Order Quantity: 1 Pieces
Packaging Details: Normal Export Cartons
Delivery Time: 15 Days After Receiving The Deposit
Payment Terms: T/T, Western Union, L/C
Supply Ability: 3000 Pieces Each Month
Worktop: |
Stainless Steel, |
Application: |
Research Institution,, Industrial Lab, Chemistry Lab/Physics Lab/Biology Lab/School/Research Institute, Lab And Pharmaceutical Worktop |
Accessory: |
Cup Slot, UV Light, Water Faucet, Socket And Etc |
Color: |
Natural |
Matarial: |
304/316 Stainless Steel |
General Use: |
Commercial Furniture |
Type: |
Clean Room |
Size: |
Standard |
Worktop: |
Stainless Steel, |
Application: |
Research Institution,, Industrial Lab, Chemistry Lab/Physics Lab/Biology Lab/School/Research Institute, Lab And Pharmaceutical Worktop |
Accessory: |
Cup Slot, UV Light, Water Faucet, Socket And Etc |
Color: |
Natural |
Matarial: |
304/316 Stainless Steel |
General Use: |
Commercial Furniture |
Type: |
Clean Room |
Size: |
Standard |

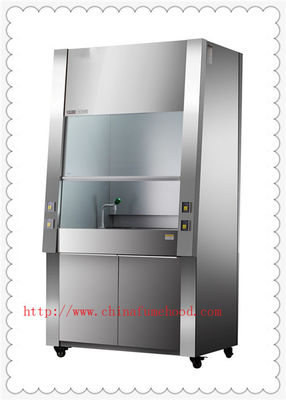

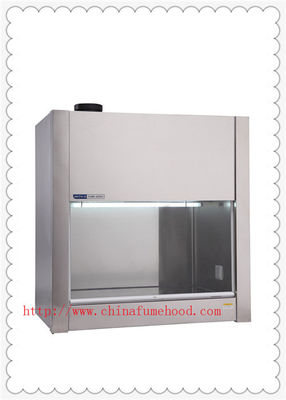

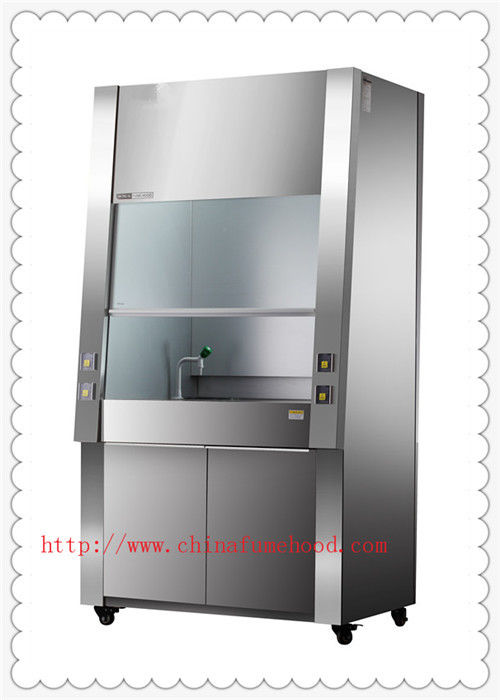

The Cheapest Stainless Steel Fume Hood 304 Stainless Steel Lab Fume Cupboard
1. quick Details:
2. Descriptions:
| Product Name | Fume Hood |
| Size | 1200/1500/1800x800x2350 or customized size |
| Material |
304 /316 Stainless Steel Steel FRP Polypropylene |
| Surface Finish | 304/ 316 stainless steel or high temperature epoxy resin powder spraying and baking finish |
| Lining Board | 5mm thickness of phenolic resin board, acid & alkali resistant, equipped with maintenance circuit, gas path. |
| Lighting | energy saving light hidden in top ceiling, not directly contact with the air in the fume hood, easy to be replaced, explosion proof lighting, 30W x1 |
| Control Panel | multi-function socket, lighting , fan and fan valve control |
|
Work Top |
304 / 316 Stainless Steel or Solid Phenolic Resin board / Epoxy Resin board /Compact board/Ceramic Thickness 13/16/19mm, the edge use catcher 26mm (optional) equipped with PP drip cup ,one-way tap & one-way gas |
| Distribution Box | 220V/380V, equipped with leakage & motor protection device |
| Front Window | Made up of 5mm tempered glass sash, it can move up and down , stop at any position, |
| Craft Procedure | All steel plate welding after epoxy resin powder figure, visual levels without welds, all water, electricity and gas path are safe and convenient for concealed installation in a maintenance hole. |
| Open Height | 0~800mm |
| Airflow Rate | 1080—1700m3/h |
| Power | AC220V—380V/0.09—4kw |
| Face Velocity | 0.4—0.6m/s Noise :<60db |
