Split Type Chemical Lab Hood 1750m3/H Air Volume Stainless Steel Material
Product Details:
| Place of Origin: | China |
| Brand Name: | SUCLAB |
| Certification: | SEFA SGS ISO9001 ISO14001 OHSAS |
| Model Number: | standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Export Packing |
| Delivery Time: | 1 5working days |
| Payment Terms: | TT LC |
| Supply Ability: | more than 10000 pcs per month |
|
Detail Information |
|||
| Material: | 304stainless Steel | Size: | Customized Made |
|---|---|---|---|
| Color: | White | Country: | China |
| Gurrantee: | 1 Year | Blower: | Pp Blower |
| Power: | 0.3 Kw | ||
| High Light: | Split Type Chemical Lab Hood,Stainless Steel Chemical Lab Hood,1750m3/H Stainless Steel Fume Hood |
||
Product Description
Split Type Stainless Steel Fume Hood , 1750m3/H Air Volume Chemical Fume Hood
Descriptions of Used Fume Hoods:
1. Exhaust system: The exhaust collar connects the fume hood to the exhaust duct.
2. Fume Hood (fume cupboard & fume cabinet): Exterior materials: Quality ventilation cabinet were made of 304 stainless steel plate.
3. Interior materials: All interior surface of fume hoods are made of chemical resistant plate, it was developed to have excellent chemical- resistance and anti high temperature.
4. Sash: The full view vertical raising sash is manufactured of laminated safety glass with the sash set into an extruded, low turbulence PVC track that delivers smooth operation and steady sash positioning.
5. Worktops: Equipped with phenolic resin, epoxy resin, stainless steel board or ceramics to meet your specific needs.
6. Baffles: Made up of three parts, which can make the exhaust controlled and take away.
7. Lighting: 30W lighting and switch, which can make the worktop to have the 450LUX lighting standards.
8. Power: Multi-function power plug.
9. Lab fittings: Equipped remote control valve and cup sink.
10. Depending on the fume hood size, there may be one or two collars of either 200mm or 315mm diameter.
11. Exterior Dimensions: 1200/1500/1800*800*2400mm
12. Air Volume: 1750m3/h (1500*800*2400mm)
| Item no | HZ12/15 |
| The amount of discharge wind | 700-1500m3/h |
| Operating hole wind speed | 0.3-0.7m/s |
| Resistance | 5-12mmH2O |
| Operating hole size |
HZ2 900×900mm HZ15 1200×900 mm |
| external size | HZ12 1200×800×2350 HZ15 1500×800×2350 |
| Gate opening form | High and low on rollers |
| Illumination | 20W daylight lamp |
| Structural style | Split type |

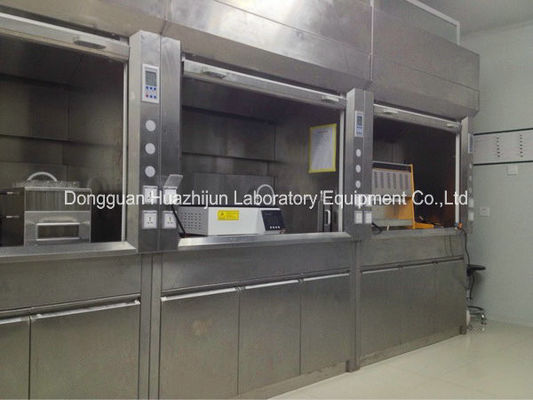

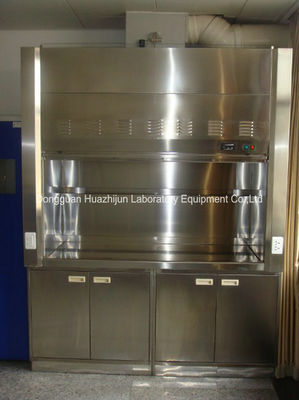

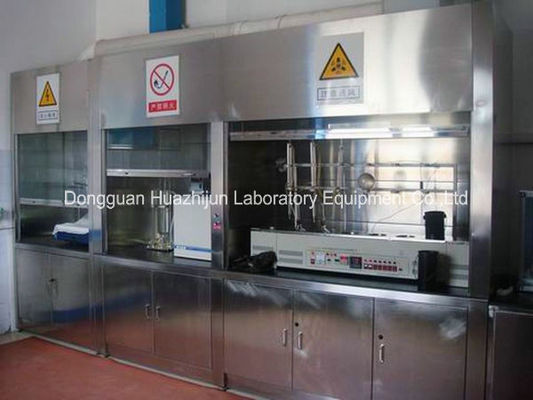

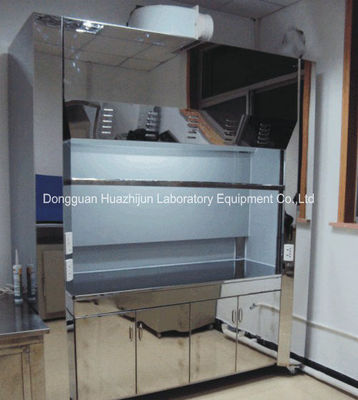

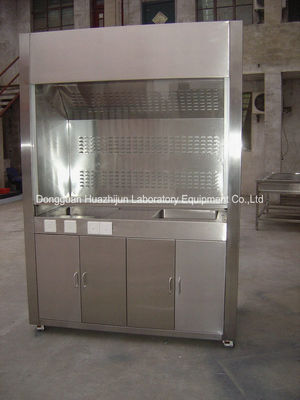

Photos of Used Fume Hoods:
