Place of Origin: | China |
Brand Name: | SUCLAB |
Certification: | SEFA SGS ISO9001 ISO14001 OHSAS |
Model Number: | standard |
Fume Hood Design | Fume Hood Design and Customization | Fume Hood Design and Production
Descriptions of Fume Hood Design:
Product Name | Fume Hood Design |
Material | PP Structure |
Size | 1200*800*2350MM,1500*800*2350MM,1800*800*2350MM |
Cabinet | Use 8-10mm thick white porcelain imported PP plate making,excellent corrosion resistance, the seamless welding test is complete, ensure the firmness and sealing. |
Integration Points Cover | Use porcelain white PP board into the cone shrinking Integration Points Cover. |
Door of Cabinet | Use 8-10mm white porcelain imported PP plate making, hinge, door handles, screws and other accessories are all PP materials, effectively prevent local from corrosion. The door design ventilation shutters, can effectively promote the air flow in the cabinet. |
The top of Cabinet | The design has 6 "vent, which can be connected with the main ventilation pipeline. |
Window | 5mm thickness transparent PVC borad. |
Worktop | Use 8-10mm thickness white porcelain imported PP plate making, designed to double the catchment structure. Physicochemical board and Wilsonart ceramic table, epoxy resin table or solid core can be optional. |
Lighting | Full cover type fluorescent lamp 120/150 type 30WX1180 type 40WX1. |
Power Sockets | AC220V, 10A4 only, the total power switch and standby switch each one. |
Control System | The control power supply, fan, air adjusting valve, lighting etc. |
Descriptions:
1. Upper cabinet:
The main frame is made of porcelain white PP (polypropylene) plate, which is welded with the same color welding rod.Acid-proof alkaline can be excellent, and the weatherability is excellent.The top is designed with top cover type exhaust gas, the guide plate is made of homogeneous PP material, and the acid and alkali can be excellent.The installation dimensions are scientific and reasonable, without airflow dead Angle, obtain the maximum exhaust gas capture performance.
2. Operation table:
The ventilation counter surface is designed with the overall welding design of the upper cabinet body. The human bit operation face is equipped with water prevention and overflow treatment, and the countertop can be equipped with other materials according to customer needs.The upper tank is configured according to the user's requirements.
3. Lower cabinet:
The storage cabinet is made of porcelain white PP (polypropylene) plate, and the bending process makes the columns form "square tube structure" and "T" type structure, which can get good load-bearing capacity.
4. Mobile door: without a paragraph design, feel light
A. operation window: made of 5mm toughened glass with excellent acid resistance.B. adjust the door border: it is a grey PP c groove with embedded combination to ensure safety and durability.C. Adjust the steel cable of the door: each cabinet shall adjust the steel cable connection.D. adjust the balance of door balance: design of PP material with heavy box.
5. Circuit equipment:
A. switch: the integrated controller panel with liquid crystal display function is adopted to visualize control parameters, including fan switch, lighting switch and total power supply switch.B. Socket part: each fume hood shall be equipped with a splash cover of 220V10A power socket 2.
6. Other accessories:
Door handle: alkali resistant PP material (color optional: blue, magnetic white, light grey, dark grey)
Door hinge: alkali resistant PP material (color optional: blue, magnetic white, light grey, dark grey)
Gas cap: resistant and alkali resistant PP material with 250MM outlet (outlet size can be customized according to demand)
Guide clamp: resistant to acid and alkali PP material (color optional: blue, light grey, black)
Sliding wheel: PP silent pulley, small friction, anti-corrosion resistance.

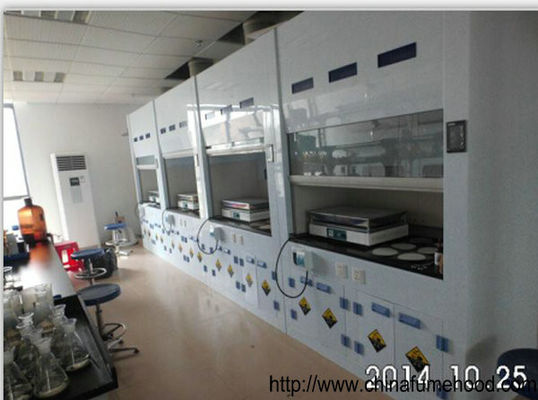

PHOTOS:
