Wholesale Anti-Scratch Acid Proof Laminar Air Flow 304 stainless steel fume hood with Ce Certificate

Wholesale Anti-Scratch Acid Proof Laminar Air Flow 304 stainless steel fume hood with Ce Certificate

Product Details:

Place of Origin: CHINA
Brand Name: SUCLAB
Certification: ISO9001: 2008 ISO14001:2004 OHSAS18001:2007 SGS SEFA
Model Number: HUAZHIJUN-168

Payment & Shipping Terms:

Minimum Order Quantity: 5Piece
Price: Negotiation
Packaging Details: EXPORT PACKING + PLYWOOD
Delivery Time: 15 WORKDAYS
Payment Terms: EXW,T/T
Supply Ability: 3000 Pieces Each Month
Get Best Price Contact Now

Detail Information

Color: Blue,black,gery And White(optional) Worktop: Phenolic Resin Or Epoxy Resin Or Ceramic
Frame: H-frame Size: 1500*850*2350
Moq: 5pcs Type: Lab Fume Hood
Shipping: Usually By Sea Delivery Date: 15days
Function: Chemical Resistance,explosion Proof Worktop: Epoxy Resin,Ceramic,12.7mm Phenolic Resin Board,Phenolic Resin Worktops
Material: Full Steel Size: Standard
Color: Grey, White Window: 5 Mm Thickness Tempered Glass
Blower: Pp Anti Corrosion Function: Anti Corrosion , Acid And Akali Resistant

Product Description

Wholesale Anti-Scratch Acid Proof Laminar Air Flow 304

Stainless Steel Fume Hood With Ce Certificate





304 Stainless Steel Fume Hood With Ce Certificate Overview:







Fume hood is the most commonly used in the laboratory of a local exhaust equipment, a wide range, because



of its different structure, the use of different conditions, the exhaust effect is not the same. The good performance



of the fume hood depends mainly on the speed of air movement through the fume hood







304 Stainless Steel Fume Hood With Ce Certificate Product Specifications:









Structure
Table Top
Standards
Design and test by SEFA, Ashrae, SGS Standards
Worktop
Epoxy Resin/ Phenolic Resin/Stainless Steel/Ceramic Work Top,

Thickness options: 16 mm/19mm/20mm/25mm,

Color options: Black/ Light Grey/ Light Blue / Green/ White or Customized
Other required worktop available
Cabinets
Full Steel, PP, or as your need
Slideway: Self-closing,three section slide rail,full extension,noiseless
Handle: H-shape or embedded type,aluminum alloy handle with epoxy coating or stainless steel
Choice of Pull Styles:Flush Full width pulls are standard. Optional pulls in a variety of styles are also

available.
Wrap Around Cabinet Body Construction: The sides, back and outside corner posts of each cabinet are made from one sheet of 18-gauge cold rolled steel to provide maximum strength and eliminate the need for an applied finished back.
Powder Coating:
applied imported epoxy powder coating provides reliable
chemical and abrasion resistance. Wide variety color available
Steel Finish
Environmentally friendly, electronically applied powder coat finish
Laboratory grade formulation meets all SEFA 8 chemical requirements.
Reagent Shelf
The column is made of 100*50mm supporting bar with 1.5mm thickness with support bracket
Shelves are made of 10mm thickness tempered glass which is height adjustable according to different requirement
Options for Shelves: 12.7mm Phenolic resin/ 16mm epoxy resin worktop panel.
Socket
Electric sockets, electric circuit breakers and the telephone and computer outlets are located on this

electrical trunking made of PVC and anchored to the shelf vertical supports
Sink/Faucet
Available as required
Accessories
Available as required
Service Column
Available as required

















304 Stainless Steel Fume Hood With Ce Certificate FAQ:





Q1 . Why choose us?


A1 . We are the leading laboratory products supplier , OEM ODM service are offered.

Q2 . How about the sample?


A2 . We could send you the samples but the freight is collect.

Q3 . How about the payment term?


A3 . T/T & L/C ( 30 % deposit , the balance before shipment ).

Q4 . How about the delivery time?


A4 . Within 7-15 workdays after receiving deposit.

Q5 . How about the package?


A5 . Wooden crating or carton.

Q6 . How to inspect the goods?


A6 . Products will checked by our QC staff first , then our proejct manager . Client



can come andcheck by themselves or by the third party.



304 Stainless Steel Fume Hood With Ce Certificate Features:



Structure:


Made of thickness 1.0mm thick 304 type stainless steel sheet(or made of ≥1.2mm cold-rolled steel steel)

for the out layer, steel surface treated by acid-alkali-resistant and coated with epoxy resin powder. The inner

layer is the anti-corrosion material.


Lining:


Lined with 5mm thick compact board (chemical resistant), segmented design, air flow pressure is maintained

smoothly by teardrop-shaped baffle in accordance with aerodynamic principles.

Working surface:


Covered epoxy resin countertops or ceramic worktops with thickness ≥19mm, and the outer edge of not less

than 25mm. The recessed 5mm inside disc design will collect splashes things. With high performance of anti-heat,

chemical resistant.

Visual Windows:


Use 5mm tempered explosion-proof glass. lnternal uses of pituitary balancing device, can stay in any position

during 0~900mm. Closure equipped with a rubber buffer.

Lighting:


Equipped with two (15W) LED energy-saving lamp. Lamp mounted on the top of hood and quarantined by the

steam-proof glass cover inside the fume hood.

Transmission:


Windows Transmission system consists of a metal sprocket, plactis chains, synchronizing shafts and other

devices. Balancing system prevents sash tilting and can be one- hand controlled

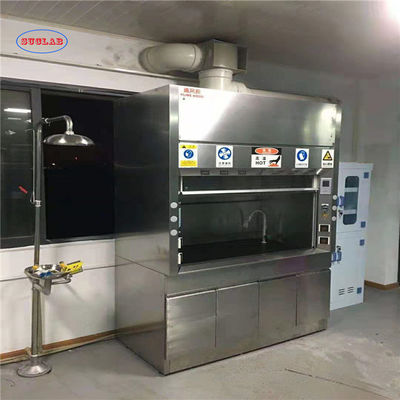

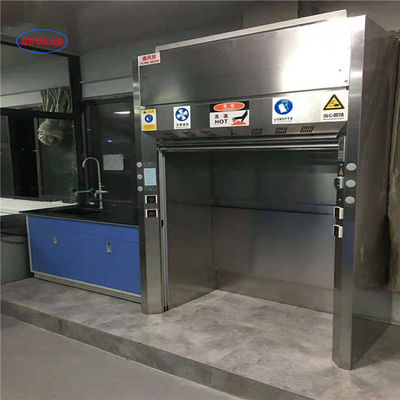

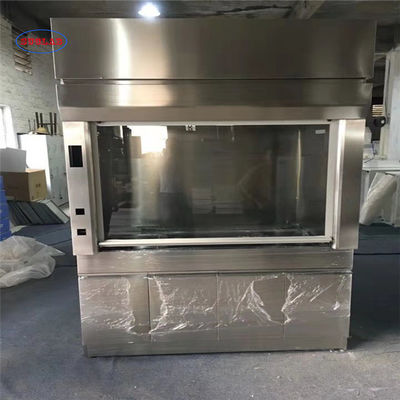

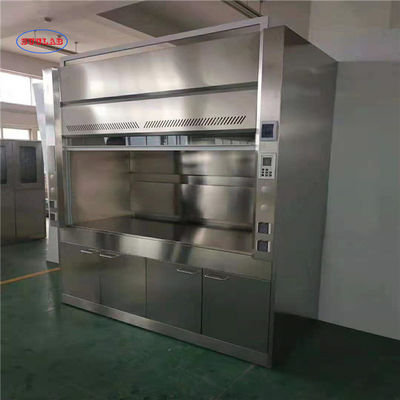

304 Stainless Steel Fume Hood With Ce Certificate Pictures:





Wholesale Anti-Scratch Acid Proof Laminar Air Flow 304 stainless steel fume hood with Ce Certificate 0





Wholesale Anti-Scratch Acid Proof Laminar Air Flow 304 stainless steel fume hood with Ce Certificate 1
