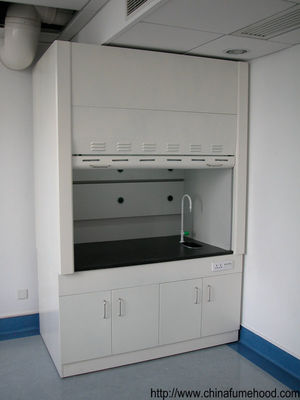

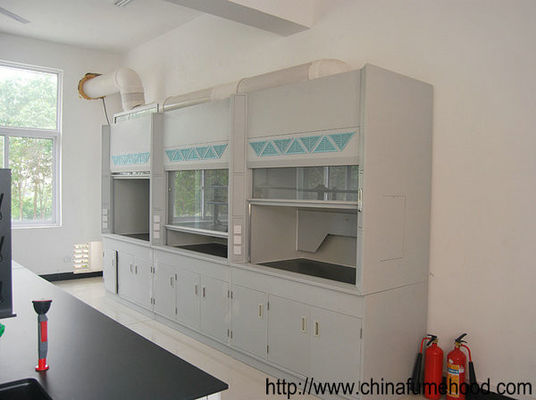

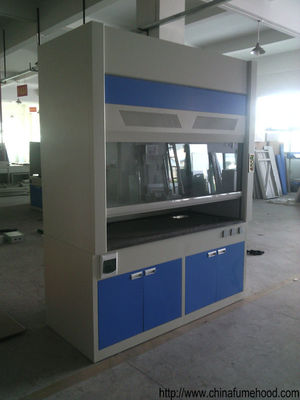

Physiochemical Floor Mounted Fume Hood , Height 2.35M Ducted Fume Cupboard Chemistry
SUCLAB Ducted Fume Cupboard have the characteristics of strong acid and alkali resistance and anti-corrosion.
It is appropriate for various of high clean laboratory, for example:
medicine laboratory, food laboratory, semiconductor laboratory, trace metal laboratory, biology laboratory,
and it is widely applied in chemical, medical, vehicle, steel factory, university and scientific research institution, etc.
SPECIFICATION:
Cabinet: used 1..0 mm thick of cold-rolled steel sheet production.all the steel parts by pickling,
phosphatizing treatment surface by the epoxy resin powder coating .
Working Tops: Laminated / Phenolic Resin/ Epoxy Resin/ Stainless Steel / Ceramic/Marble .
Sash: With blast proof glass lined with glue for the front viewing window,
the glue sticks the broken glass in case of glass breaking, to ensure the safety of the operator.
Baffle: Electronically controlled center flowing guide can be adjusted with its mouth size according to the amount of smoke,
to ensure a free smoke driving away.
Electronical Control Panel: set up to the front face for easy operate.
The applying of touching switches upgrade the product class degree to automatic control level.
Hinge: DTC105º alloy hinges / 304 # stainless steel hinges
Sink: Imported PP integrate molded sink to be acid and alkali resistance.
Faucet: single water faucet in white color,faucet mouth is made of brass in fairly sharp shape.
Other Accessories:
- Modular electric sockets panel and control devices
- Removable painted metal plugging (outside)
- Two tubes fluorescent lamp (LED on request)
TECHNICAL DATA:
| Model | SUCLAB-1200 | SUCLAB-1500 | SUCLAB-1800 |
| Size(W*D*H) | 1200*850*2350mm | 1500*850*2350mm | 1800*850*2350mm |
| Average Wind Speed | 0.3-0.6m/s adjustable | ||
| Noise Level | < 60dB(A) | ||
| Exhaust air rate | 1500-3000m3/h | ||
| Opening height | 20-750 mm | ||
| Luminance | >300LX | ||
| Power | 220V/50HZ | ||
| Motor power | 0.5-1.1KW | ||
| Socket | 10-15 | ||
| Remark | Remote control, sterilization etc, available | ||
SUCLAB Ducted Fume Cupboard is designed for strong corrosive chemicals, pharmaceutical storage and anti-leakage.
Applicable to a large number of drugs or drugs in the laboratory classification of orderly storage.
physiochemical-floor-mounted-fume-hood-height-2-35m-fume-cupboard-chemistry
Descriptions of Floor-mounted Ducted Fume Cupboiard :
| Product Name | Floor-mounted Fume Hoods |
| Material | All Steel |
| Size | 1200*800*2350MM, 1500*800*2350MM, 1800*800*2350MM |
| Bench Tops |
Using 12.7mm thickness solid physiochemical board table, can resist acid and alkali, wear and high temperature; the edge part adhesive processing with providing a waterproof edge, and the color of table is black. |
| Cabinet |
1. The upper box molding with 1.2mm thickness cold rolled steel plate bending and welding, the surface of epoxy powder electrostatic high-pressure spray, can resiste acid and alkali. 2. The lower box molding with 1.5mm thickness cold rolled steel plate bending and welding, the surface of epoxy powder electrostatic high-pressure spray, can resist acid and alkali. |
| Inner Liner | Using HPL physiochemical board to make for lining plate and the flow guide plate. |
| Windows | Using 5mm thickness tempered glass, continuously variable counterweight design, window lift freely, can stop at any position. |
| Power Distribution | Choose Zhejiang CHINT senior socket, the specifications for rated current 16A three holes socket, 10A five holes socket, 25A/380V four holes socket. |
| Air Exhaust | Design of third level air exhaust, no exhaust dead, air volume can be adjustable, the speed of surface wind can be up to 0.5m/s. |
| Lighting | 30W or 40W Fluorescent lamp lighting with hidden type. |
| Functions | The cabinet body is provided with a leakage, overload, short circuit automatic protection device, and is equipped with the fan control system, practical and safe. |
| Sink | 6mm thickness imported PP material with pressure, corrosion resistance and high temperature performance. |
| Water Faucet | Ventilation cabinet special single water faucet, with anti-corrosion performance, imported. |
| Hinges | 90 degrees, 180 degrees adjustable hinge, Guangzhou produced high-qualityhinge. |
| Adjustable Footing | Stainless steel with rubber adjustable feet, adjustable height to 50mm. |
| Working Door Opening Height | 800mm~1000mm |
Advantage:
1. Designed and manufactured as per US , the highest standard in this field.
which ensures safety performance of our fume cupboards and protect scientist from being harmed by toxic
or waste air.
2. Light belt transmission maintain the sash balance and stability with lifting force less than 0.5KG.
bring comfortable experience to each lab operator.
3. 1.0mm/1.2mm cold-rolled steel coated with Akzonobel epoxy powder, excellent anti-corrosion
performance.
4. Brand accessories of steel fume cupboard are part of integrated product quality.
5. Both CAV and VAV system available as customers' needs.VAV is designed to reduce at least 30%
engery consumption.
6. Various cabinets are available for options including floor standing/movable/acid storage/drug/fire
proof cabinet.
7. Excellent capabilities on offering customized fume hoods to meet needs of clients and local and
actual environment and working requirements.
Control panel:
1. LCD control panel which is capable of controlling ON/OFF of fume hood, lamp and fan. Shutdown time
can be set in advance.
2. French Digital controller showing face velocity,making alarm when encountering with unproper airflow
etc.
3. Top quality VAV system to protect safety of operators by keeping constant face velocity when the sash
is lifted up or down.
Remark:
1. PP pallets/drawers also can be added in base cabinet connecting with main exhaust ventilation system.
2. Duct and a variety of fans are available if required by customers.
3. We offer dismantled fume cupboard with economical strong packing helping customer save transport&packing
cost.
4. Floor standing/movable/acid storage/Fire proof/drug cabinet etc are available for your option.
5. Pls tell us if you have any special requirements.

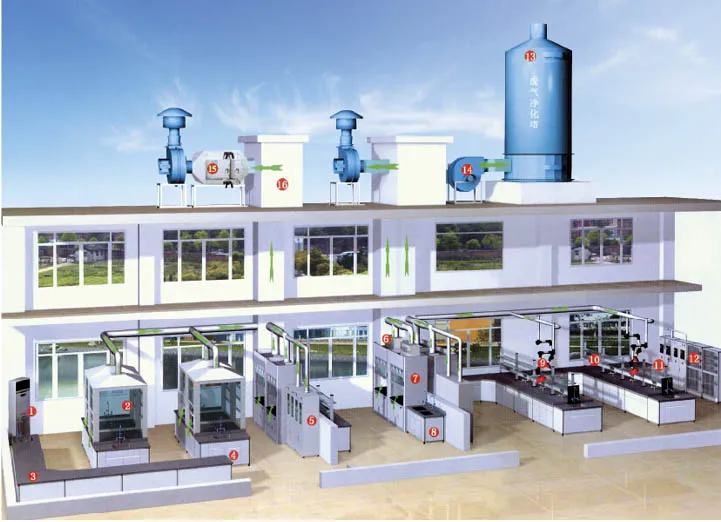

Sample of fume cupboard ventilation system:
