Laboratory Fume Hood
>
School / Hospital Lab Fume Hood 2.35m Height Epoxy Coated Surface

School / Hospital Lab Fume Hood 2.35m Height Epoxy Coated Surface

Product Details:
Place of Origin: China
Brand Name: SUCLAB
Certification: SEFA SGS ISO9001 ISO14001 OHSAS
Model Number: standard
Detail Information
Place of Origin:
China
Brand Name:
SUCLAB
Certification:
SEFA SGS ISO9001 ISO14001 OHSAS
Model Number:
standard
Material:
Metal
Material:
Full Steel
Size:
Standard
Color:
Grey, White
Window:
5 Mm Thickness Tempered Glass
Blower:
Pp Anti Corrosion
Function:
Anti Corrosion , Acid And Akali Resistant
Highlight:

High Light

Highlight:

laboratory fume cupboards

,

chemical ventilation hoods

Trading Information
Minimum Order Quantity:
1 pcs
Price:
negotiation
Packaging Details:
Export Packing
Delivery Time:
1 5working days
Payment Terms:
TT LC
Supply Ability:
more than 10000 pcs per month
Product Description

Customize High Quality Fume Hood For Chemical Factory,School and Hospital

Descriptions of Fume Hood:

Product Name Fume Hood
Material  All Steel
Size 1200*800*2350MM,1500*800*2350MM,1800*800*2350MM
Bench Tops

Using 12.7mm thickness solid physiochemical board table, can resist acid and alkali, wear and high temperature; the edge part adhesive processing with providing a waterproof edge, and the color of table is black.

Cabinet

1. The upper box molding with 1.2mm thickness cold rolled steel plate bending and welding, the surface of epoxy powder electrostatic high-pressure spray, can resiste acid and alkali.

2. The lower box molding with 1.5mm thickness cold rolled steel plate bending and welding, the surface of epoxy powder electrostatic high-pressure spray, can resist acid and alkali.

Inner Liner  Using HPL physiochemical board to make for lining plate and the flow guide plate.
Windows Using 5mm thickness tempered glass,continuously variable counterweight design, window lift freely, can stop at any position.
Power Distribution Choose Zhejiang CHINT senior socket, the specifications for rated current 16A three holes socket, 10A five holes socket, 25A/380V four holes socket.
Air Exhaust  Design of third level air exhaust, no exhaust dead,air volume can be adjustable, the speed of surface wind can be up to 0.5m/s.
Lighting  30W or 40W Fluorescent lamp lighting with hidden type.
Functions The cabinet body is provided with a leakage, overload, short circuit automatic protection device,and is equipped with the fan control system, practical and safe.
Sink 6mm thickness imported PP material with pressure, corrosion resistance and high temperature performance.
Water Faucet Ventilation cabinet special single water faucet, with anti-corrosion performance,imported.
Hinges 90 degrees, 180 degrees adjustable hinge, Guangzhou produced high-qualityhinge.
Adjustable Footing Stainless steel with rubber adjustable feet, adjustable height to 50mm.
Working Door Opening Height 800mm~1000mm

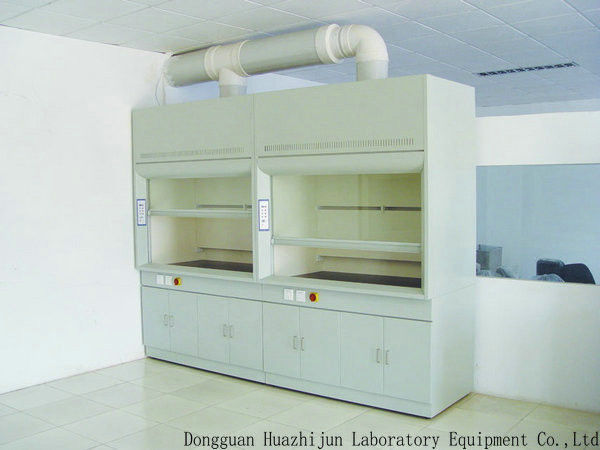

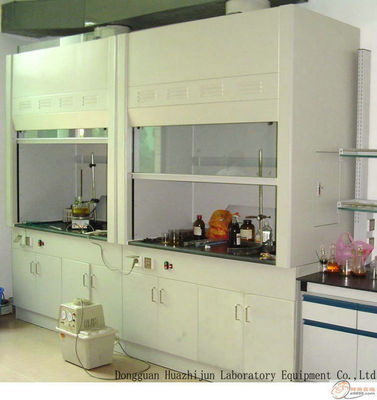

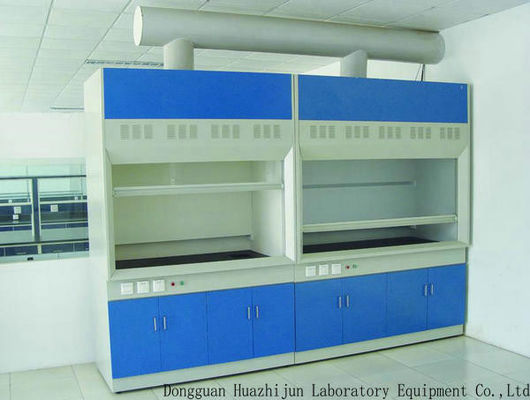

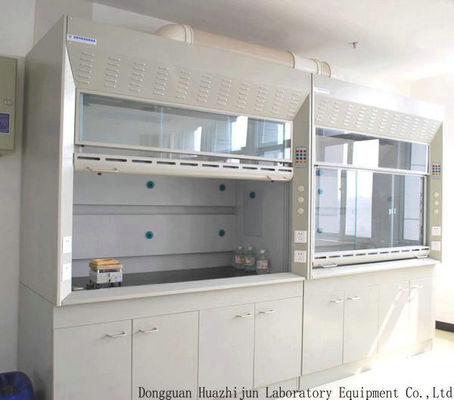

Phtos of Fume Hood:

School / Hospital Lab Fume Hood 2.35m Height Epoxy Coated Surface 0

School / Hospital Lab Fume Hood 2.35m Height Epoxy Coated Surface 1

School / Hospital Lab Fume Hood 2.35m Height Epoxy Coated Surface 2

School / Hospital Lab Fume Hood 2.35m Height Epoxy Coated Surface 3
